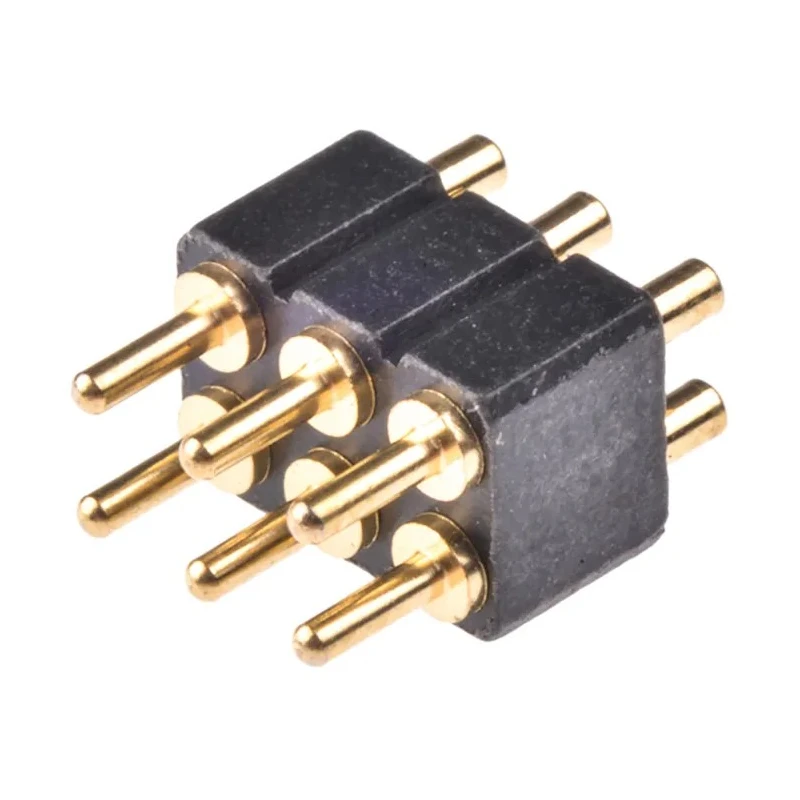

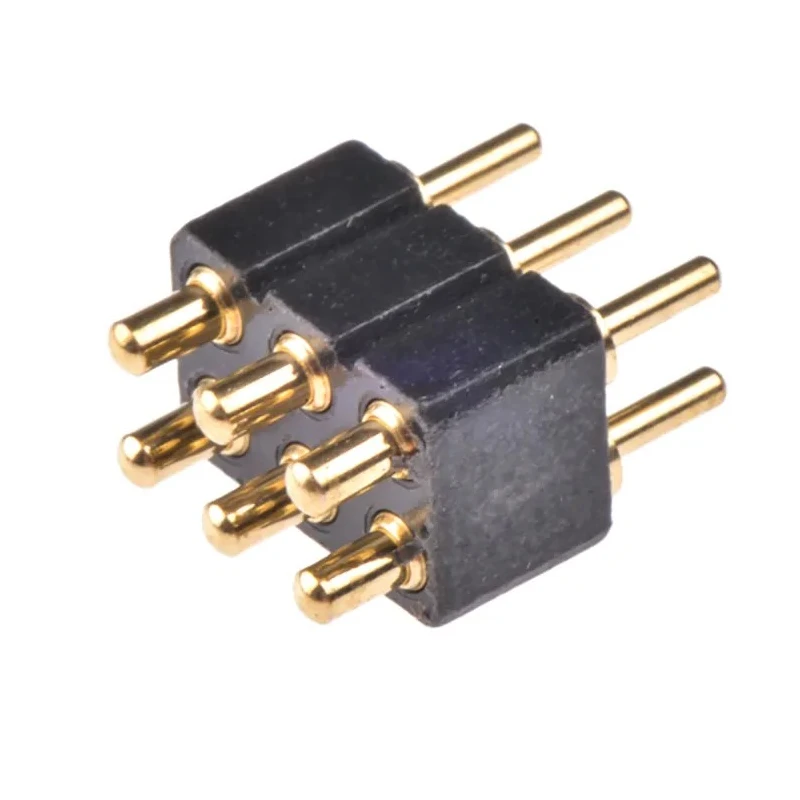

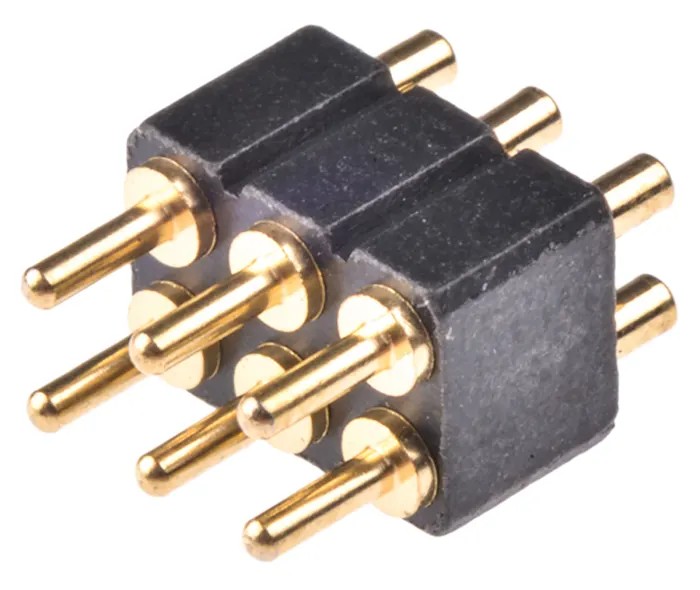

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector 6 Contacts 2.54 mm Pitch 2 Row 813-S1-006-10-015101

Preci-Dip 813-S1-006-10-015101 is a high quality spring loaded connector designed for use in electronic assemblies requiring reliable PCB connections with 6 contacts arranged in 2 rows.

This connector features spring-loaded contacts that offer excellent low and stable electrical resistance, even during vibration or movement, ensuring uninterrupted signal transmission. The contacts are made of brass and plated with gold for enhanced conductivity and corrosion resistance.

Its shrouded design protects the contacts, and the straight orientation facilitates easy insertion. The connector is mounted through hole on the PCB, which provides sturdy mechanical retention.

Operating temperature ranges from -55° C to 125° C, allowing use in demanding industrial and electronic environments. It supports a current rating of 3.5 A and a voltage rating of 150 V, making it suitable for power and signal applications.

The housing material is fiberglass reinforced polyethylene terephthalate, delivering robust mechanical strength and prolonged durability. The connector pitch is 2.54 mm, compatible with many DIL layout PCBs.

Offers low resistance with spring-loaded contacts for reliable electrical connection. Features a shrouded, straight orientation design to ensure contact protection. Supports through hole mounting for secure PCB installation.

Constructed with brass contacts plated in gold for durability. Operates between -55°C to 125°C suitable for a wide temperature range. Rated for 3.5 A current and 150 V voltage for efficient power handling. Includes 2 rows with a pitch of 2.54 mm, compatible with standard DIL layouts.

Housing made from fiberglass reinforced polyethylene terephthalate for mechanical strength.

This connector is ideal for applications in industrial, electronic component manufacturing, and other electrical assembly environments requiring dependable and long-lasting PCB connections.
