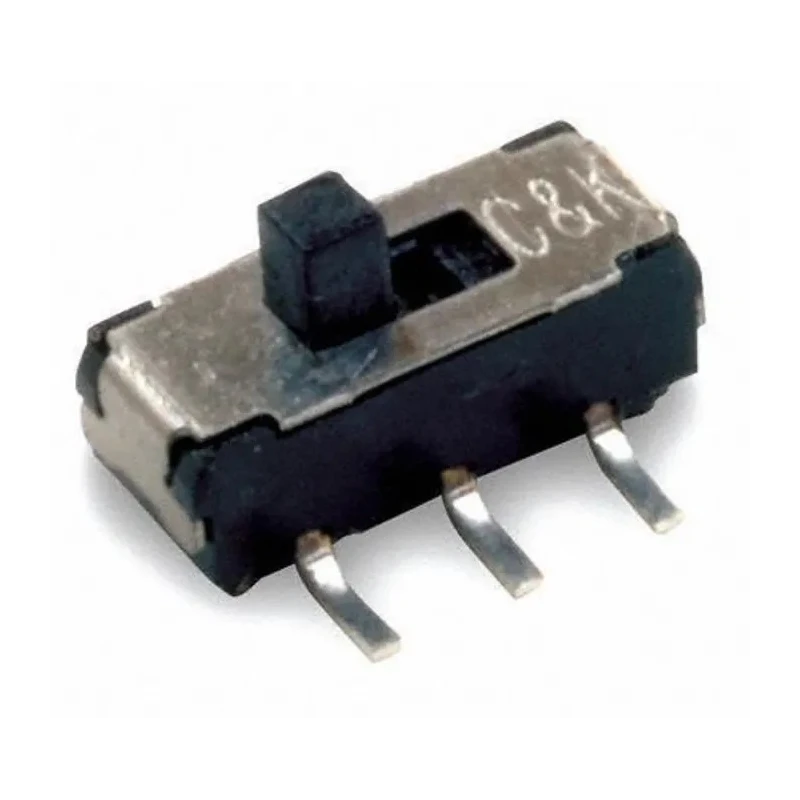

C & K Surface Mount Double Pole Double Throw (DPDT) Slide Switch Latching 300mA 6V DC Nylon Actuator JS202011SCQN

The C & K JS202011SCQN is a high-quality surface mount slide switch featuring a double pole double throw (DPDT) contact configuration designed for latching operation. This mechanical slide switch provides precise control over current flow in compact electronic circuits. The latching feature maintains the switched state without needing continuous user input, making it suitable for applications where stable circuit switching is essential.

With a contact rating of 300mA at 6V DC, this switch is optimized for low current DC circuits such as telecommunications, instrumentation, computer peripherals, and thermostat selector switches. The gull wing terminal type facilitates reliable mounting on printed circuit boards, promoting strong solder joints and robust electrical connection.

Mechanically, it offers a lifecycle durability of 5000 cycles, ensuring dependable long-term performance. The nylon actuator material delivers wear resistance and a smooth tactile feel during operation. Its compact form factor of 9mm length, 3mm width, and 5.5mm depth is advantageous for space-constrained industrial and laboratory equipment.

The switch meets important international standards including RoHS and UL, highlighting compliance with safety and environmental regulations. Its operation is reliable across a wide temperature range from -40°C to 85°C, allowing use in harsh or fluctuating ambient conditions.

Contact materials are selected with care; copper alloy contacts are silver plated to provide excellent electrical conductivity and resistance to oxidation, enhancing longevity and reducing contact resistance.

This slide switch is widely applicable in industrial automation, electronic instrumentation, telecommunication devices, and control panels requiring compact, reliable latching DPDT switching functionality.

Choose the C & K JS202011SCQN slide switch for your precise low power circuit switching needs in demanding environments. This slide switch features a double pole double throw contact configuration suitable for complex circuit control.

The surface mount design uses gull wing terminals for secure PCB attachment. The latching switch operation enables stable switching states without continuous force. Rated for 6V DC contact voltage and 300mA contact current, ideal for low power applications.

Constructed with a durable nylon actuator offering mechanical reliability through 5000 cycles. Compact dimensions of 9mm length, 3mm width, and 5.5mm depth allow for space-saving installations. The switch complies with RoHS and UL standards ensuring environmental and safety requirements.

Operating temperature range from -40°C to 85°C supports use in varied industrial environments. Contact materials include copper alloy with silver plating for enhanced electrical conductivity and corrosion resistance. Explore EnvMart’s comprehensive selection of Slide Switches for diverse industrial electrical and automation applications.
