SMC Pneumatic Solenoid Valve Pilot, 24V DC, 0.7 MPa Max Operating Pressure, G 1/8 Port Size, SY5000 Series

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Pilot, 24V DC, 0.7 MPa Max Operating Pressure, G 1/8 Port Size, SY5000 Series



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SY5000
Mount Type	Base, Body Ported
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Thread Size	1/8 in
Port Type	One-Touch Fitting
Port Size	G 1/8
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Pilot
Maximum Flow Rate	559NL/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	0.1MPa
Valve Function	Exhaust, Closed, 1 Action, Double Acting, Pressure Centre

Key Features

Features a compact, lightweight die cast aluminium body optimized for base, body ported mounting.
Includes 5 ports with G 1/8 size and one-touch fittings for easy connection.
Operates with rubber seals ensuring durability and compliance with RoHS standards.
Designed for pressure centre valve function with exhaust, closed, one action double acting valve type.
Suitable for operating temperatures ranging from -10°C to 50°C.
Minimum pilot pressure required is 0.1 MPa allowing low pressure actuation.
Maximum flow rate capacity of 559 NL/min supports efficient pneumatic flow.

Product Description

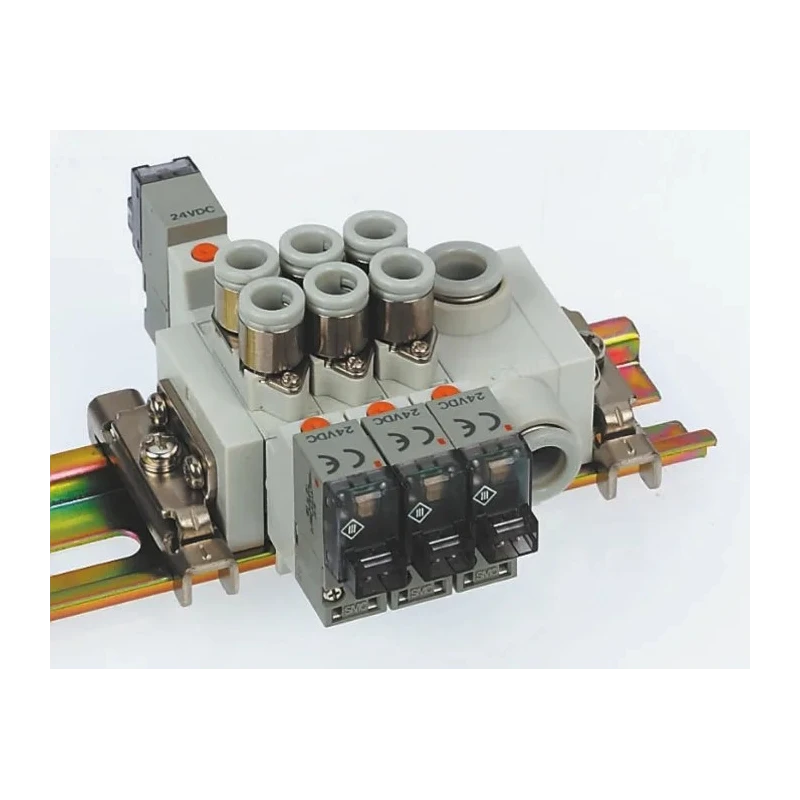

SMC brand presents the SY5360-5LOU-01F-Q pneumatic solenoid valve pilot from the SY5000 Series, engineered for precise and efficient control of pneumatic flow in industrial environments.

This valve features a durable die cast aluminium body with a compact and lightweight design, configured for base, body ported mounting style. It offers 5 ports with a G 1/8 port size and convenient one-touch fittings that allow quick and reliable connection in pneumatic circuits.

The valve functions as an exhaust, closed, one action double acting pressure centre valve optimized for high performance and control accuracy. The solenoid actuation is pilot type, powered at 24V DC with low power consumption, making it suitable for extended operation in manufacturing, processing, and automation industries.

Designed to operate within a temperature range from -10°C to 50°C, this valve supports maximum operating pressure up to 0.7 MPa and a minimum pilot pressure of 0.1 MPa. It provides a maximum flow rate of 559 NL/min, facilitating responsive and high throughput pneumatic systems.

The valve includes rubber seals enhancing longevity and sealing reliability, and the product complies with RoHS environmental standards for safety and sustainability.

Ideal for use in pneumatic and fluid power applications including automation control, packaging machinery, assembly lines, and laboratory pneumatic systems. The SY5000 Series offers compact modular design options with flexible configurations for DIN rail mounting and fast response characteristics.

Compact, lightweight die cast aluminium body ported design for space-saving installations. Easily configured and expandable valve system with multiple port connections. High flow rate and fast response characteristics for efficient pneumatic control.

Compliance with RoHS standard showcasing environmentally responsible design. Compatible with 24V DC solenoid actuation minimizing power consumption. Wide operating temperature range: -10°C to 50°C for versatile environmental use.

Reliable pilot actuation with minimum pilot pressure of 0.1 MPa for sensitive control. Valve function tailored to exhaust, closed, one action double acting pressure centre types.

Choose SMC SY5360-5LOU-01F-Q for reliable, efficient pneumatic valve operation in industrial, manufacturing, and laboratory settings. Explore more Pneumatic Solenoid Valves and industrial valves within the EnvMart catalog for comprehensive fluid power solutions.
