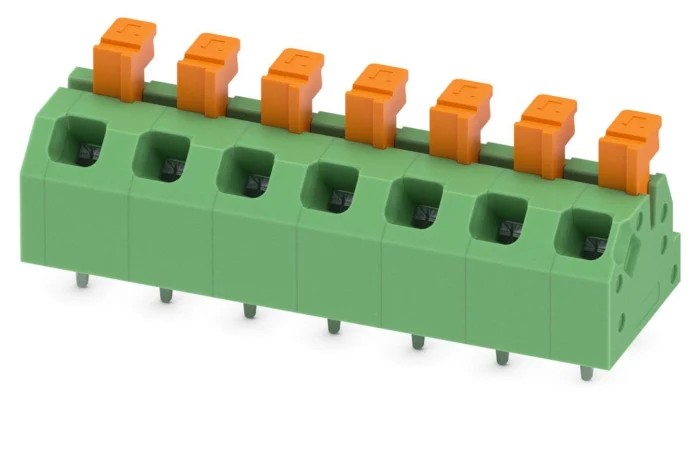

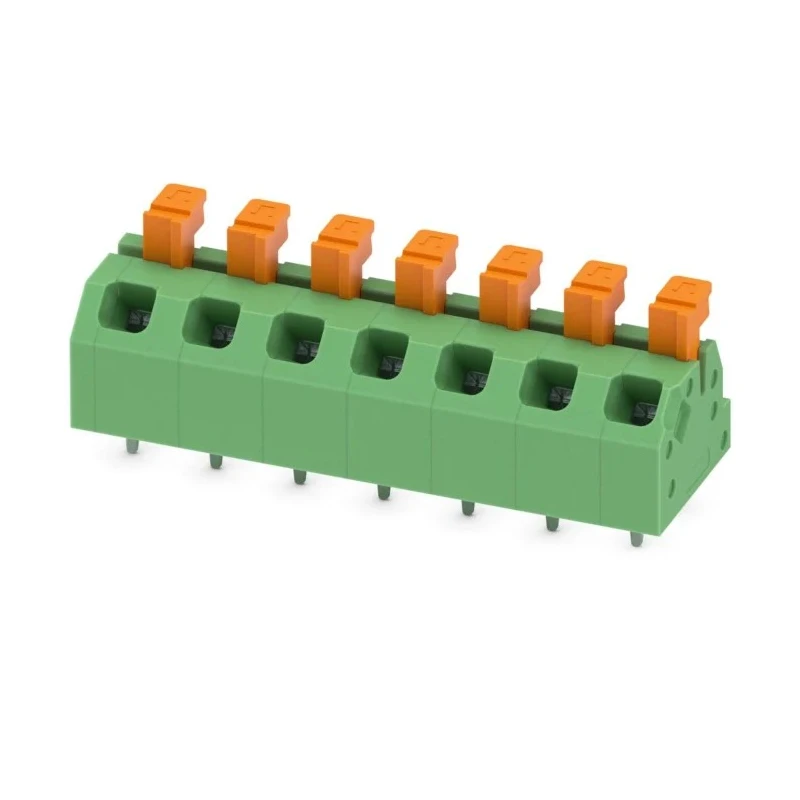

Phoenix Contact Angled PCB Terminal Block 7 Contact 5 mm Pitch 13.5 A 320 V Polyamide Housing 1864480

Phoenix Contact 1864480 is an angled PCB terminal block designed for efficient and reliable electrical connections in professional electronics assembly. Featuring 7 contacts spaced with a 5 mm pitch, this terminal block supports a nominal current of 13.5 A and a voltage rating of 320 V, making it suitable for a wide range of industrial and commercial applications.

The terminal block is constructed with a durable polyamide housing that offers excellent insulation properties and mechanical strength. Its push-in spring connection system allows for tool-free wiring, significantly reducing assembly time and improving productivity. The conductor/PCB connection is angled at 45°, optimizing PCB real estate and cable routing in compact assemblies.

Mounting is achieved via wave soldering, compatible with automated PCB manufacturing processes. A finger-operated and fixable release button facilitates easy conductor removal, enhancing maintenance convenience. Additionally, the integrated test option enables quick verification of circuit integrity without dismantling the setup.

This component is recognized by cULus and compliant with EU RoHS directives, ensuring adherence to safety, reliability, and environmental regulations. The green-colored housing and compact form factor make it ideal for applications where space is constrained, such as industrial control systems, power distribution units, and electronic instrumentation.

Manufactured in Germany, the Phoenix Contact 1864480 terminal block meets stringent quality standards demanded by industrial and laboratory environments. It is suitable for use in electronics manufacturing, automation equipment, power control panels, test rigs, and other professional uses requiring robust and high-quality PCB connectors.

Nominal current rating of 13.5 A allows handling moderate power loads. Operating voltage up to 320 V suitable for various industrial applications. Polyamide housing provides robust insulation and mechanical stability. Push-in spring connection enables tool-free and time-saving wiring.

Single-row, angled configuration with 45° conductor/PCB connection orientation. Wave soldering mounting technique compatible with automated PCB assembly. Integrated test option facilitates quick and convenient circuit testing.

Complies with cULus recognition and EU RoHS standards ensuring safety and environmental compliance.

For customers seeking high-performance PCB Terminal Blocks with efficient connection technology, the Phoenix Contact 1864480 sets a benchmark. Explore comprehensive offerings in the Power Connectors category at EnvMart for advanced electronic components.
