Bulgin Circular Connector 9 Contacts Flange Mount Socket Female IP68 Standard Buccaneer Series PX0769/S

Bulgin PX0769/S Circular Connector is a 9-contact female socket connector from the Standard Buccaneer Series, offering flange mounting and IP68-rated sealing designed for demanding power management and industrial applications.

This connector is engineered to provide a reliable and secure electrical interface with a 5A current rating and 150V operating voltage. Its straight orientation and polymer housing ensure robustness and resistance against dust, oils, saltwater, and other harsh environmental factors.

Brass contacts with nickel plating optimize electrical performance and corrosion protection. The crimp termination system requires no special tooling and is easy to assemble on-site, while the threaded mating type secures the connection firmly with positive locking keyways preventing mismatching during installation.

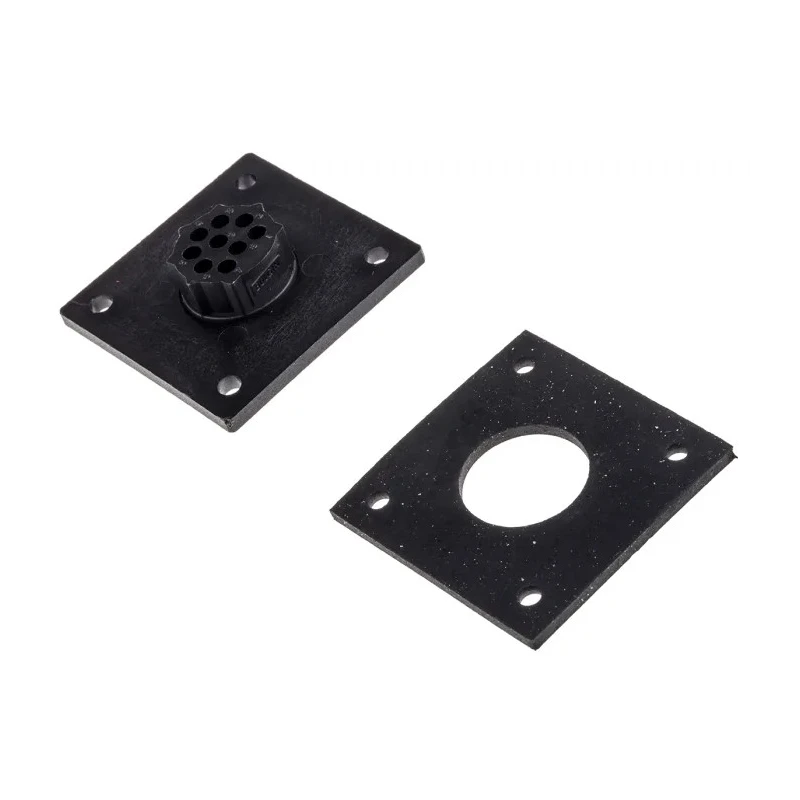

The connector's design includes a screw flange fixing mechanism, supplied sealing gasket, and sealing gasket grommets, enhancing environmental protection and mechanical stability. Operating temperature ranges from -20°C to 70°C, enabling use in challenging climates.

Ideal for industrial, automotive, and marine environments, the Bulgin PX0769/S connector delivers dependable performance and longevity. Its compact flange mount design facilitates integration into control panels and machinery with ease.

Offers 9 contacts with a flange mounting type for easy and secure installation. Rated for 5A current and 150V operating voltage to suit power management applications. Features a straight orientation and a polymer housing for durability and environmental resistance.

Contact material is brass with nickel plating providing excellent conductivity and corrosion resistance. Termination is via crimp method, enabling straightforward field assembly. Designed for use in harsh industrial, automotive, and marine environments with IP68 waterproof protection when mated.

The connector has a secure threaded mating type and is part of the versatile Standard Buccaneer series. Operating temperature range is from -20°C to +70°C, suitable for varied ambient conditions. Includes a positive locking key system and screw flange fixing with supplied sealing gasket and grommets.
