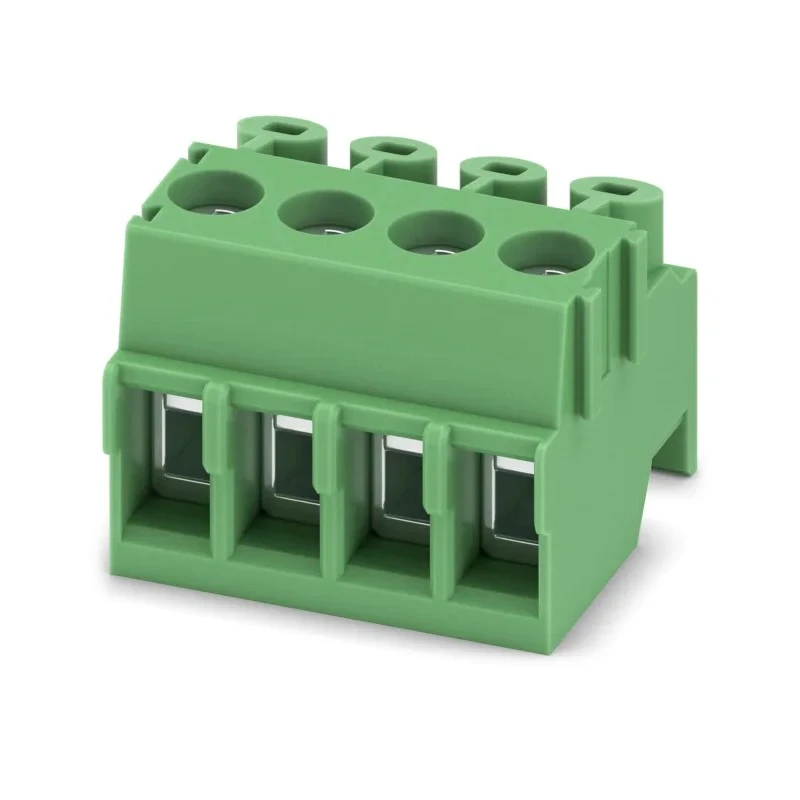

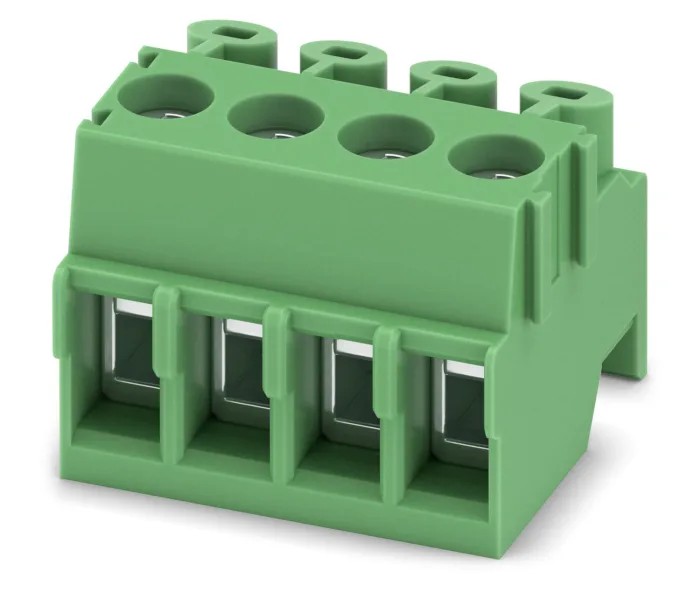

Phoenix Contact PT 1.5/4-PH-3.5 Series Pluggable Terminal Block, 4-Contact, 3.5 mm Pitch, Screw Connection, 400V 1984332

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PT 1.5/4-PH-3.5 Series Pluggable Terminal Block, 4-Contact, 3.5 mm Pitch, Screw Connection, 400V 1984332

Name: Phoenix Contact PT 1.5/4-PH-3.5 Series Pluggable Terminal Block, 4-Contact, 3.5 mm Pitch, Screw Connection, 400V 1984332
Brand: PHOENIX CONTACT
SKU: 214282



Category Pluggable Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	400V
Brand	Phoenix Contact
Colour	Green
Orientation	Horizontal
Current	10A
Length	11mm
Model	1984332
Depth	11mm
Width	14mm
Housing Material	Polyamide
Series	PT 1.5/4-PH-3.5
Number of Rows	1
Pitch	3.5mm
Number of Contacts	4
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	14AWG
Wire Connection Method	Screw
DIN EN 60512-5-2	2003-01

Key Features

Supports 4 contacts with a 3.5 mm pitch for compact PCB terminal connections.
Single-row configuration simplifies wiring and installation.
Screw connection method ensures secure and reliable conductor attachment.
Constructed with green polyamide housing for durability and electrical insulation.
Rated for 10 A current and up to 400 V voltage handling.
Compatible with wire sizes from 0.2 mm² to 2.5 mm² (26 AWG to 14 AWG).
Horizontal orientation and compact dimensions of 14 mm width, 11 mm length, and 11 mm depth.

Product Description

Phoenix Contact 1984332 is a high-quality pluggable terminal block from the PT 1.5/4-PH-3.5 series designed for electronic and electrical applications. It features a 4-contact configuration with a 3.5 mm pitch arranged in a single row, making it ideal for compact PCB terminal connections in industrial and commercial equipment.

The terminal block uses a screw connection method, providing secure, flexible, and accessible wire termination compatible with wire sizes ranging from 0.2 mm² to 2.5 mm² (26 AWG to 14 AWG). Its housing is made of green polyamide, offering excellent durability and electrical insulation properties.

Certified under DIN EN 60512-5-2:2003-01 standards, the terminal block is rated to handle up to 10 A current and 400 V voltage, suitable for numerous electrical control, automation, and power distribution systems. The compact dimensions (14 mm width, 11 mm length, 11 mm depth) and horizontal orientation allow easy integration into confined spaces and DIN rail assemblies.

Key benefits include high terminal block capacity with rectangular spacing, flexible conductor protection, and a rugged, reliable contact system designed for repeated plugging and unplugging. This terminal block is ideal for use in industrial automation, control cabinets, telecommunications, and other manufacturing and electrical distribution applications.

Supports 4 contacts with a 3.5 mm pitch for compact PCB terminal connections. Single-row configuration simplifies wiring and installation. Screw connection method ensures secure and reliable conductor attachment. Constructed with green polyamide housing for durability and electrical insulation.

Rated for 10 A current and up to 400 V voltage handling. Compatible with wire sizes from 0.2 mm² to 2.5 mm² (26 AWG to 14 AWG). Horizontal orientation and compact dimensions of 14 mm width, 11 mm length, and 11 mm depth.

Compliant with DIN EN 60512-5-2:2003-01 standard. Explore Phoenix Contact products and related Pluggable Terminal Blocks at EnvMart for reliable industrial and electronic component solutions.
