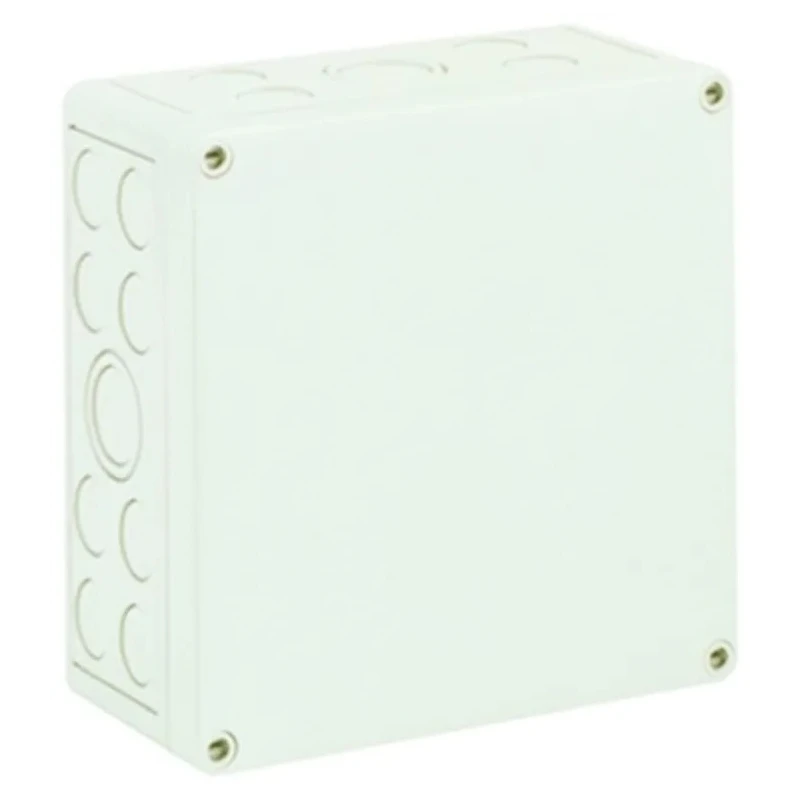

Spelsberg TK Series Grey Grey Lid Polycarbonate Enclosure, IP66, IK08, 90 mm x 182 mm x 180 mm 12040701

Spelsberg 12040701 TK Series Polycarbonate Enclosure, rated IP66 and IK08, measures 90 mm (height) x 182 mm (length) x 180 mm (width). It is designed to safely house a wide range of electrical, electronic, and pneumatic equipment in industrial, commercial, and laboratory environments. The enclosure base and lid are constructed from high-quality polycarbonate, providing resistance to most acids and alkalis.

This enclosure provides superior protection against ingress of dust and water with its IP66 rating, ensuring operational reliability indoors and outdoors even under challenging environmental conditions. The IK08 rating confirms its capacity to withstand significant mechanical impacts, making it suitable for industrial applications where robustness is critical.

The product features a grey base and matching grey lid, with an integrated polyurethane gasket enhancing the seal. It does not include any pre-pressed metric knockouts, allowing for flexible modifications and custom installations. Mounting can be performed either on a wall using through holes below the lid fixing screws or on surfaces using included knockouts with sealing plugs for effective sealing.

Designed to operate within a temperature range of minus 35 degrees Celsius up to 80 degrees Celsius, this enclosure supports a variety of environmental conditions typical in automation, electrical installations, and manufacturing equipment setups. The enclosure conforms to flammability standards VDE 0471 and UL94, rated at 960 °C / V2, ensuring safety against fire hazards.

The enclosure is constructed from high-grade polycarbonate material providing chemical resistance. Rated IP66 for ingress protection against dust and water according to EN 60529 and DIN VDE 0470-1. IK08 impact resistance tested per DIN EN 5012 and VDE 0470 Part 100 standards.

Includes an integrated polyurethane cover gasket for effective sealing. Wall mounting facilitated via through holes below lid fixing screws. Surface mounting enabled by knockouts in the base with sealing plugs included. Operating temperature range from -35 °C to +80 °C for versatile application.

Flammability meets VDE 0471, UL94, 960 °C / V2 standards. Unshielded design without transparent door option enabling broader usage. Made in Germany ensuring quality and compliance.

This Spelsberg enclosure is ideal for use in industrial automation, electrical installations, HVAC systems, manufacturing plants, laboratory setups, and water treatment facilities. Its robust construction ensures long-term reliability even in harsh operating environments.
