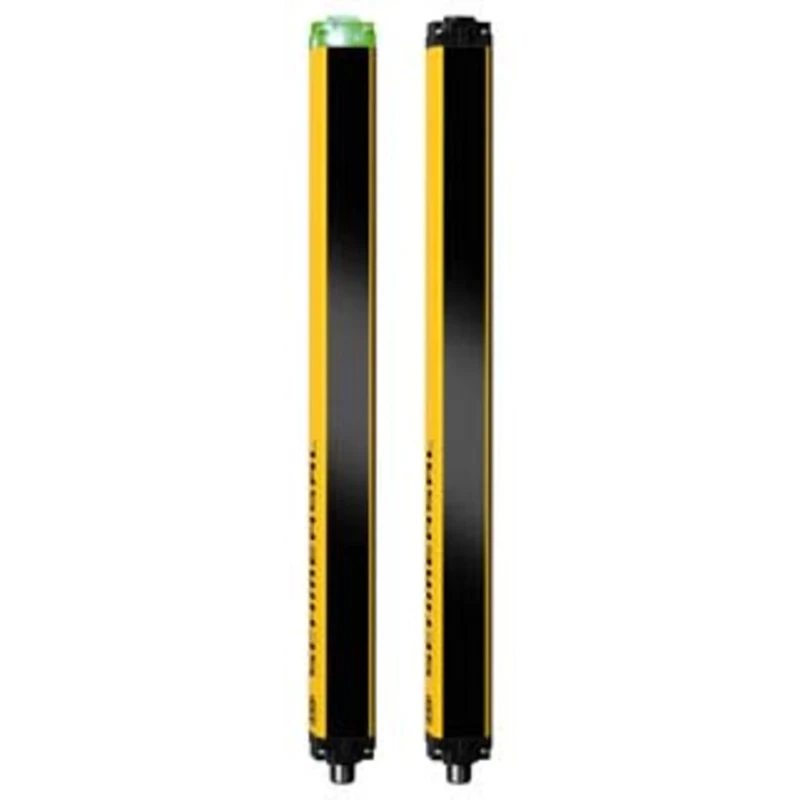

Schmersal SLC440COM Series Type 4 Light Curtain Receiver, 72 Beam(s), 30 mm Resolution, 24V DC, 20 ms Response Time

Free Delivery in India | Lowest Global Shipping Charges

Schmersal SLC440COM Series Type 4 Light Curtain Receiver, 72 Beam(s), 30 mm Resolution, 24V DC, 20 ms Response Time

Name: Schmersal SLC440COM Series Type 4 Light Curtain Receiver, 72 Beam(s), 30 mm Resolution, 24V DC, 20 ms Response Time
Brand: SCHMERSAL
SKU: 213752
Price: 2560.78 USD
Availability: InStock



Category Safety Light Curtain Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Height	1.49m
Length	33mm
Model	SLC440COM
Number of Beams	72
Width	27.8mm
Series	SLC440COM
Terminal type	5-Pin M12
Component Type	Receiver
Standards/Approvals	cULus, TUV, EAC
Maximum Supply Voltage	24V dc
Safety Type	Type 4
Protective Height	1450mm
Maximum Protective Width	10m
Minimum Scanning Distance	300mm
Maximum Scanning Distance	10m
Maximum Response Time	20ms
Beam Resolution	30mm

Key Features

The device operates at 24V DC supply voltage for reliable power input.
It features a fast maximum response time of 20 milliseconds for quick hazard detection.
Designed with Type 4 safety standard for high risk applications.
The receiver has a protective height of 1450 mm and maximum protective width of 10 m.
Its IP67 rating ensures waterproof and dustproof performance in harsh environments.
Constructed from durable aluminium for corrosion and impact resistance.
Wide scanning distance from 300 mm minimum to 10 m maximum supports versatile usage.
Compact dimensions of 1.49 m height, 33 mm length, and 27.8 mm width facilitate easy installation.

Product Description

Schmersal SLC440COM-R-1450-30 is a high-performance Type 4 Light Curtain Receiver designed for industrial safety applications. Featuring 72 beams with a 30 mm resolution, this receiver ensures precise detection of objects or personnel interrupting the light curtain to trigger immediate machine stoppage, reducing injury risks in material handling, chemical laboratories, and lift applications.

This device operates efficiently on a 24V DC power supply and offers a rapid maximum response time of 20 ms, sensitive enough to detect fast intrusions. It is built to withstand demanding industrial environments with an IP67 rating, making it dustproof and capable of withstanding temporary immersion in water.

The receiver provides a broad protection field with a height coverage of 1450 mm and a maximum protective width of 10 meters, suitable for large workspaces requiring comprehensive hazard detection. The scanning distance ranges from 300 mm minimum to 10 meters maximum, enabling flexible deployment. Its slim profile with 1.49 m height, 33 mm length, and 27.8 mm width, combined with a lightweight aluminium body of just 2.32 kg, allows for easy mounting and durability.

The device complies with internationally recognized safety standards, including cULus, TUV, and EAC certifications. The terminal uses a 5-pin M12 connector ensuring secure and reliable electrical interfacing. This light curtain receiver minimizes power consumption, operating below 10W for energy-efficient safety monitoring.

Ideal for industrial automation systems, Schmersal's SLC440COM series enhances workplace safety in manufacturing, material handling, chemical labs, and lift equipment settings. The robust construction and versatile performance make it a reliable choice for safety integration in diverse industrial facilities.
