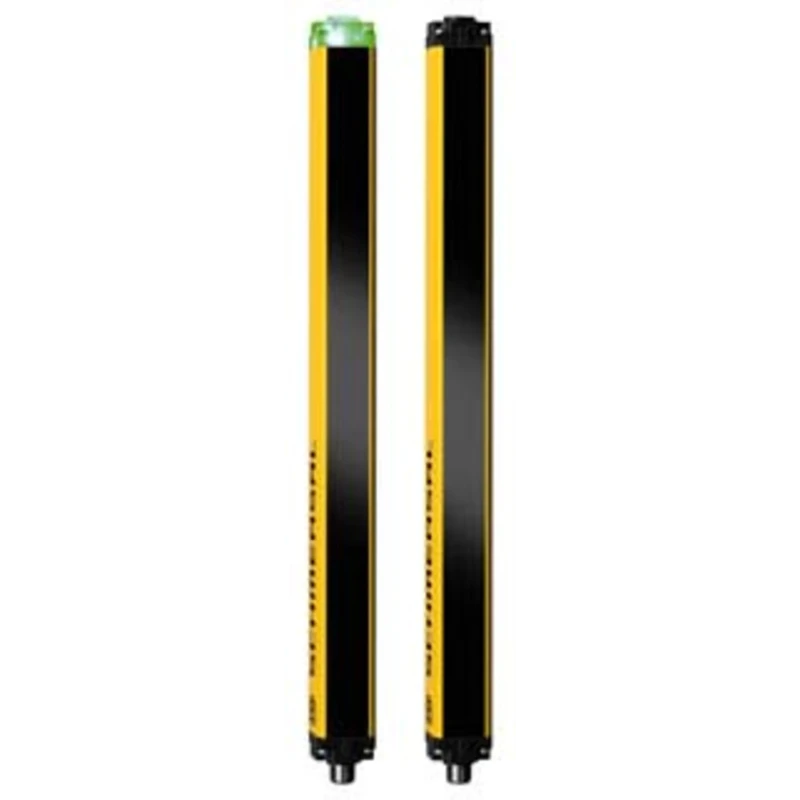

Schmersal Series Light Curtain Sender 48 Beams 30mm Resolution Type 4 Safety Device 24V DC 970mm Protective Height SLC440COM

Schmersal SLC440COM Series Light Curtain Sender, model SLC440COM-E-0970-30, is a high-performance safety device designed for effective object detection and machine protection in industrial applications. This Type 4 light curtain includes 48 beams with a 30 millimeter resolution to create a reliable light barrier that triggers machinery to stop when interrupted by an object. Operating on a 24V DC power supply, it is suitable for low-voltage applications ensuring worker and equipment safety.

The aluminium body of the light curtain offers excellent resistance to impact and corrosion, making it ideal for harsh industrial environments. The device boasts a protective height of 970 millimeters, enabling it to secure large equipment while maintaining a maximum protective width of 10 meters. Its IP67 rating certifies its resistance against dust ingress and the ability to withstand immersion in water up to one meter deep for 30 minutes.

Designed with a broad operating temperature range from -10°C to +50°C, this sender can perform reliably in demanding environmental conditions. The scanning distance ranges from 300 millimeters minimum to 10 meters maximum, providing flexibility in application scope. With a quick maximum response time of 10 milliseconds, it ensures instantaneous response to hazards.

The light curtain is equipped with a 4-Pin M12 connector for robust and easy electrical integration. Manufactured in Germany, it adheres to stringent safety and quality standards including cULus, TUV, and EAC certifications.

48 beams for comprehensive object detection. 30 mm beam resolution for precise sensing. Robust aluminium housing resistant to impact and corrosion. 24V DC low-voltage operation for safety compliance. Protective height of 970 mm for large machinery coverage.

IP67 rating for dust and water resistance. Wide scanning distance from 300 mm to 10,000 mm. Fast 10 ms maximum response time to prevent accidents. 4-Pin M12 connector for secure connections. Operating temperature from -10°C to +50°C for varied environments.

This light curtain is ideal for industrial automation applications including hydraulic presses and marine industry machinery, providing reliable safety detection in hazardous zones. Schmersal's SLC440COM transmitter is engineered to enhance workplace safety while maintaining operational efficiency in complex industrial systems.
