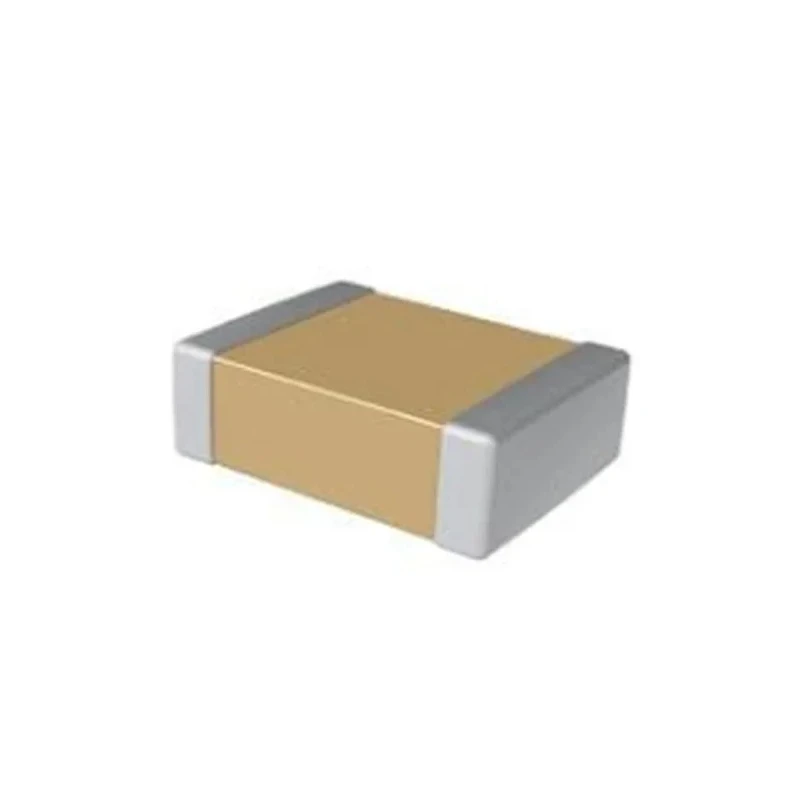

KEMET 10 nF 1.5kV DC Multilayer Ceramic Capacitor ±10% Tolerance Surface Mount 1206 Case C Series X7R C1206C103KFRACTU

KEMET C1206C103KFRACTU is a 10 nF multilayer ceramic capacitor featuring a 1.5 kV DC voltage rating and ±10% capacitance tolerance, designed specifically for surface mount technology with a 1206 case size.

This capacitor uses a stacked construction with X7R dielectric material, known for thermal stability and stable capacitance characteristics over an operating temperature range of -55°C to 125°C. The C series part features soldered termination ensuring robust electrical connection on PCB assemblies.

Endorsed by automotive standard AEC-Q200 and with certifications such as J-STD-020, EIA, and IPC-7351, this component meets stringent reliability and quality standards required in automotive, industrial, and consumer electronics applications.

The capacitor has dimensions of 3.2 mm length, 1.6 mm width, and 1.6 mm height, ideal for dense PCB layouts. It exhibits very low equivalent series resistance (ESR) and inductance (ESL), minimizing losses and noise, including no piezoelectric noise, making it suitable for high-frequency resonant circuit applications where Q factor and stability are critical.

Manufactured in Mexico, the capacitor complies with environmental directives, including RoHS and REACH, ensuring it is lead-free and environmentally safe. Packaging in tape and reel format enables compatibility with automated pick-and-place and soldering processes, improving production efficiency and reducing handling errors.

This multilayer ceramic capacitor is ideal for use in industrial machinery control systems, consumer electronics, HVAC controls, automotive electronics, and other precision electronic circuits requiring durable, high voltage ceramic capacitors.

The capacitor uses an X7R dielectric supporting operation between -55°C and 125°C. It features a 1206 package size with dimensions 3.2mm length, 1.6mm width, and 1.6mm height. Compliance includes automotive standard AEC-Q200 and various industry approvals like J-STD-020 and IPC-7351.

Constructed as a stacked multilayer capacitor with solder termination for reliable mounting. Offers very low ESR and ESL with high thermal stability and ripple current capability. RoHS and REACH compliant with lead (Pb)-free construction.

This part is well suited for resonant circuit applications requiring stable capacitance and minimal noise. Packaging is tape and reel, facilitating automated assembly and improved production efficiency. Explore the broad range of KEMET Multilayer Ceramic Capacitors on EnvMart for your electronics manufacturing and design needs.
