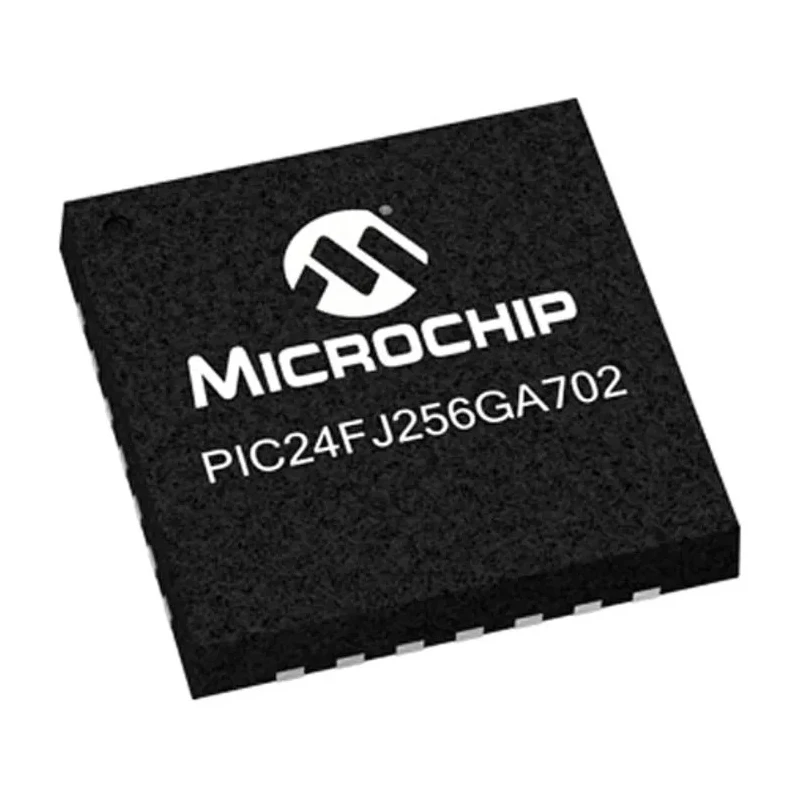

Microchip PIC24FJ256GA702-I/ML 32-bit PIC24 Microcontroller 32 MHz 256kB FLASH 28-Pin QFN

Microchip PIC24FJ256GA702-I/ML is a high-performance 32-bit PIC24 microcontroller designed for embedded and industrial applications requiring secure and efficient processing. This model operates at 32 MHz and incorporates a 256kB dual-partition flash memory system, enabling reliable live updates and extended program capabilities. It is housed in a compact 28-pin QFN package measuring 6 mm by 6 mm, making it suitable for small form factor applications.

The device features a modified Harvard architecture 16-bit PIC24 CPU with a maximum of 16 MIPS operation, supported by an 8 MHz internal oscillator with a 96 MHz PLL option. Its 16kB RAM and integrated hardware cryptographic engine facilitate secured operations without burdening the CPU, complying with NIST encryption standards. The microcontroller also supports multiple communications interfaces, including 6 UART, 4 SPI, and 3 I2C, allowing versatile connectivity options.

Equipped with 10 programmable analog comparators and up to 24 channels of 10/12-bit ADC with a 200 kbps conversion rate, it supports precision sensing and analog signal processing. Additionally, a 10-bit DAC with 1 Msps update rate is available for output modulation. The device is rated for automotive applications, conforming to the AEC-Q100 standard, and supports operation over a broad temperature range from -40°C to 85°C.

Its small size along with eXtreme Low Power (XLP) technology makes it ideal for embedded security, industrial controls, automotive electronics, and other applications where power efficiency, compactness, and security are critical. The microcontroller also features 3 timers and an integrated charge time measurement unit compatible with capacitive touch sensing technologies.

Key features include its 32-bit data bus width, hardware divider, cryptographic engine, and multiple communications ports, making it a versatile choice for advanced microcontroller projects in industrial, automotive, and commercial electronics domains.

Operates at 32 MHz with 16 MIPS performance. 256kB FLASH memory with live update capability. 16kB RAM and advanced peripheral support. Integrated hardware cryptographic engine for secure operations. Multiple serial communication interfaces: UART, SPI, I2C.

10/12-bit ADC with up to 24 channels. Automotive AEC-Q100 standard compliant. Compact 28-pin QFN package, 6 mm x 6 mm dimensions. Wide operating temperature range: -40°C to +85°C. Low power XLP technology for extended battery life.

This Microcontroller is well-suited for embedded systems development in industrial controls, automotive electronics, security modules, and low power IoT devices. Explore the Microchip PIC24FJ series at EnvMart for comprehensive solutions and technical expertise.
