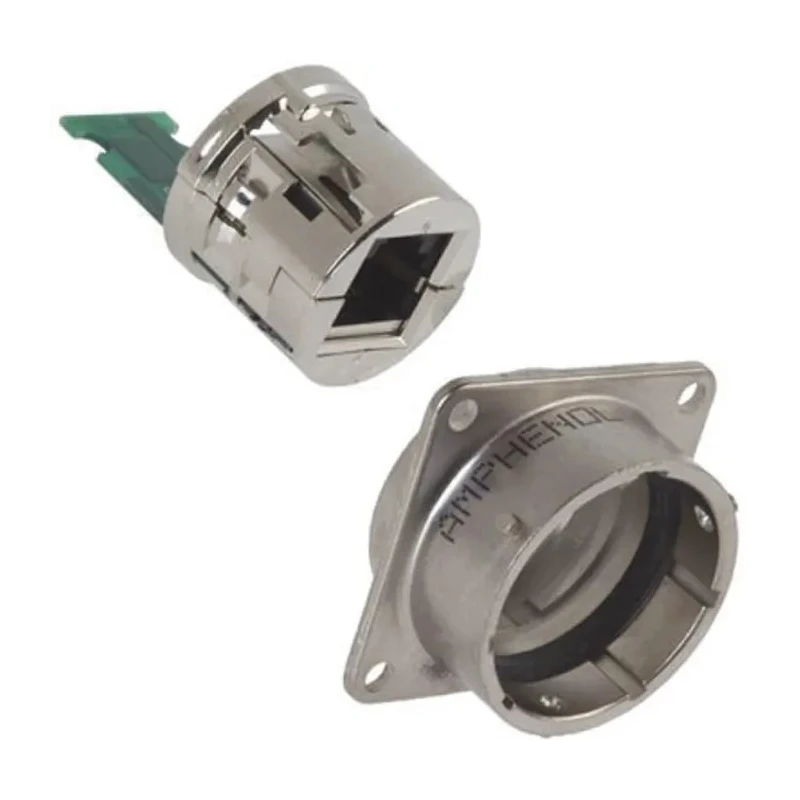

Amphenol Socapex RJF Series RJ45 Female Panel Mount Shielded Ethernet Connector Cat5e 1 Port 8 Way

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Socapex RJF Series RJ45 Female Panel Mount Shielded Ethernet Connector Cat5e 1 Port 8 Way

Name: Amphenol Socapex RJF Series RJ45 Female Panel Mount Shielded Ethernet Connector Cat5e 1 Port 8 Way
Brand: Amphenol Socapex
SKU: 213306
Price: 74.68 USD
Availability: InStock



Category Connector Brand Amphenol Socapex Condition New

Specifications

Country of Origin	India
Brand	Amphenol Socapex
Orientation	Straight
Length	33.3mm
Model	RJ45
Depth	39.1mm
IP Rating	IP68
Connector Type	Receptacle
Number Of Ways	8
Width	33.3mm
Mount Type	Panel Mount
Contact Material	Copper Alloy
Series	RJF
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Shield Type	Shielded
Contact Plating	Gold
Connector Gender	Female
LAN Category	Cat5e
Ethernet Connector Type	RJ45

Key Features

Provides a rugged metal shell protecting RJ45 connectors from shocks, dust, and fluids.
Compatible with Cat5e LAN category supporting high-speed data transmission.
Panel mount type with bayonet coupling for secure and easy installation.
Gold-plated copper alloy contacts improve conductivity and corrosion resistance.
Operates reliably over a wide temperature range from -40°C to 85°C.
Solder termination type ensures secure electrical connections.
Compact dimensions with 33.3mm width and length, 39.1mm depth.
Designed as a single port, 8-way female RJ45 receptacle connector.

Product Description

Amphenol Socapex RJF22N01 is a RJF Series RJ45 female panel mount shielded Ethernet connector designed to withstand harsh industrial and outdoor environments. Rated IP68, it offers robust protection against shocks, dust, and water ingress, making it suitable for challenging networking applications including industrial automation, telecommunications, and outdoor communication infrastructure.

This Cat5e compatible connector supports one port with eight ways, ensuring efficient and reliable high-speed LAN connections. The connector features a bayonet coupling mechanism for tool-free secure installation into panels. Gold-plated copper alloy contacts provide superior conductivity and corrosion resistance, while the solder termination type guarantees stable electrical contact.

The RJF22N01 connector is engineered to operate reliably across a broad temperature range from -40°C to 85°C, suitable for demanding conditions. Its compact dimensions of 33.3mm width and length, and 39.1mm depth allow flexible integration into existing setups without consuming excessive space.

Rugged metallic shell with MIL-DTL-26482 H conformity ensures durability in harsh environments. IP68 rating certifies protection against dust and submersion in water. Bayonet coupling system enables quick, secure panel mounting installation.

Gold plating and copper alloy contacts optimize signal integrity and corrosion resistance. Operates efficiently in extreme temperature conditions between -40°C and 85°C. Supports Cat5e Ethernet for standard network communication requirements.

Solder termination offers reliable and long-lasting electrical connections. Compact single port 8 way design for versatile application.

This connector is ideal for use in industrial networking, telecom systems, automation controls, and other applications requiring robust, high-quality Ethernet connectivity. It provides a reliable solution where environmental protection and performance are critical.

Explore more quality Connectors and electronic components from Amphenol Socapex and related categories at EnvMart.
