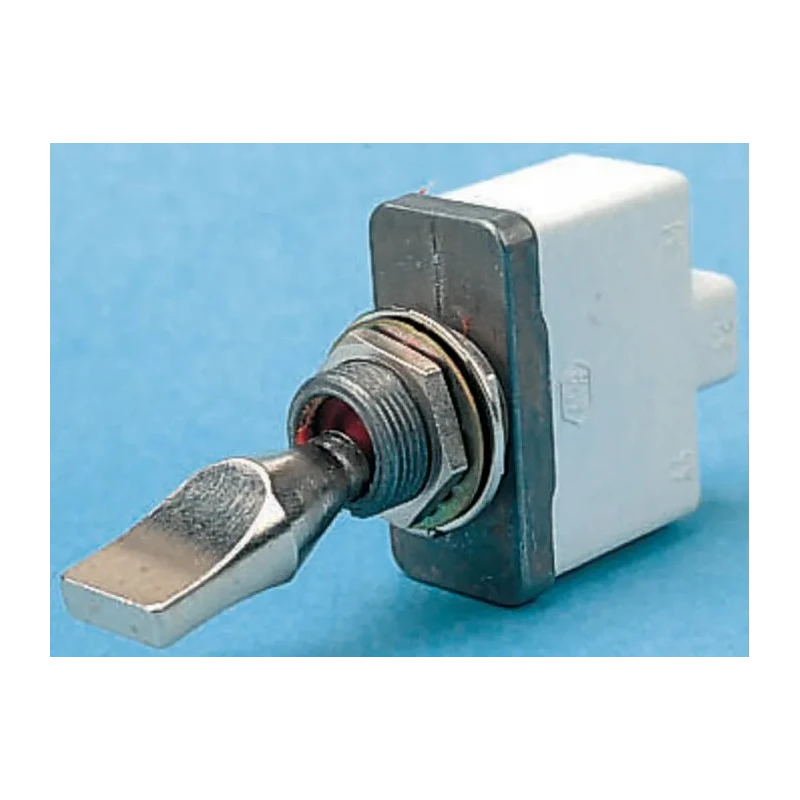

APEM Toggle Switch Panel Mount On-Off DPST Screw Terminal 24 V dc 250 V ac 3541-001N000
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 3541-001N000 |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Panel |
| Series | 3500 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS, CSA, NFVDE, CECC, UL |
| Switch Operation | On-Off |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 15A |
| Mechanical Life | 40000Operations |
| Contact AC Voltage | 250V ac |
Key Features
- Double Pole Single Throw (DPST) contact configuration ensures simultaneous control of two circuits.
- Panel mount design with screw terminals for secure and easy installation.
- High current rating of 15 A suitable for demanding applications.
- Rated for 24 V dc and 250 V ac contact voltages, accommodating diverse power systems.
- IP67 sealing provides full protection against dust and water immersion up to 1 meter.
- Mechanical life of 40,000 operations guarantees long-term reliability.
- Robust construction with a bright nickel finish lever and silver cadmium oxide contacts.
- Operating temperature range from -40°C to 85°C ensures performance under extreme conditions.
Product Description
APEM 3541-001N000 Toggle Switch is a panel mount On-Off switch with DPST contact configuration, rated for 24 V dc and 250 V ac operation. Designed for industrial and commercial electrical automation, this switch provides secure and reliable control for electrical circuits.
This 3500 Series switch features a sealed IP67 enclosure, making it fully resistant to dust ingress and capable of withstanding immersion in water up to one meter deep, ideal for harsh industrial environments.
The switch incorporates moulded-in screw terminals (M3.5 screw) and a flat bright nickel-finished lever for enhanced durability and ease of use. Internally, it utilizes silver cadmium oxide contacts and a brass actuator encased in mineral-filled polyester rated to UL 94 V-0 standards for flame retardancy.
With a mechanical life expectancy of 40,000 operations and a current rating of 15 A, this component is suitable for demanding electrical and electronic control applications. Its operating temperature range extends from -40°C to 85°C, allowing functionality in extreme temperature conditions often encountered in industrial, laboratory, HVAC, manufacturing, and water treatment settings.
The switch is compliant with multiple international standards and approvals, including RoHS for environmental safety, CSA, NFVDE, CECC, and UL, ensuring trusted quality and safety performance. The panel cutout size is 12.2 mm with overall dimensions of 36 mm height, 14 mm length, and 12 mm width, facilitating easy integration into electrical panels and enclosures.
As a product of France, it reflects precision manufacturing suited for high-quality industrial automation switches. Double Pole Single Throw (DPST) contact configuration for dual circuit control. On-Off switch operation with a robust panel mount design.
15 ampere switch contact current supporting heavy loads. Moulded-in screw terminals providing secure electrical connections. IP67 rating for complete dust and water resistance. Mechanical life rated at 40,000 operations for durability.
Operating temperature range from -40°C to 85°C. Compliance with RoHS, CSA, NFVDE, CECC, and UL standards. Compact dimensions, ideal for panel integration.
Explore the Electronics & Electricals category on EnvMart for more high-quality switches, including Toggle Switches and other industrial control components from leading manufacturers like APEM.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Single Throw (DPST) contact configuration, allowing for simultaneous control of two circuits.
It is rated for 24 V dc and 250 V ac, accommodating various power systems.
The switch has a contact current rating of 15 A, suitable for demanding applications.
The mechanical life is rated at 40,000 operations, ensuring long-term reliability.
The overall dimensions are 36 mm in height, 14 mm in length, and 12 mm in width.
It operates effectively within a temperature range of -40°C to 85°C.
It features moulded-in screw terminals (M3.5 screw) for secure electrical connections.
The panel cutout size needed for this switch is 12.2 mm.
This unit complies with RoHS, CSA, NFVDE, CECC, and UL standards for safety and performance.
The actuator length is 17.5 mm, contributing to its usability in various applications.
It is manufactured in France, reflecting precision in its construction.
