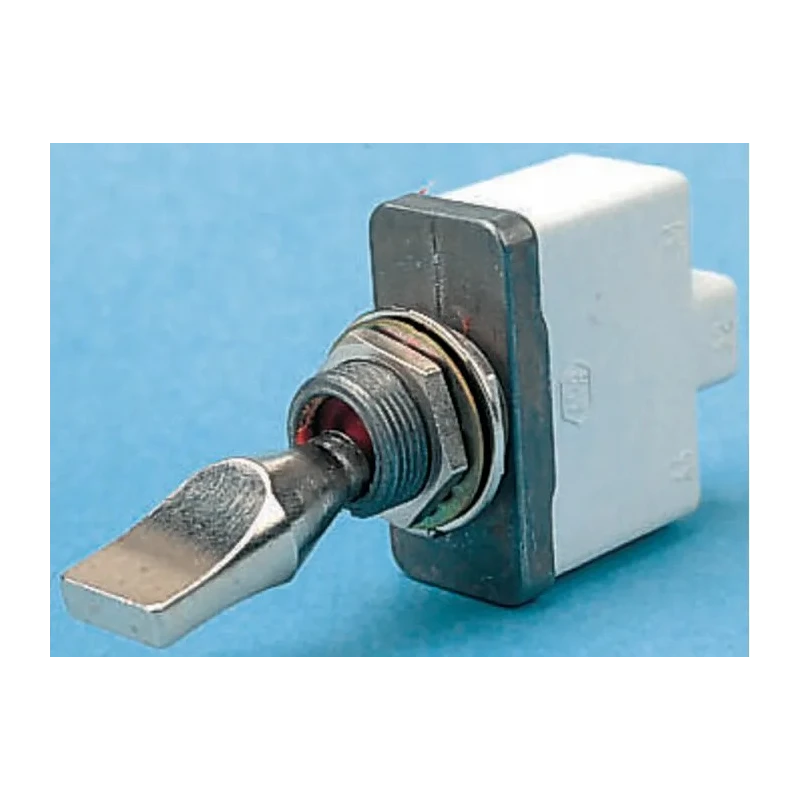

APEM Toggle Switch Panel Mount On-On DPST Screw Terminal 24V dc 250V ac 3546-001N000
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 3546-001N000 |
| IP Rating | IP67 |
| Width | 12mm |
| Mount Type | Panel |
| Series | 3500 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.2 mm |
| Terminal type | Screw |
| Standards/Approvals | UL, RoHS, CSA, CECC, NFVDE |
| Switch Operation | On-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 15A |
| Mechanical Life | 40000Operations |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a sealed IP67 rating for protection against dust and immersion in water up to 1 meter.
- It supports a switch contact current of 15A, ensuring reliable electrical performance.
- Mechanical life expectancy is 40,000 operations, providing durability.
- The switch includes moulded-in screw terminals for secure and easy installation.
- Its compact design with dimensions 36mm height, 14mm length and 12mm width fits panel cutouts of 12.2 mm size.
- The actuator length is 17.5mm with a bright nickel finish lever and brass actuator.
- Operating temperature ranges from -40°C to 85°C, suitable for varied environments.
- Compliance with international standards including UL, RoHS, CSA, CECC, NFVDE assures quality and safety.
Product Description
APEM 3546-001N000 Toggle Switch is a robust panel mount switch designed for electrical and automation applications requiring On-On DPST operation at 24V dc and 250V ac voltages. Featuring an IP67 sealed construction, it is capable of withstanding immersion in water up to 1 meter depth, making it ideal for challenging environmental conditions.
This switch includes silver cadmium oxide contacts for optimal conductivity and a moulded-in screw terminal design using M3.5 screws to secure wiring firmly. The bright nickel finish lever and brass actuator provide durable mechanical performance with an actuator length of 17.5mm to ensure easy toggling.
The compact body dimensions are 36mm in height, 14mm length, and 12mm width, fitting into precise 12.2 mm panel cutouts. Its operating temperature range from -40°C to 85°C allows it to function effectively in both cold and hot industrial settings.
With a mechanical life rating of 40,000 operations, this toggle switch meets rigorous use demands in industrial, electrical panels, HVAC, and manufacturing systems. It conforms to relevant UL, RoHS, CSA, CECC, and NFVDE standards, assuring safety and compliance.
The APEM 3546-001N000 is the ideal choice for panel mounting in automation, electrical control, and industrial equipment needing reliable On-On DPST switching capability with screw terminal connections.
The switch features a sealed IP67 rating for protection against dust and immersion in water up to 1 meter. It supports a switch contact current of 15A, ensuring reliable electrical performance. Mechanical life expectancy is 40,000 operations, providing durability.
The switch includes moulded-in screw terminals for secure and easy installation. Its compact design with dimensions 36mm height, 14mm length and 12mm width fits panel cutouts of 12.2 mm size. The actuator length is 17.5mm with a bright nickel finish lever and brass actuator.
Operating temperature ranges from -40°C to 85°C, suitable for varied environments. Compliance with international standards including UL, RoHS, CSA, CECC, NFVDE assures quality and safety.
Explore a wide range of Toggle Switches and panel mount components in the Electronics & Electricals category at EnvMart for applications including industrial automation, electrical enclosures, and control panel assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
The contact configuration of this switch is DPST (Double Pole Single Throw).
The dimensions of this model are 36mm in height, 14mm in length, and 12mm in width, designed to fit a panel cutout of 12.2 mm.
The mechanical life expectancy of this toggle switch is rated for 40,000 operations.
This model supports a switch contact current of 15A.
It includes moulded-in screw terminals for secure and easy installation.
The actuator length is 17.5mm.
This toggle switch supports a contact DC voltage of 24V and a contact AC voltage of 250V.
The minimum operating temperature for this toggle switch is -40°C.
It complies with several international standards including UL, RoHS, CSA, CECC, and NFVDE.
This model is suitable for applications in industrial automation, electrical control, and manufacturing systems requiring reliable On-On switching capability.
