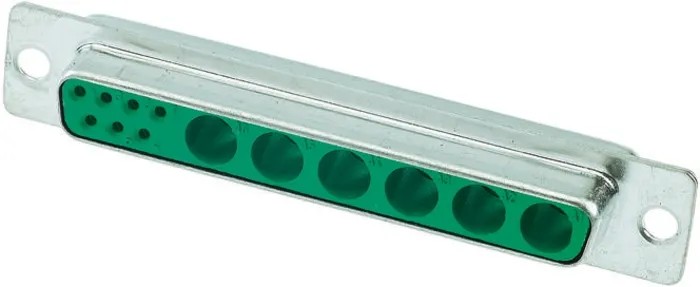

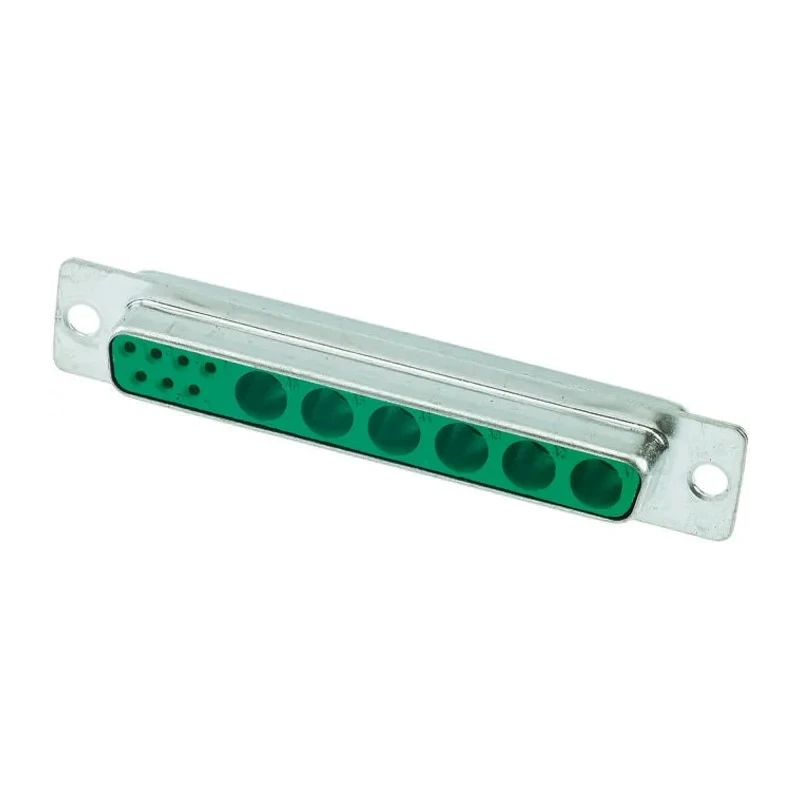

HARTING D-Sub 13 Way Straight Panel Mount D-Sub Connector 1000V 5A Mixed Contact Layout 09694017136
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder Cup |
| Maximum Operating Temperature | 125°C |
| Contact Type | 7 Signal |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 13 |
| Contact Gender | Female |
| Mixed Contact Layout | 13W6 |
| HARTING D-Sub 13 Way Straight Panel Mount D-Sub ConnectorBrand | HARTING |
Key Features
- Supports a maximum voltage of 1000V for safe operation.
- Features a mixed contact layout (13W6) with 7 signal contacts.
- Constructed with a durable steel housing and gold-plated copper alloy contacts.
- Straight orientation with solder cup termination for secure connections.
- Operates across a temperature range from -55°C to 125°C, suitable for various industrial environments.
- Complies with RoHS standards ensuring environmental safety.
- Panel mount design allows easy integration into equipment and machinery.
- Ideal for use in electronic, power, and computing connector applications.
Product Description
HARTING 09694017136 D-Sub 13 Way Straight Panel Mount D-Sub Connector is a high-quality electrical connector designed for industrial and electronic applications. Rated for 5A current and 1000V voltage, it ensures reliable and secure electrical connections in demanding environments. The panel mount type and straight orientation make it versatile for a variety of installation scenarios in power connectors and computing systems.
The connector features a mixed contact layout of 13 signal contacts (13W6), providing flexibility for multiple wiring needs. Contacts are made of copper alloy with gold plating for excellent conductivity and corrosion resistance. The housing is robust steel, ensuring mechanical protection and durability. Termination is via solder cup, facilitating strong, soldered connections to wires or PCBs.
Designed to operate over a wide temperature range from -55°C to 125°C, this connector is suitable for harsh industrial, manufacturing, and electronic environments. It meets RoHS compliance, underlining its adherence to stringent environmental regulations.
Applications include electronic assembly, industrial automation, communication equipment, and power distribution systems. The flange with through holes (3.1 mm) allows secure mounting to panels and equipment chassis, enhancing integration stability.
Supports a maximum voltage of 1000V for safe operation. Features a mixed contact layout (13W6) with 7 signal contacts. Constructed with durable steel housing and gold-plated copper alloy contacts. Straight orientation with solder cup termination for secure connections.
Operates across -55°C to 125°C temperature range for industrial reliability. Complies with RoHS standards ensuring environmental safety. Panel mount design allows easy equipment integration. Ideal for electronic, power, and computing connector use.
This HARTING D-Sub Connector is an essential component for engineers and technicians needing reliable, rugged connectors for electronic and power applications. Explore more connectors and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this D-Sub connector is 1000V, ensuring safe operation in various applications.
This model has a current rating of 5A, making it suitable for a range of electrical applications.
It features a mixed contact layout with 13 contacts, including 7 signal contacts (13W6), allowing for versatile wiring configurations.
The housing is made of steel, while the contacts are constructed from copper alloy with gold plating for enhanced conductivity and corrosion resistance.
This connector operates effectively within a temperature range of -55°C to 125°C, suitable for harsh industrial environments.
It uses a solder cup termination, which allows for strong, soldered connections to wires or printed circuit boards (PCBs).
This unit is designed for panel mount installation, facilitating easy integration into equipment and machinery.
Yes, it complies with RoHS standards, ensuring it meets stringent environmental safety regulations.
The contacts in this connector are female, designed to connect with male counterparts in various applications.
The flange features mounting holes with a diameter of 3.1 mm, allowing for secure attachment to panels and equipment chassis.
It is ideal for applications in electronic assembly, industrial automation, communication equipment, and power distribution systems.
