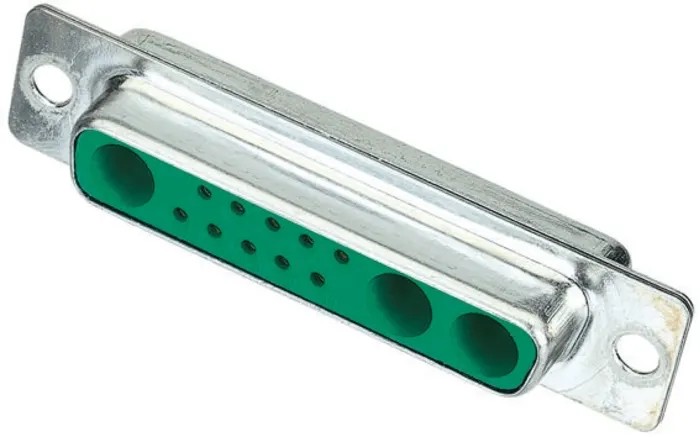

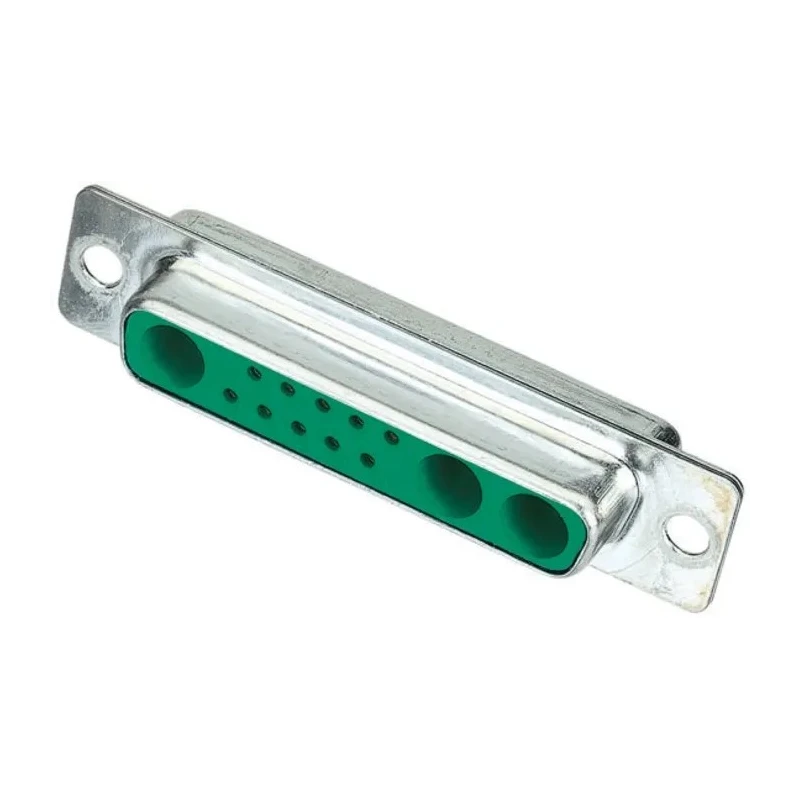

HARTING D-Sub 9 Way Straight Panel Connector Female 09693017094

HARTING brand 09693017094 model D-Sub 9 Way Straight Panel Connector Female is engineered for robust electrical connection applications. It features a steel housing for enhanced mechanical protection and mixed shells with pre-mounted signal solder cup contacts, providing reliable signal transmission and ease of wiring.

Designed as a panel mount connector, it houses 9 contact points arranged in a 9W4 mixed contact layout that supports up to 5 amperes of current and a voltage rating of 1000 volts, making it suitable for demanding electronic and power connections.

The connector is suitable for operating temperature ranges from -55°C to 125°C, supporting harsh environmental conditions in industrial, laboratory, manufacturing, and construction settings. The termination method is solder cup, ensuring secure and stable electrical contact with copper alloy contacts plated with tin for corrosion resistance.

The flange through hole measurement of 3.1 mm provides stable mechanical mounting. The product complies with RoHS standards, affirming its adherence to environmental safety and quality standards.

This D-Sub Connector series from HARTING is widely used in electronic components, power connectors, and communication interfaces. Its mixed layout and female gendered connector design make it ideal for panel installations requiring versatile connectivity.

This panel mount connector features 9 contacts for versatile applications. Supports current up to 5A and voltage rating of 1000V. Steel housing ensures durable protection. Copper alloy contacts with tin plating resist corrosion.

Operates between -55°C and 125°C for use in harsh conditions. Solder cup terminations provide reliable wiring. Flange through hole size of 3.1 mm for mechanical stability. Complies with RoHS environmental standards ensuring safe use.
