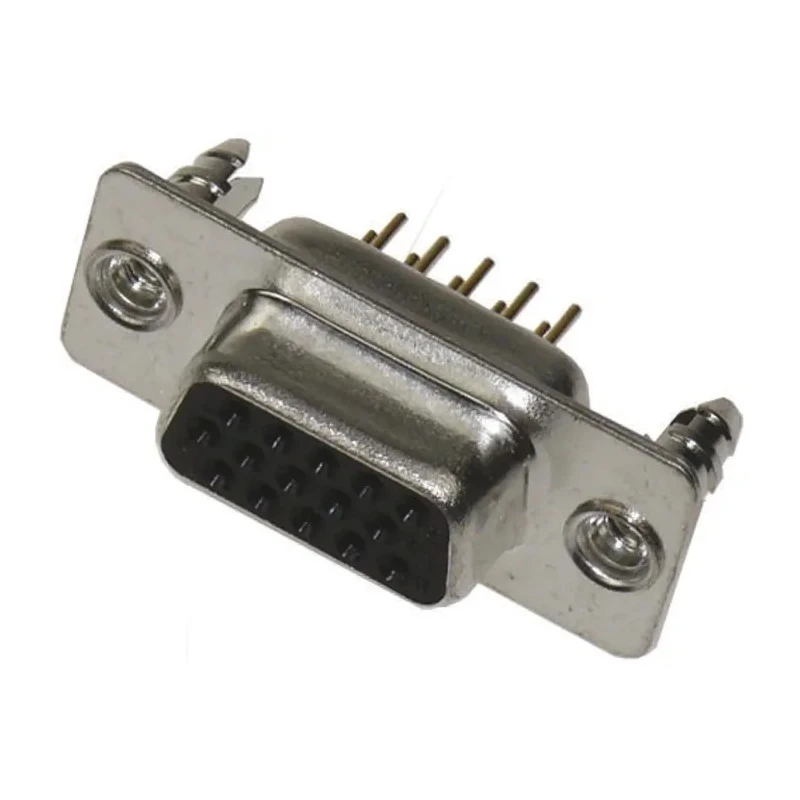

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Threaded Insert Female 09561517512
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- This connector features 15 contacts designed for reliable 2A current handling.
- Constructed with a sturdy steel housing providing mechanical strength and durability.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Designed for through-hole mounting with 4 to 40 UNC threaded inserts for secure installation.
- Operates efficiently in temperatures ranging from -55°C to 105°C.
- Offers a voltage rating of 1kV suitable for various industrial environments.
- Straight orientation with solder termination type simplifies PCB assembly.
- High-density design increases contact capacity by 70% compared to standard D-Sub connectors.
Product Description
HARTING 09561517512 is a high-quality D-Sub 15 Way Straight Connector with a 2.29 mm pitch, designed for through-hole mounting using 4 to 40 UNC threaded inserts. This female connector is built with a robust steel housing for enhanced durability and mechanical strength, suitable for demanding industrial and electronic applications.
The connector supports a current rating of 2A and operates at voltages up to 1kV. It features gold-plated copper alloy contacts that provide excellent electrical performance and corrosion resistance, ensuring long-term reliability. Its operating temperature range from -55°C to 105°C makes it ideal for extreme environmental conditions.
The D-Sub shell size DS-1 and high-density contact arrangement increase connector capacity by 70% over standard models, enabling more compact and efficient designs. The solder termination facilitates secure and stable wiring to PCBs. This connector is widely used in industries such as electronics manufacturing, industrial control systems, and communication equipment.
This connector features 15 contacts designed for reliable 2A current handling. Constructed with a sturdy steel housing providing mechanical strength and durability. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
Designed for through-hole mounting with 4 to 40 UNC threaded inserts for secure installation. Operates efficiently in temperatures ranging from -55°C to 105°C. Offers a voltage rating of 1kV suitable for various industrial environments.
Straight orientation with solder termination type simplifies PCB assembly. High-density design increases contact capacity by 70% compared to standard D-Sub Connectors.
Available from EnvMart's Electronics & Electricals category, this connector offers reliability and performance for professional electronic applications. Browse our full range of D-Sub and power connectors for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 1kV, making it suitable for various industrial environments.
This model is designed for reliable current handling of up to 2A.
It operates efficiently within a temperature range of -55°C to 105°C.
This connector is designed for through-hole mounting using 4 to 40 UNC threaded inserts for secure installation.
The housing is made of steel, while the contacts are made of gold-plated copper alloy for excellent conductivity and corrosion resistance.
This connector features 15 contacts, arranged in a high-density design that increases capacity by 70% compared to standard models.
The pitch size of this connector is 2.29 mm.
This model uses solder termination type, which simplifies PCB assembly.
This connector is a female type, designed for female contact gender.
The D-Sub shell size for this connector is DS-1.
The country of origin for this connector is China.
This connector is widely used in electronics manufacturing, industrial control systems, and communication equipment.
