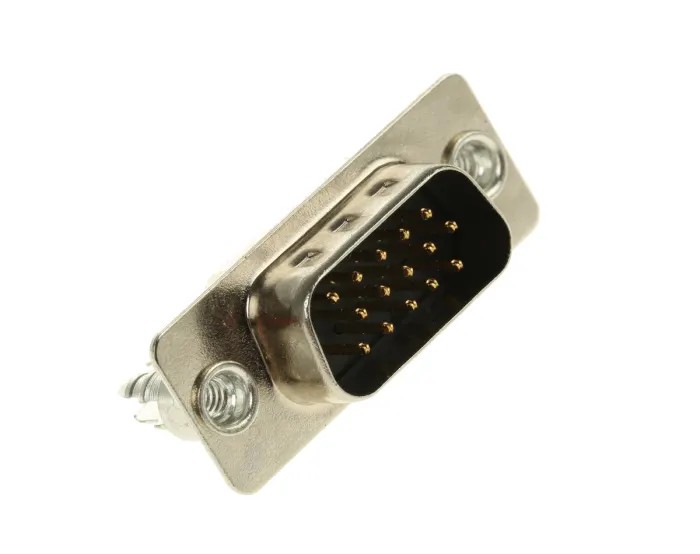

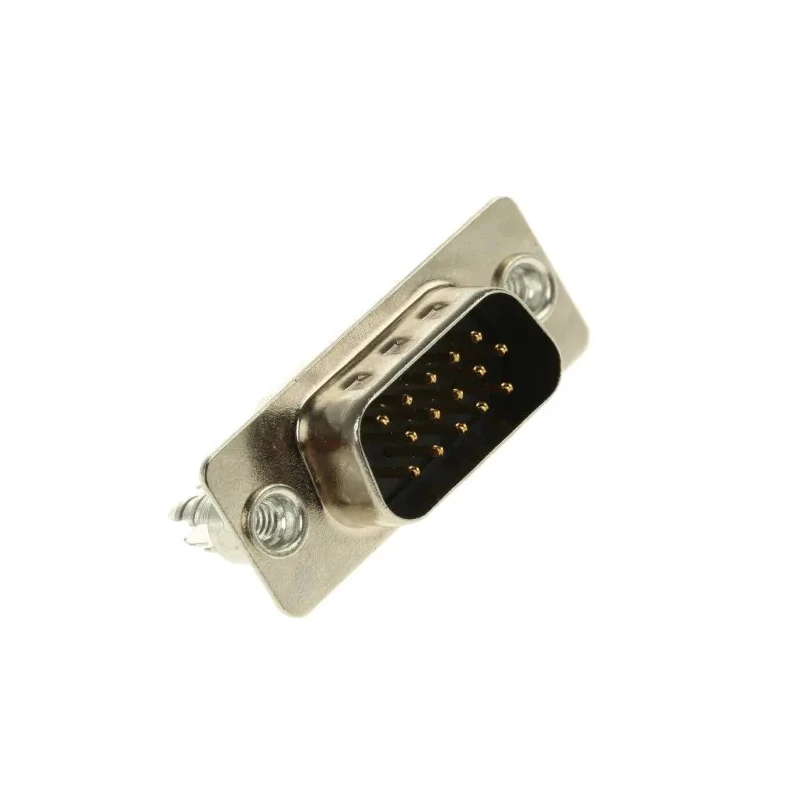

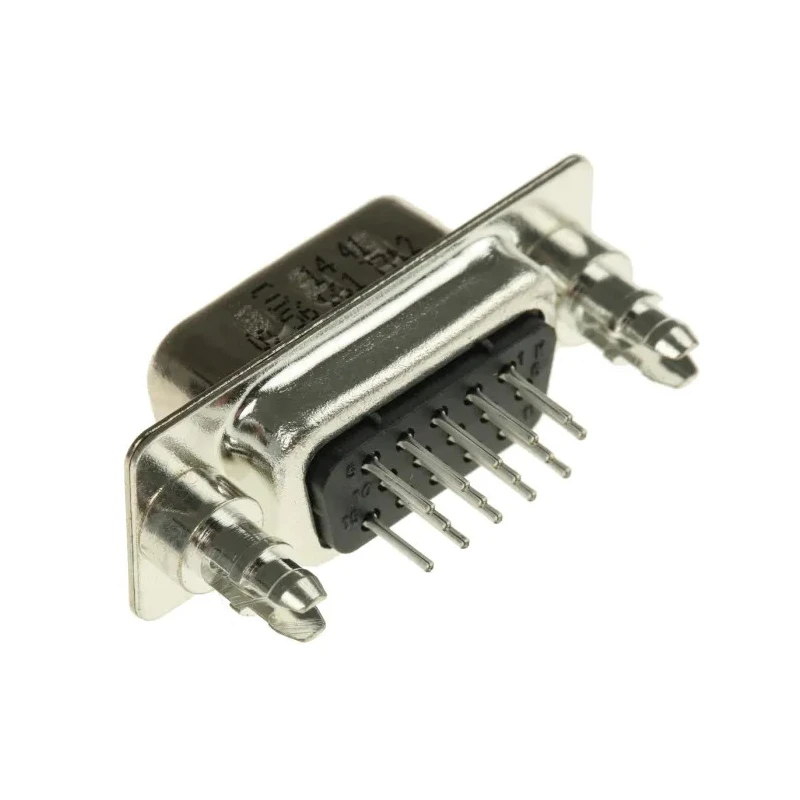

HARTING D-Sub 15 Way Straight 2.29 mm Pitch Through Hole Connector Male, Steel Housing, Gold Plated Contacts 09561617712

HARTING 09561617712 is a premium quality D-Sub Connector designed for industrial and electronic applications requiring reliable, high-density connections. It features a straight orientation male connector with 15 pins spaced at 2.29 mm pitch, ideal for use in power connectors and computing devices. Its robust steel housing offers mechanical strength and effective EMI shielding for electronic environments.

The contacts utilize copper alloy plated with gold to ensure excellent electrical conductivity and corrosion resistance. The connector supports a maximum current of 2A and voltage of up to 1 kV, suitable for demanding electrical requirements. Operating temperature ranges from -55°C to 105°C, making it suitable for harsh industrial and laboratory conditions.

This component is designed for through-hole mounting with 4 to 40 UNC threaded inserts providing secure installation on PCBs and machinery. The solder termination type guarantees stable, long-lasting joints. Its high-density format offers 70% more contacts than standard subminiature connectors, saving space in compact assembly designs.

This D-Sub connector is produced in China and complies with required industrial specifications, although no formal approvals are documented. Its stamped solder pins and tinned metal shell with grounding board locks contribute to its durability and stable operation in electronics manufacturing, automation, and control systems.

The package contains the single male D-Sub connector with the described attributes, ready for integration into electronics assemblies. It is ideal for applications in industrial machinery, electronics manufacturing, power supply units, and computing equipment where secure and dense connections are critical.

Features 15 contacts with gold plated copper alloy materials for enhanced conductivity. Steel housing ensures durability and electromagnetic shielding. Supports current rating of 2A and voltage of 1kV. Operates from -55°C to 105°C, suitable for harsh environments.

Includes 4 to 40 UNC threaded inserts for secure mounting. Solder termination type for reliable PCB connections. Male connector gender with straight orientation. High density design exceeding standard D-sub connectors by 70% contact capacity.
