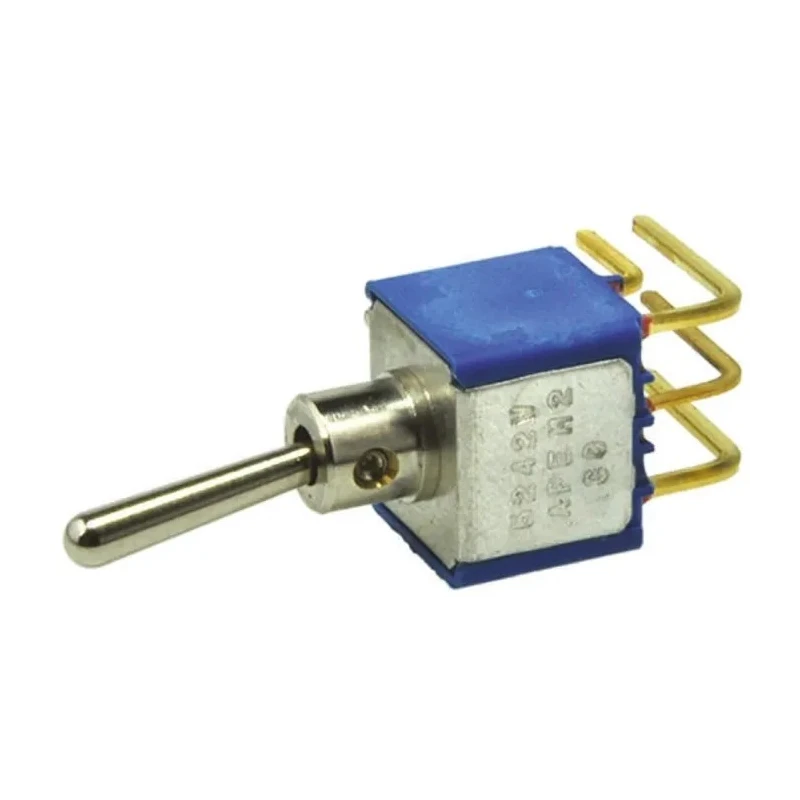

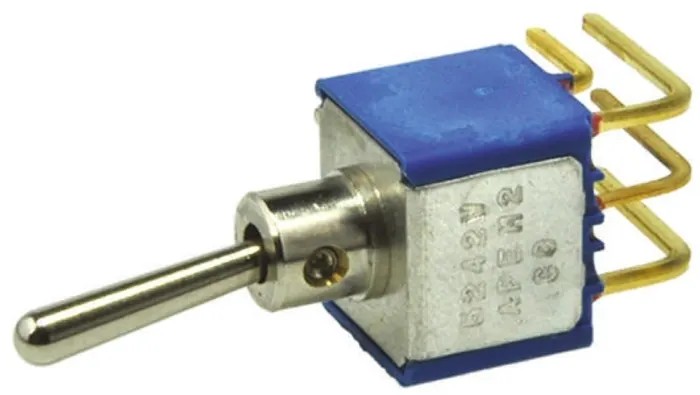

APEM Toggle Switch PCB Mount On-On DPST 24 V DC 250 V AC Nickel Plated Brass Actuator 5246WCDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5246WCDB |
| Width | 12mm |
| Mount Type | PCB |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | PC Terminal |
| Standards/Approvals | CECC, CSA, NFVDE, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 13.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
| RS PRO Toggle Switch, PCB Mount, On-On, DPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- Supports 24 V DC and 250 V AC contact voltages with a 400 mA current rating.
- Features a nickel plated brass actuator with a length of 13.5 mm for durable operation.
- Panel cutout size is 6.5 mm, suitable for standard PCB mounting.
- Mechanical life expectancy is 100,000 operations ensuring long-term durability.
- Operates reliably within a temperature range of -40°C to 85°C.
- Compact dimensions of 36 mm height, 14 mm length, and 12 mm width.
- Epoxy sealed terminals provide protection and compliance with international standards.
Product Description
The APEM 5246WCDB is a high-quality toggle switch designed for PCB mounting applications, providing robust On-On DPST switch operation. It supports contact voltages of 24 V DC and 250 V AC with a current rating of 400 mA, making it well-suited for precise control and automation systems in industrial and commercial environments.
The actuator is crafted from nickel plated brass measuring 13.5 mm in length, enabling durable and smooth switching performance. It fits a panel cutout size of 6.5 mm with compact overall dimensions of 36 mm height, 14 mm length, and 12 mm width, which aid in space-efficient PCB designs.
This toggle switch meets diverse international standards, including CECC, CSA, NFVDE, RoHS, and UL certifications, ensuring safety and reliability. With an epoxy sealed terminal design and mechanical life rated for 100,000 operations, it provides reliable, long service in demanding electrical and automation applications.
Operating temperature ranges from -40°C to 85°C, allowing stable performance under harsh environmental conditions. The PCB mount and DPST configuration facilitate effective control in switching circuits for electronics, industrial automation, and other electrical systems.
Supports dual pole, double throw (DPST) switching configuration for versatile control. Compact and rugged construction with nickel plated brass actuator for longevity. Epoxy sealed terminals enhance durability and environmental protection.
Wide operating temperature range ensures function under varying conditions. Compliant with major international standards and certifications. Ideal for use in industrial, commercial, and automation equipment.
The APEM 5246WCDB toggle switch is an excellent choice for engineers and technicians requiring dependable PCB mount on-on Toggle Switches with proven durability and performance. Explore more switches and components in the Electronics & Electricals category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This toggle switch features a dual pole, double throw (DPST) contact configuration.
The dimensions of this unit are 36 mm in height, 14 mm in length, and 12 mm in width.
The mechanical life expectancy of this toggle switch is rated for 100,000 operations.
It supports contact voltages of 24 V DC and 250 V AC.
The current rating for this toggle switch is 400 mA.
The required panel cutout size for this model is 6.5 mm.
The actuator is made from nickel plated brass, measuring 13.5 mm in length.
This model complies with CECC, CSA, NFVDE, RoHS, and UL standards.
The minimum operating temperature for this unit is -40°C.
It features PC terminals that are epoxy sealed for enhanced protection.
This model is designed for PCB mounting.
