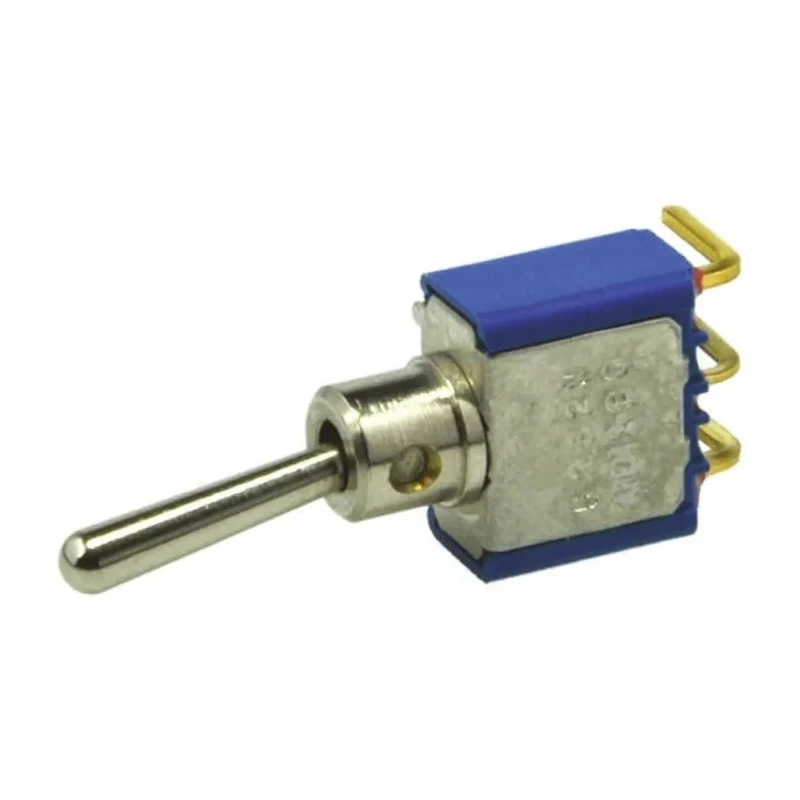

APEM Toggle Switch PCB Mount On-On SPST 24 V dc 250 V ac Nickel Plated Brass Actuator 5236WCDB
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 36mm |
| Length | 14mm |
| Model | 5236WCDB |
| Width | 12mm |
| Mount Type | PCB |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | PC Terminal |
| Standards/Approvals | CECC, CSA, NFVDE, RoHS, UL |
| Switch Operation | On-On |
| Actuator Length | 13.5mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 400mA |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nickel Plated Brass |
| RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- The switch features a single-pole single-throw (SPST) On-On configuration for simple circuit control.
- Its actuator is made from nickel plated brass providing durability and reliability.
- Designed for PCB mounting with PC terminals for easy installation.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Supports a switch contact current of 400 mA for low-power circuits.
- Panel cutout size is precisely 6.5 mm ensuring proper fitment.
- The compact dimensions are 14 mm length, 12 mm width, and 36 mm height.
- Mechanical life rated at 100,000 operations ensures long service life.
Product Description
APEM 5236WCDB Toggle Switch PCB Mount On-On SPST, suitable for precise electrical switching applications, operates at 24 V dc and 250 V ac.
This toggle switch is designed with an On-On single-pole single-throw (SPST) contact configuration, enabling two stable ON positions ideal for controlling circuits that require a simple two-state operation.
The actuator is constructed from nickel plated brass, offering strength, corrosion resistance, and durability essential for repeated mechanical use. Mounting is designed specifically for printed circuit boards (PCB) using reliable PC terminals, facilitating integration into electronic assemblies.
The switch supports a maximum contact current of 400 mA, making it well-suited for low voltage and low current electrical systems. The compact form factor measures 14 mm in length, 12 mm in width, and 36 mm in height, with a panel cutout size of 6.5 mm, allowing for efficient use of space in control panels.
It is engineered for operation within a wide temperature range from -40°C to 85°C, ensuring reliable performance in diverse industrial and commercial environments. Certified under international standards such as CECC, CSA, NFVDE, RoHS, and UL, this switch meets stringent quality and safety requirements for professional use.
The switch features an SPST On-On configuration for straightforward control. Nickel plated brass actuator ensures strength and durability. PCB mount type with PC terminal facilitates easy installation. Operating temperature range from -40°C to 85°C supports harsh environments.
400 mA contact current rating ensures suitability for low power applications. Compact dimensions and precise panel cutout enhance integration. Mechanical life rated for 100,000 operations provides reliability. Compliant with multiple international certifications, guaranteeing quality.
This toggle switch is ideal for use in electrical, industrial automation, control systems, and electronics manufacturing. It provides reliable, long-lasting switching performance for versatile applications.
Explore the full range of Toggle Switches and related electrical components in EnvMart's Electronics & Electricals category, enabling you to find the perfect switch solution for your project or product implementation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole single-throw (SPST) On-On configuration, allowing for two stable ON positions for circuit control.
The dimensions of this switch are 14 mm in length, 12 mm in width, and 36 mm in height.
It supports a maximum contact current of 400 mA, making it suitable for low-power circuits.
The switch operates reliably within a temperature range of -40°C to 85°C.
It is designed for PCB mounting and uses PC terminals for easy installation.
The required panel cutout size for this switch is 6.5 mm.
The actuator is made from nickel plated brass, providing strength and corrosion resistance.
The mechanical life of this toggle switch is rated for 100,000 operations, ensuring reliable performance over time.
This model is certified under CECC, CSA, NFVDE, RoHS, and UL standards, ensuring compliance with quality and safety requirements.
It operates at a contact DC voltage of 24 V and a contact AC voltage of 250 V.
The country of origin for this switch is France.
It is ideal for use in electrical, industrial automation, control systems, and electronics manufacturing.
