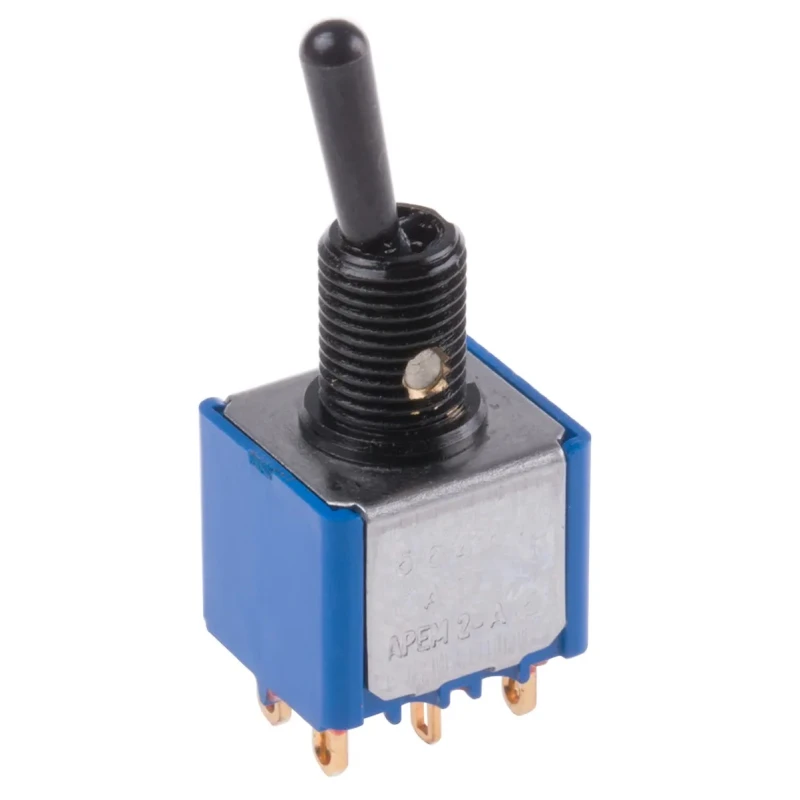

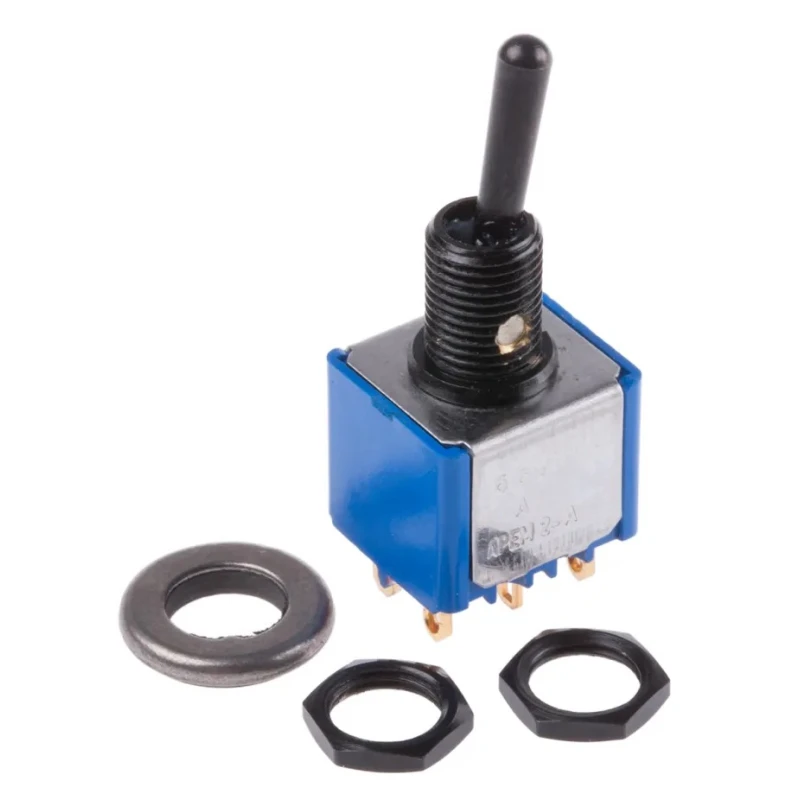

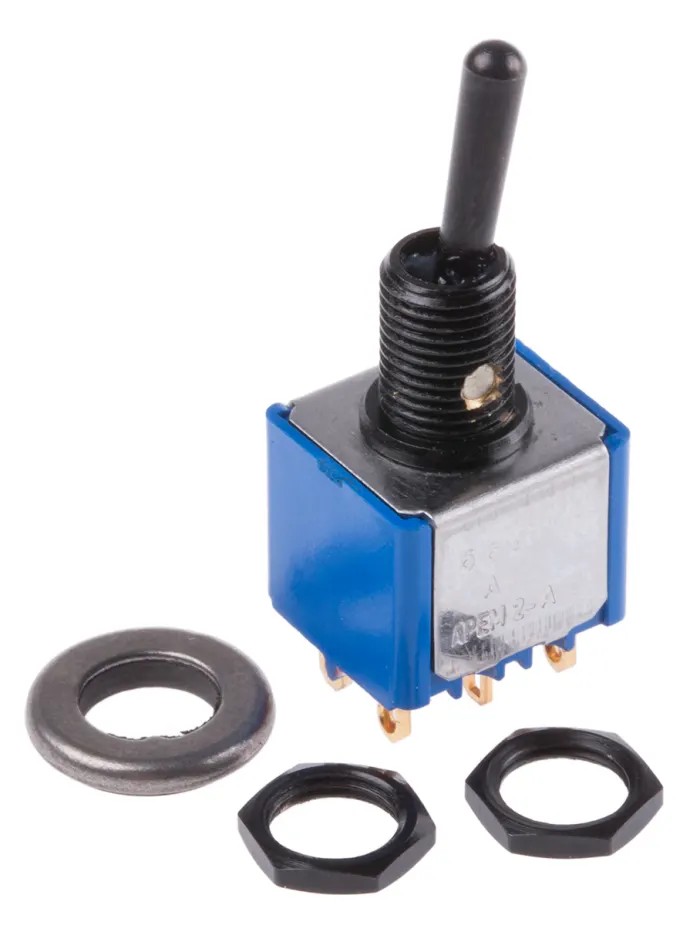

APEM Panel Mount Toggle Switch, On-On, DPDT, Solder Lug Terminal, 24V dc, 250V ac 5646ADBGK

APEM 5646ADBGK is a high-quality panel mount toggle switch designed to provide versatile electrical switching for industrial, commercial, and automation applications. Featuring a double-pole double-throw (DPDT) On-On configuration with solder lug terminals, it supports control of two independent circuits from a single switch unit, making it ideal for electrical panels and control systems.

The switch is rated for 24 volts DC and 250 volts AC operation with a maximum contact current of 4 amps, ensuring reliable performance in moderate power situations. The sturdy nickel plated brass actuator and durable diallyl phthalate case provide long service life and resistance to environmental wear.

This toggle switch is built to endure rigorous use, offering a mechanical life of up to 100,000 operations, suitable for demanding industrial workflows. It operates reliably in a wide temperature range from -40°C to 85°C, making it suitable for cold storage controls, HVAC systems, and other temperature-variable environments.

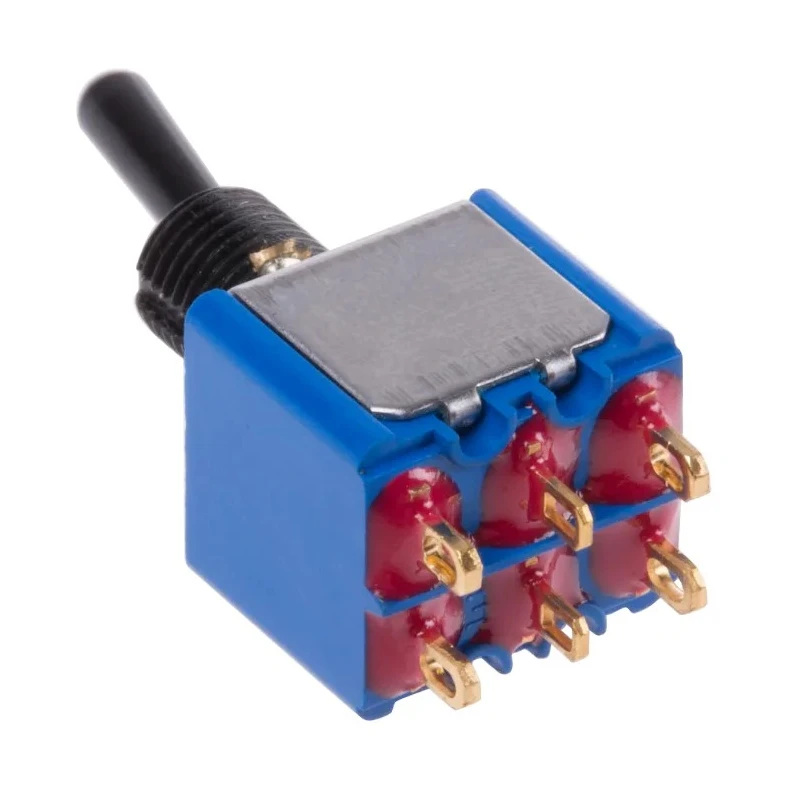

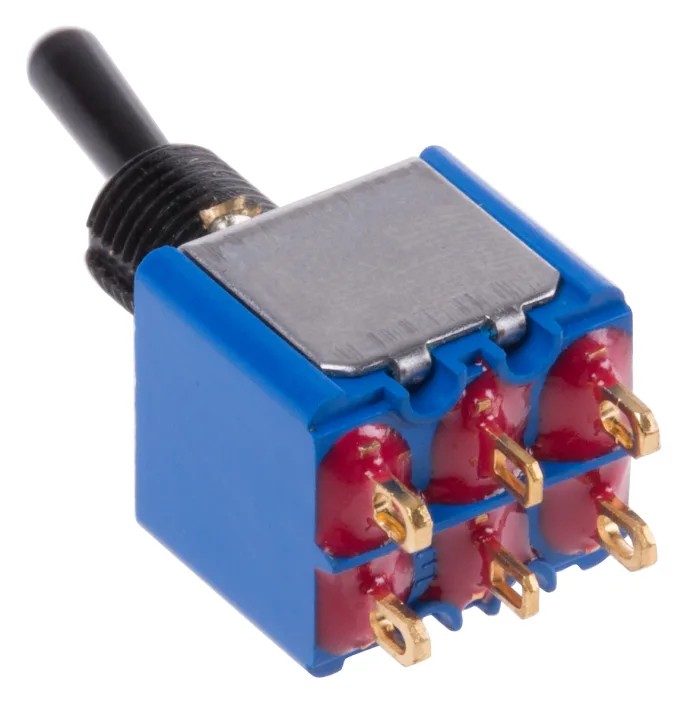

Its compact size with 12 mm width, 14 mm length, and 36 mm height, combined with a 6.5 mm panel cutout size, facilitates ease of installation in standard panels. The solder lug terminals ensure secure and easy electrical connections for customized wiring layouts.

APEM 5646ADBGK complies with international safety and quality standards including UL, CSA, CECC, NFVDE, and RoHS, reaffirming its suitability for regulated industrial applications and export-quality manufacturing.

This toggle switch features a robust nickel plated brass actuator for durability. It supports a switch contact current of 4 amps for reliable circuit control. Designed for panel mounting, it requires a 6.5 mm panel cutout for installation.

The switch offers a mechanical life expectancy of 100,000 operations ensuring long-term performance. Its temperature operating range from -40°C to 85°C suits diverse environmental conditions. The compact dimensions with 12mm width, 14mm length, and 36mm height facilitate versatile equipment integration.

Complies with multiple international approvals including UL, CSA, CECC, NFVDE, and RoHS standards.

This APEM toggle switch is ideal for use in electrical control panels, industrial automation machines, laboratory equipment, HVAC systems, and commercial appliances requiring reliable manual ON/OFF control with DPDT switching. Explore more Toggle Switches from top brands and complete your electrical projects with confidence at EnvMart.
