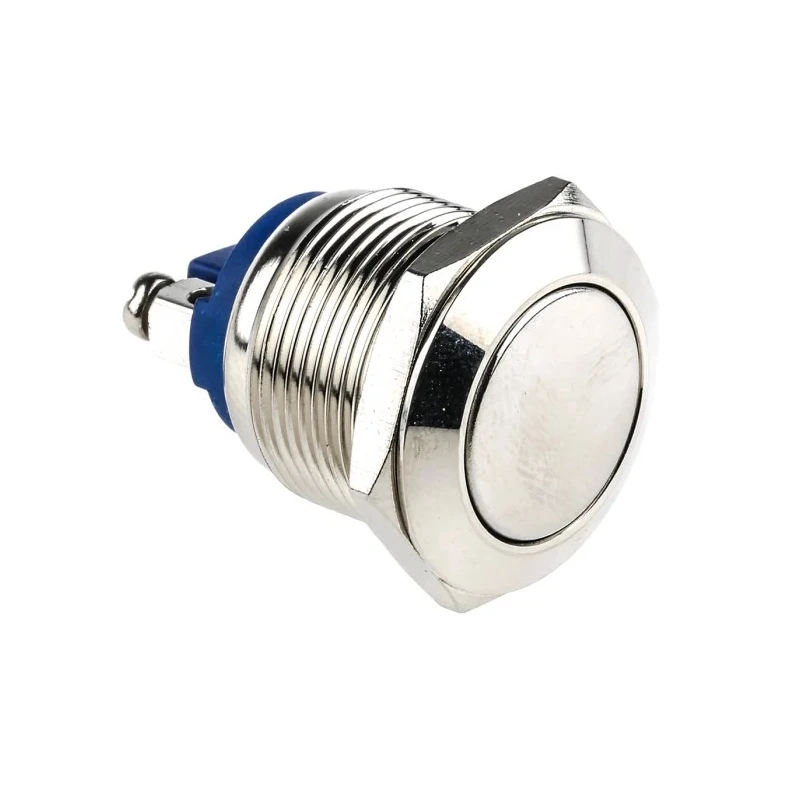

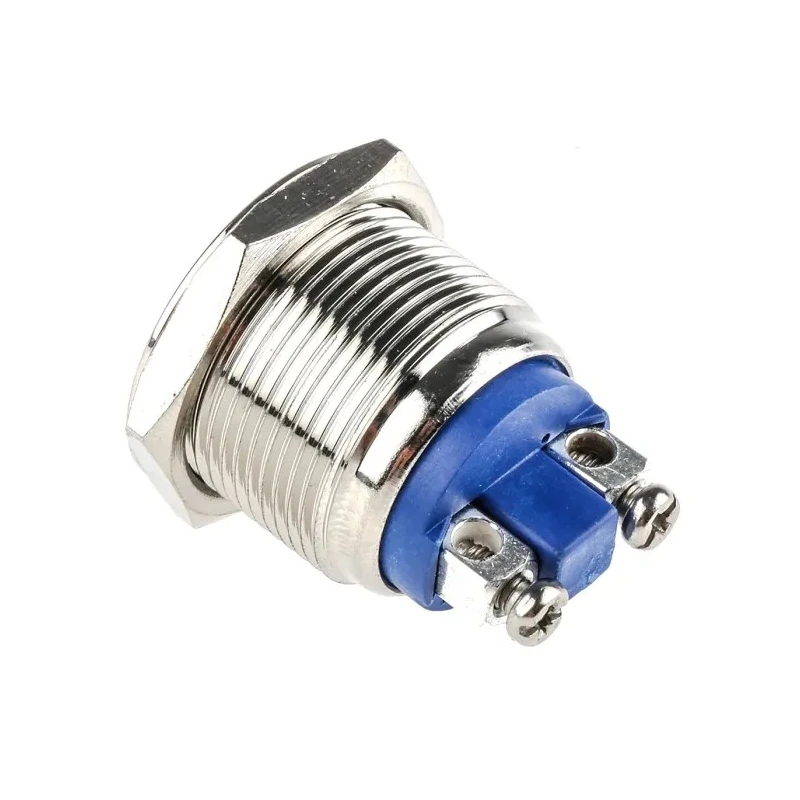

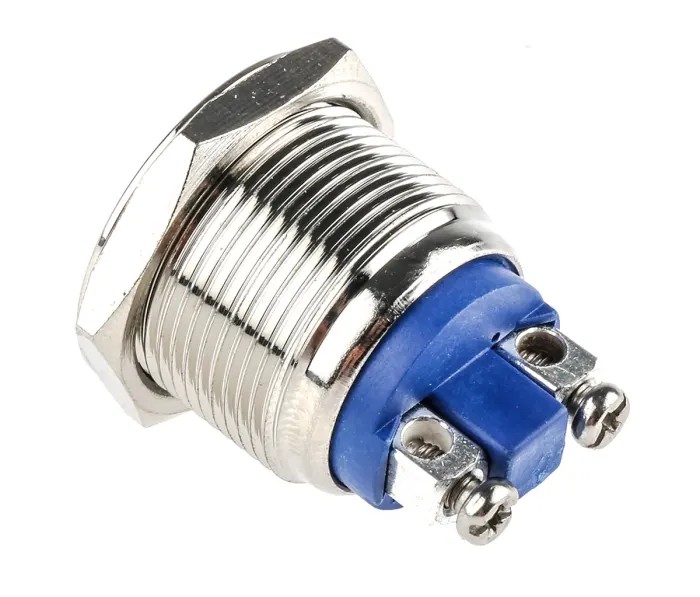

EOZ R Series Push Button Switch, Momentary, Panel Mount, 19.2 mm Cutout, SPST, IP65, 48 V dc 250 V ac R19FFNSTAG
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFNSTAG |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 2A |
| Contact AC Voltage | 250V ac |
Key Features
- The push button features a robust flush shaped design ensuring high reliability.
- Nickel plated brass construction prevents corrosion and enhances durability.
- Non-illuminated momentary switch makes contact only when pressed.
- Designed for panel mounting with screw terminals for secure connections.
- Supports a contact current rating of 2A with SPST switch configuration.
- Vandal resistant with shock resistance up to IK09, suitable for public and industrial environments.
- Sealed to IP65, protecting against dust and low pressure water jets from all directions.
- Operating temperature range from -20°C to 55°C ensures performance in harsh conditions.
Product Description
The EOZ R19FFNSTAG is a high-quality push button switch from the R Series, designed for momentary operation with a panel mount configuration. It features a 19.2 mm cutout size and offers a single-pole single-throw (SPST) contact layout, making it suitable for various industrial and commercial applications.
This robust switch is constructed with nickel plated brass, providing excellent corrosion resistance and durability in demanding environments. The flush shaped button design enhances its reliability and vandal resistance, with shock protection rated at IK09, equivalent to a 10 joules impact.
Certified to RoHS standards and sealed to IP65, the switch is protected against dust ingress and low pressure water jets from all directions, making it ideal for use in exposed or aggressive industrial settings as well as public areas such as ticket machines and kiosks. It supports contact voltages of 48 V dc and 250 V ac, and a contact current of 2A, ensuring compatibility with a wide range of control systems.
The momentary nature of the switch means that electrical contact is made only when the button is pressed, returning to the off position when released. It uses screw terminals for reliable and easy wiring installation.
Robust flush shaped push button with nickel plated brass housing. Sealed to IP65 for dust and low pressure water jet protection. Shock resistant to IK09 for high durability in public and industrial use. Momentary action with SPST switch configuration.
Supports 48 V dc and 250 V ac contact voltage at 2A current rating. Operating temperature range from -20°C to 55°C. Non-illuminated for simple and durable design. Ideal for access control, machinery, kiosks, vending machines, and more.
This EOZ push button switch offers reliable performance in industrial, electrical automation, and control panel applications. Explore the full range of Push Button Switches and control components at EnvMart for your precise needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports a contact current rating of 2A.
The panel cutout size required for installation is 19.2 mm.
This model has an IP rating of IP65, providing protection against dust and low pressure water jets from all directions.
It can handle contact voltages of 48 V dc and 250 V ac.
The operating temperature range is from -20°C to 55°C.
This switch features a single-pole single-throw (SPST) configuration.
It is designed for panel mounting and uses screw terminals for secure connections.
The switch is constructed with nickel plated brass, which enhances its corrosion resistance and durability.
It has a shock resistance rating of IK09, indicating it can withstand impacts equivalent to 10 joules.
No, this model is a non-illuminated momentary switch.
It is certified to RoHS standards, ensuring it meets specific environmental and safety requirements.
This switch is suitable for various applications including access control, machinery, kiosks, and vending machines.
