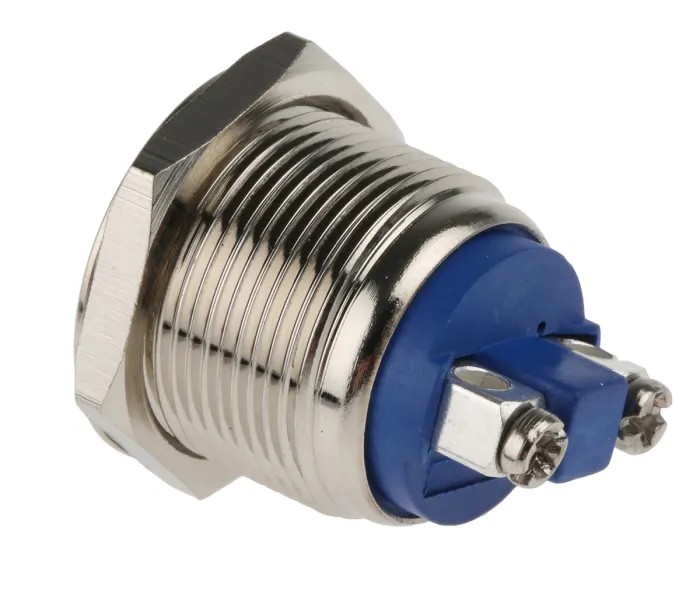

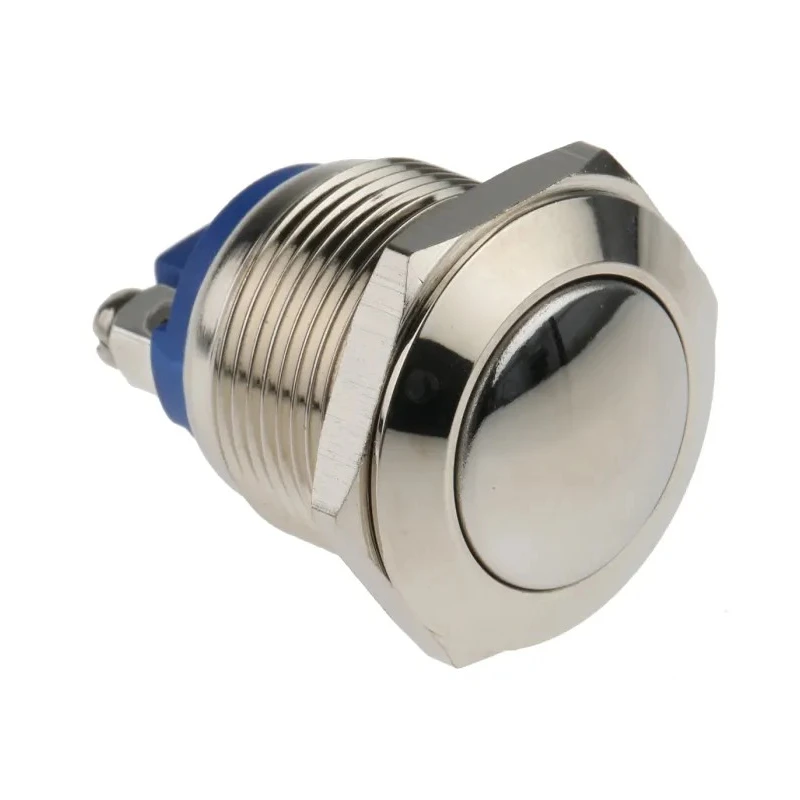

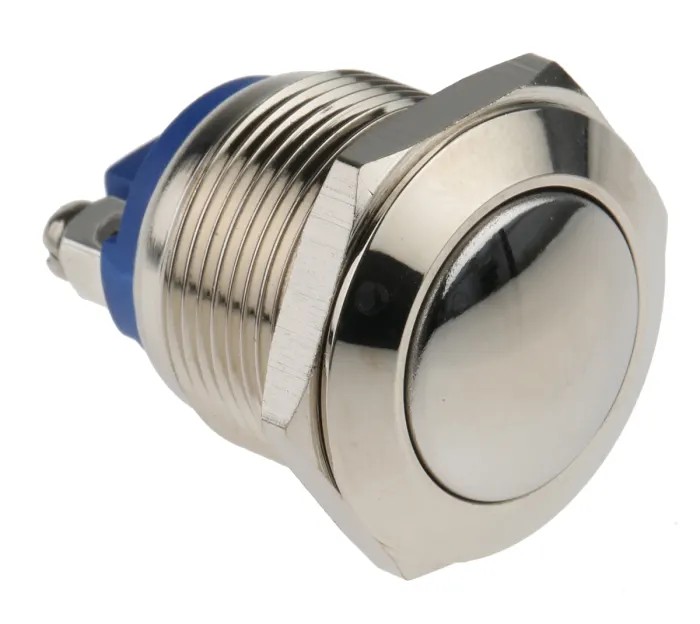

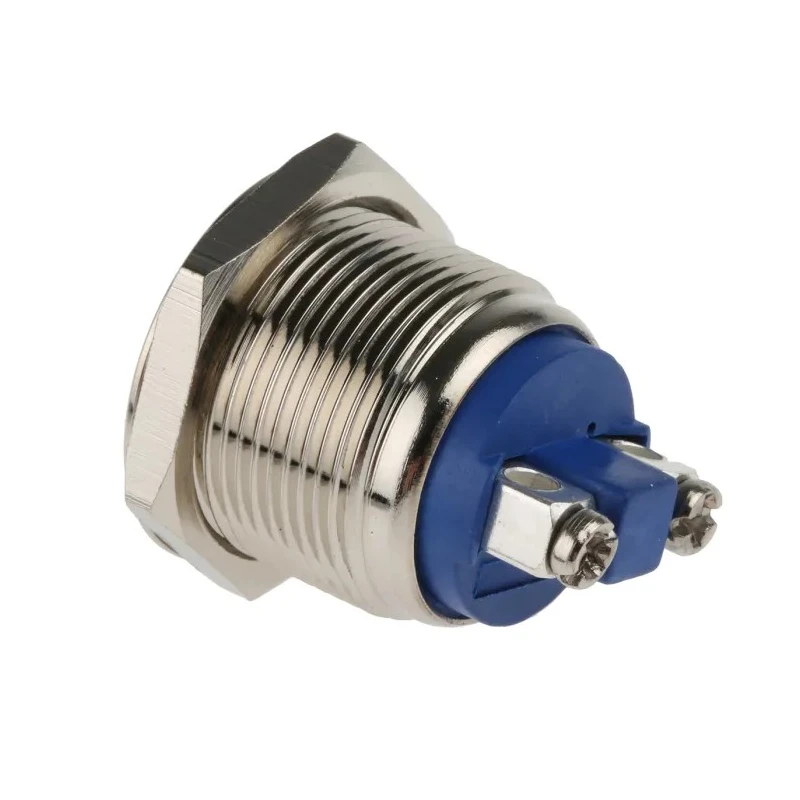

EOZ R Series Push Button Switch Momentary Panel Mount 19.2 mm Cutout SPST IP65 48 V dc R19DFNSTAG
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19DFNSTAG |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Button |
| Switch Contact Current | 2A |
Key Features
- This push button switch features a vandal-resistant design with a durable silver actuator button.
- It provides an IP65 rating ensuring protection against dust ingress and low pressure water jets.
- The switch operates at a contact DC voltage rating of 48 V dc and a contact current of 2A.
- Its robust build supports operating temperatures from -20°C to 55°C, suitable for harsh environments.
- The switch has a screw terminal type for secure electrical connections.
- Non-illuminated button style actuator for reliable momentary operation.
- It complies with RoHS standards, assuring environmental safety.
- Ideal for applications in access control systems, machinery, factory equipment, and public kiosk installations.
Product Description
EOZ R19DFNSTAG Push Button Switch is a high-quality momentary panel mount switch featuring a 19.2 mm cutout size and SPST contact configuration. Manufactured in France, this switch offers reliable 48 V dc operation with a robust screw terminal connection system. It is designed to meet demanding industrial and commercial application requirements.
The switch actuator is silver in color, styled as a button, and is non-illuminated for simplicity and effectiveness. It features vandal resistant construction with an IK09 shock resistance rating, capable of withstanding impacts equivalent to 10 joules. The IP65 ingress protection rating ensures complete protection against dust and protection against low pressure water jets, making it ideal for deployment in exposed or harsh environments.
Operating temperature ranges from -20°C up to 55°C enable versatile use in a wide variety of climate conditions. The 2A contact current rating supports a range of control and signaling tasks reliably. Compliance with RoHS environmental standards ensures safe usage and environmental responsibility.
Typical applications include access control systems, industrial machinery and factory equipment controls, ticket machines, kiosks, vending machines, and any environment that requires a durable, reliable momentary push button switch.
This switch's vandal-resistant design ensures durability in public and industrial settings. Shock resistant to IK09 standard, suitable for impact-prone areas. IP65 rating protects against dust and water ingress, extending operational life.
Silver color, button-style actuator provides tactile control. Suitable for installations with 19.2 mm panel cutouts. Non-illuminated for basic control functions. Manufactured in France with compliance to RoHS standards. Secured with screw terminal connections for reliable electrical contact.
Explore the full range of EOZ Push Button Switches and components in the Electronics & Electricals section at EnvMart for your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 48 V dc.
It has a contact current rating of 2A.
This push button switch features a SPST (Single Pole Single Throw) contact configuration.
This switch has an IP65 rating, providing protection against dust and low pressure water jets.
The operating temperature range for this model is from -20°C to 55°C.
It uses a screw terminal type for secure electrical connections.
The required panel cutout size for this model is 19.2 mm.
The actuator style is a button, and it is non-illuminated for basic control functions.
This switch is manufactured in France.
It complies with RoHS standards, ensuring environmental safety.
Typical applications include access control systems, industrial machinery, factory equipment controls, and public kiosks.
This model has an IK09 shock resistance rating, capable of withstanding impacts equivalent to 10 joules.
