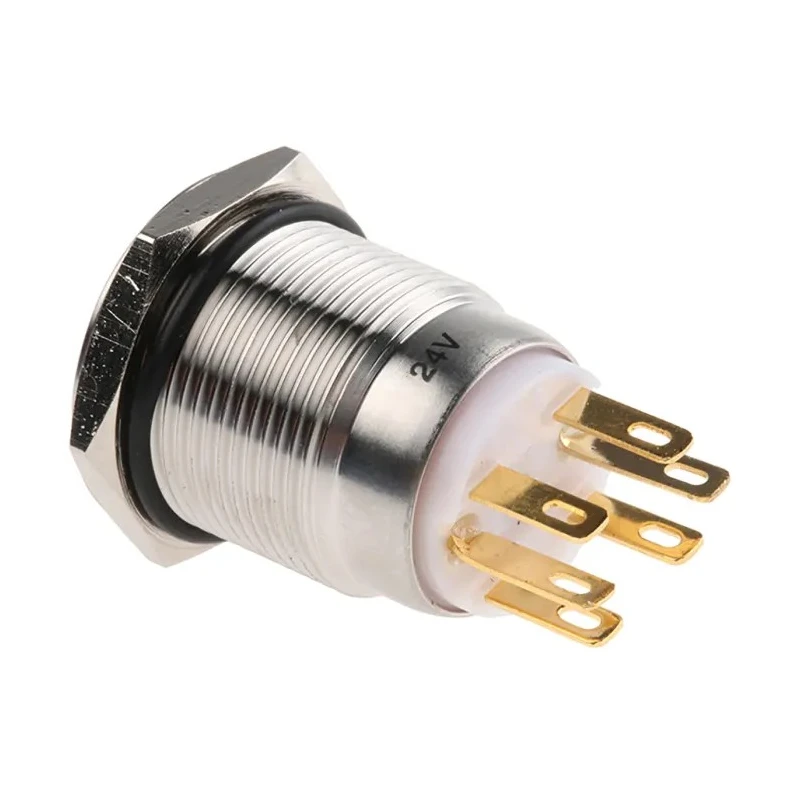

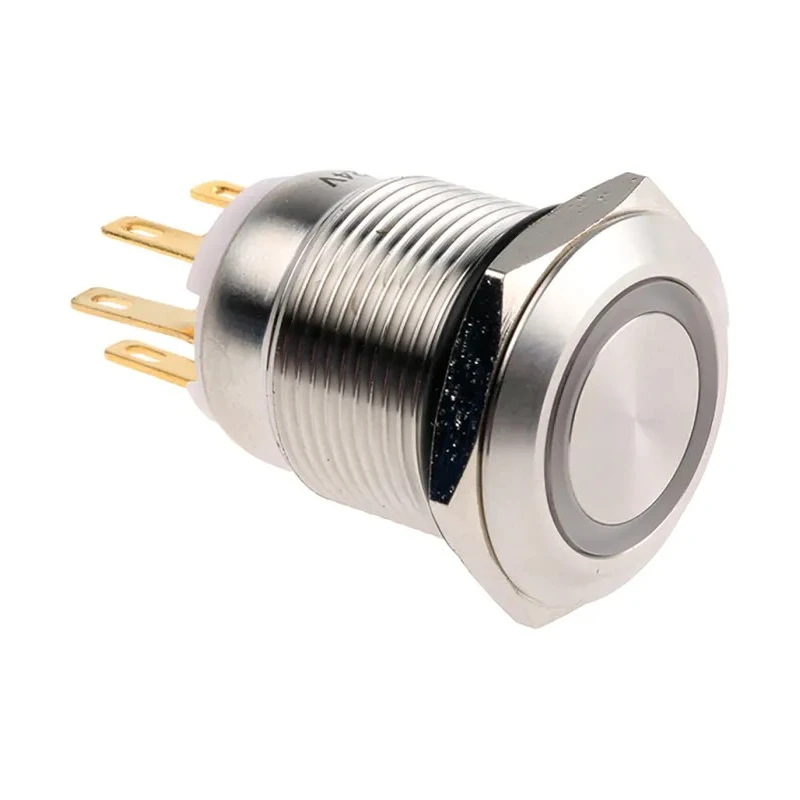

EOZ R Series Illuminated Momentary Push Button Switch Panel Mount 19 mm Cutout DPDT 5A 250V AC Green LED R19FFSSPAGRG24
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFSSPAGRG24 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a vandal-resistant flush shaped button with green LED illumination.
- It operates momentarily with 1 NO/1 NC switch configuration and has a solder terminal.
- Rated for 5A contact current and 250V AC voltage with IP65 protection.
- Constructed from corrosion-resistant stainless steel, suitable for harsh industrial environments.
- Designed to operate between -20°C and 55°C for reliable performance.
- Impact resistant to IK09, making it ideal for exposed public areas and equipment.
- Suitable for access control systems, machinery, kiosks, and vending machines.
Product Description
The EOZ R Series Illuminated Push Button Switch model R19FFSSPAGRG24 is a robust, momentary push button switch designed for panel mounting with a 19 mm cutout. It features a double pole double throw (DPDT) contact configuration and green LED illumination for easy visibility in control panels and operator interfaces.
This push button employs a flush-shaped stainless steel actuator resistant to corrosion, heat, and chemical damage, ensuring durability in demanding industrial and public environments. The momentary operation makes electrical contact only while pressed, returning immediately to the off position once released.
Rated to carry a contact current of 5 amps at 250 volts AC, it is sealed to IP65 standard, offering complete protection against dust ingress and resistance to low pressure jets of water from all directions, making it suitable for outdoor and harsh conditions.
With an impact rating of IK09, equivalent to a 5 kg mass dropped from 200 mm, this switch is highly vandal-resistant and is ideal for applications in access control systems, factory machinery, ticket machines, kiosks, and vending machines where durability and reliability are critical.
The switch includes a green LED illuminated ring that lights when the button is pressed, improving operator feedback and control visibility. It has solder terminals for a secure electrical connection and features a panel mount style for easy installation.
The operating temperature range from -20°C to 55°C ensures dependable function in varied environmental conditions.
Manufactured in France and compliant with RoHS standards, the EOZ R19FFSSPAGRG24 push button switch is a high-quality component designed to withstand tough industrial and public installation requirements.
This product is widely used in industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and public access control installations. Explore additional Push Button Switches and related components at EnvMart for all your industrial control and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration, allowing for versatile control options.
The maximum operating temperature for this model is 55°C, ensuring reliable performance in warmer environments.
This push button switch has an IP65 rating, providing complete protection against dust ingress and resistance to low pressure water jets from all directions.
The switch is rated for a contact current of 5A, making it suitable for various electrical applications.
It features solder terminals, which provide a secure electrical connection for installation.
The minimum operating temperature for this switch is -20°C, allowing it to function in colder environments.
The actuator style is a button, designed for easy operation and user interaction.
It is suitable for applications such as access control systems, factory machinery, kiosks, and vending machines, where durability and reliability are essential.
The switch features a green LED illumination, enhancing visibility during operation.
The required panel cutout size for this switch is 19 mm, designed for panel mounting.
The EOZ R19FFSSPAGRG24 complies with RoHS standards, ensuring it meets environmental safety regulations.
The switch has an impact resistance rating of IK09, making it highly vandal-resistant and suitable for public areas.
