JST BH Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max SBH-001T-P0.5

Free Delivery in India | Lowest Global Shipping Charges

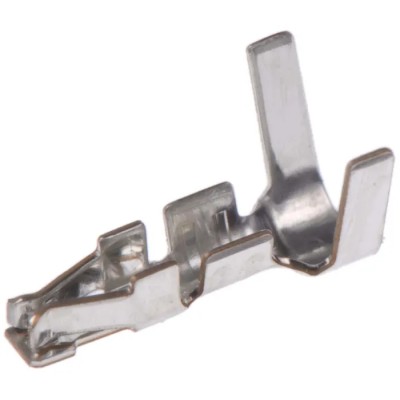

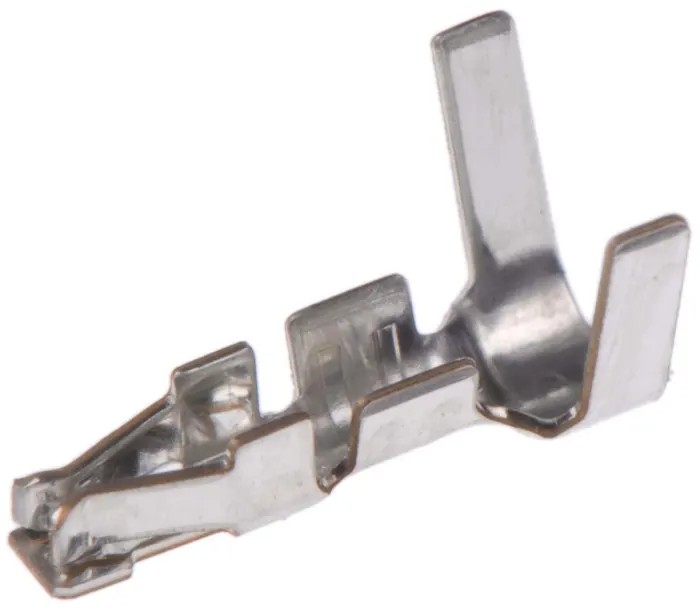

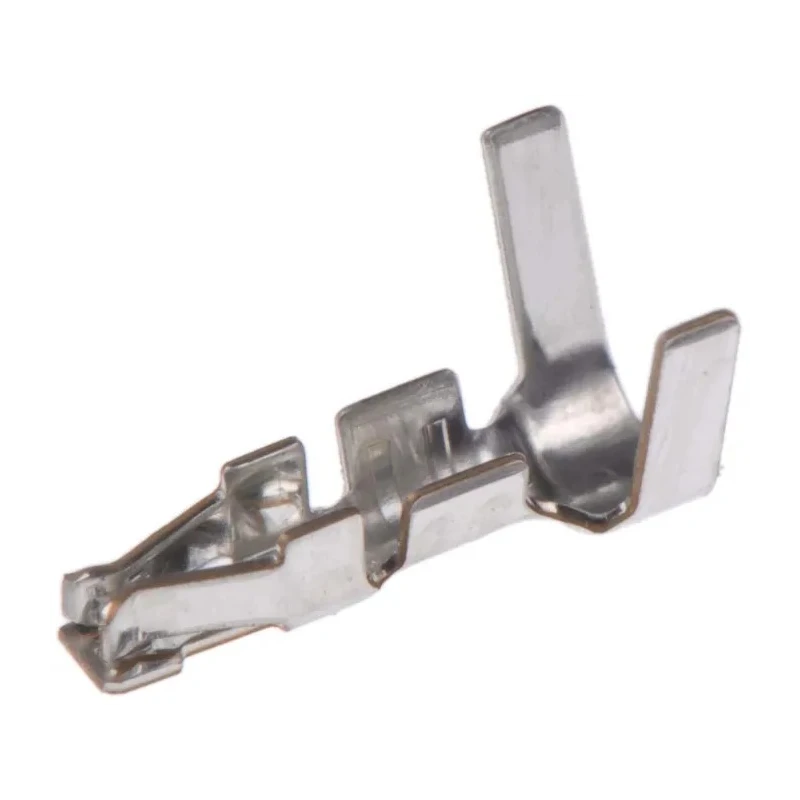

JST BH Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max SBH-001T-P0.5



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Korea
Brand	JST
Current	1A
Model	SBH-001T-P0.5
Gender	Female
Contact Material	Phosphor Bronze
Series	BH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	BHnd BHM Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Designed for use with BH and BHM Connector Housings.
Features tin-plated phosphor bronze contacts ensuring reliable conductivity.
Rated for 1 ampere current capacity suitable for low power applications.
Operates effectively between -25°C to 85°C temperature range.
Provides crimp termination type for firm wire attachment.
Maximum contact resistance of 20 milliohms for efficient signal transmission.
Manufactured in South Korea ensuring robust quality standards.
Compliant with RoHS directive ensuring environmental safety.

Product Description

The JST SBH-001T-P0.5 Female Crimp Terminal is a precision crimp contact from the BH Series designed for reliable electrical connections in electronic and electrical assemblies. It accommodates wire sizes from 28 AWG minimum to 22 AWG maximum, making it versatile for various wiring requirements. Constructed from phosphor bronze and tin-plated for corrosion resistance, this crimp terminal ensures consistent conductivity and durability.

Ideal for use with BH and BHM connector housings, it supports a current rating of 1 ampere and features a maximum contact resistance of 20 milliohms, reducing signal losses in critical applications. The operating temperature range from -25°C to 85°C allows deployment in diverse environments including industrial, manufacturing, and electronic equipment assemblies.

The crimp termination design enables secure and reliable wire connections, improving production efficiency by facilitating rapid assembly. Manufactured to meet stringent quality standards in South Korea, the JST BH series terminals are widely used across electronics manufacturing, telecommunications, and automotive electrical systems.

Designed for use with BH and BHM Connector Housings. Features tin-plated phosphor bronze contacts ensuring reliable conductivity. Rated for 1 ampere current capacity suitable for low power applications. Operates effectively between -25°C to 85°C temperature range.

Provides crimp termination type for firm wire attachment. Maximum contact resistance of 20 milliohms for efficient signal transmission. Manufactured in South Korea ensuring robust quality standards. Compliant with RoHS directive ensuring environmental safety.

This crimp terminal is essential for electronic component interconnections, PCB wiring, and cable assemblies in industrial, laboratory, HVAC, and manufacturing sectors. It enables high reliability and ease of installation in connector systems requiring female crimp contacts.
