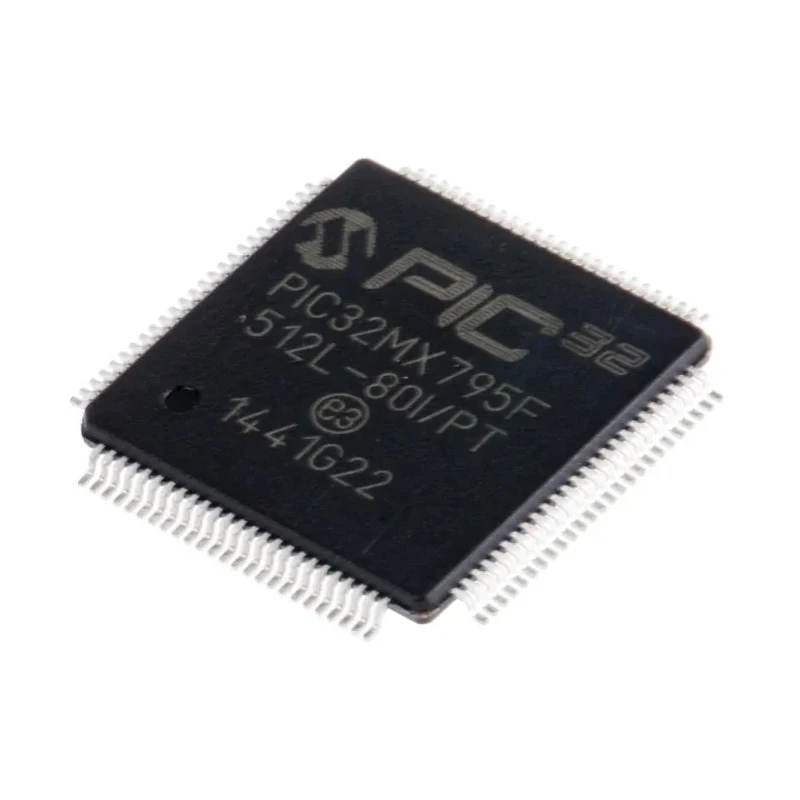

Microchip 32-bit PIC32MX Microcontroller 80 MHz, 12 kB RAM, 512 kB FLASH, 100-Pin TQFP PIC32MX795F512L-80I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC32MX795F512L-80I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC32MX |
| Maximum Operating Temperature | +85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Ram size | 128kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 12, 512kB |
| Maximum Clock Frequency | 80MHz |
| Number of Programmable I/Os | 83 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| High-performance 32-bit microcontrollers designed for | High Impact Graphics/User Interfaces, Ethernet/USB/CAN Connectivity, Multitasking Embedded Control, High Performance Audio |
Key Features
- High-performance MIPS32 M4K core operating at 80 MHz maximum frequency.
- Comprises 12 kB RAM and 512 kB FLASH memory for extensive program and data storage.
- Integrated 83 programmable input/output pins supporting multiple peripheral interfaces.
- Includes USB 2.0 Full-Speed OTG controller, 10/100 Ethernet MAC, CAN 2.0B module, and multiple UART, SPI, and I2C interfaces.
- Wide operating voltage range from 2.3 V to 3.6 V ensuring broad application versatility.
- Supports low-power management modes with fast wake-up and start-up features.
- Equipped with 16 channels of 10-bit ADC and 2 analog comparators for precise signal acquisition.
- Suitable for high-impact graphics, embedded control, audio applications, and connectivity via Ethernet, USB, and CAN.
Product Description
Microchip PIC32MX795F512L-80I/PT is a high-performance 32-bit microcontroller featuring the powerful MIPS32 M4K core that operates at a frequency up to 80 MHz. It contains 12 kB of RAM and a substantial 512 kB of Flash memory, housed in a 100-pin TQFP surface mount package measuring 12 mm x 12 mm with a height of 1.05 mm.
This microcontroller supports a broad range of peripheral interfaces including USB 2.0 full-speed On-The-Go (OTG) controller, 10/100 Ethernet MAC with MII/RMII interface, CAN 2.0B bus module, as well as multiple UART, SPI, and I2C communication protocols. It incorporates 83 programmable I/O pins and features advanced timer modules, DMA channels, and analog peripherals.
It is designed with low power management modes and fast wake-up capabilities, making it ideal for embedded control systems requiring energy efficiency. The built-in 16-channel 10-bit ADC and two analog comparators support precise measurement and control applications.
The device's robust operating temperature range of -40°C to +85°C makes it suitable for demanding industrial environments. Its external graphics interface with a 34-parallel PMP port enables direct LCD driving for advanced user interfaces.
This microcontroller family follows the RISC architecture and is compatible with the MPLAB Harmony Integrated Software Framework, offering simplified development and faster time-to-market for embedded solutions. Its application areas include high-impact graphics, multitasking embedded control, Ethernet, USB, CAN connectivity, and high-performance audio processing.
High-performance MIPS32 M4K 32-bit core running up to 80 MHz. 12 kB RAM and 512 kB Flash memory for program and data storage. Multiple communication interfaces: USB 2.0 OTG, Ethernet MAC, CAN, UART, SPI, and I2C. Low power consumption with fast wake-up.
16-channel 10-bit ADC and 2 analog comparators. Robust operating temperature range for industrial use. 34-pin Parallel Master Port for external LCD interfacing. Supports MPLAB Harmony software development platform. Suitable for embedded control, graphics, connectivity, and audio applications.
Package: 100-pin TQFP, surface mount, dimensions 12mm x 12mm x 1.05mm. Explore more Microchip Microcontrollers and related components on EnvMart's comprehensive electronics catalog for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip PIC32MX795F512L-80I/PT operates at a maximum clock frequency of 80 MHz.
It features 12 kB of RAM and 512 kB of FLASH memory for program and data storage.
The operating voltage range is from 2.3 V to 3.6 V.
This model supports multiple interfaces including USB 2.0 OTG, 10/100 Ethernet MAC, CAN 2.0B, UART, SPI, and I2C.
It comes in a 100-pin TQFP package with dimensions of 12 mm x 12 mm and a height of 1.05 mm.
The operating temperature range is from -40°C to +85°C, suitable for industrial environments.
This microcontroller includes 83 programmable I/O pins.
It is suitable for high-impact graphics, embedded control, audio applications, and connectivity via Ethernet, USB, and CAN.
Yes, it is equipped with 16 channels of 10-bit ADC and 2 analog comparators for precise signal acquisition.
The instruction set architecture is RISC, which is designed for high-performance applications.
It supports low-power management modes with fast wake-up and start-up features, enhancing energy efficiency.
It is compatible with the MPLAB Harmony Integrated Software Framework, facilitating easier development.
