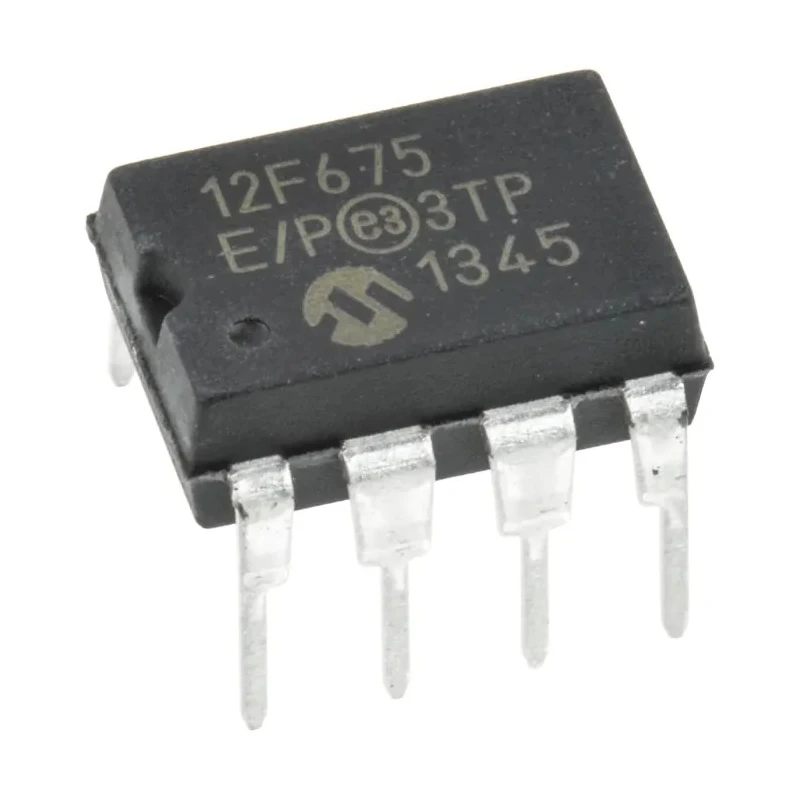

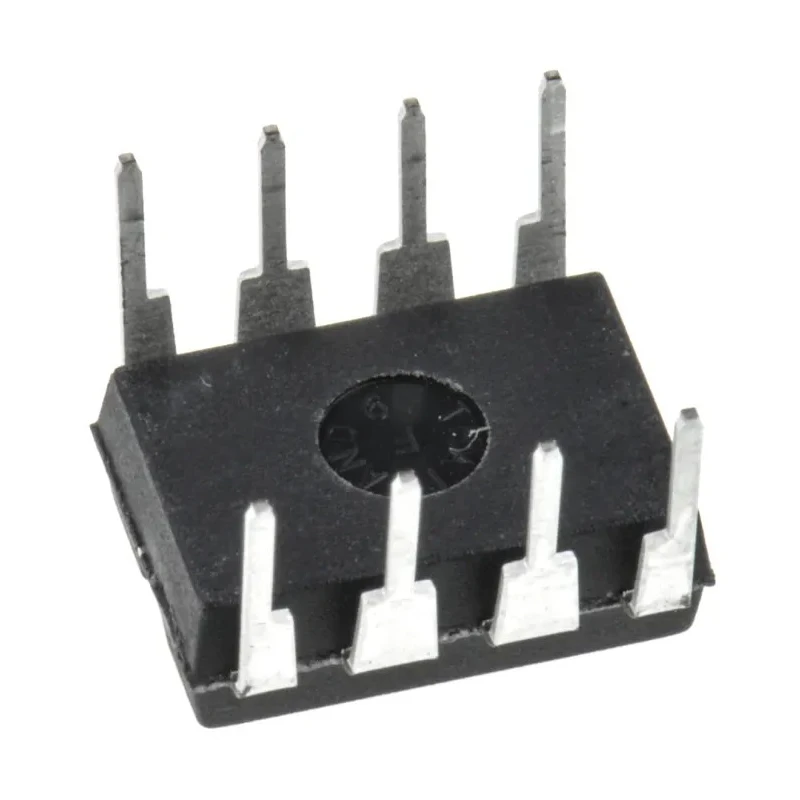

Microchip 8 bit PIC Microcontroller, PIC12F Series, 20 MHz, 1.75kB FLASH, 64 byte RAM, 8-Pin PDIP PIC12F675-E/P

Microchip PIC12F675-E/P is a robust 8-bit PIC microcontroller from the PIC12F series designed for versatile embedded system applications. Incorporating a PIC core architecture and operating at a maximum clock frequency of 20 MHz, it provides reliable processing power suitable for industrial, automotive, and consumer electronics. The microcontroller offers 1.75kB of flash program memory with FLASH program memory type and 64 bytes of RAM, accommodating moderate complexity firmware needs.

This device features 33 programmable I/O pins with 2 analog comparators and 4 channels of 10-bit ADC, enabling precise analog signal interfacing, essential for sensor data acquisition in laboratory, automotive, and control systems. The microcontroller supports SPI interface types and Through Hole mounting with an 8-pin PDIP package, ensuring compatibility with standard board designs and prototyping setups.

The PIC12F675-E/P microcontroller operates over a wide temperature range from -40°C to 125°C, making it suitable for harsh environmental conditions. Its supply voltage ranges from 2 V to 5.5 V, with a maximum power dissipation of 1 W, ensuring low power consumption and thermal management in embedded systems. Physical dimensions of 10.16 mm length, 7.11 mm width, and 4.95 mm height support compact device integration.

Key features include a RISC instruction set with 35 commands, two timers (one 8-bit and one 16-bit), and an internal RC oscillator with ±1% accuracy to provide precise clocking without external components. The microcontroller is programmed via in-circuit serial programming (ICSP), facilitating development and firmware updates.

Operates at 20 MHz clock speed with fast instruction execution. 1.75kB Flash memory supports reliable permanent program storage. 64 bytes RAM for data processing needs within embedded applications. Two analog comparators and 4 ADC inputs support analog interfacing.

Programmed via ICSP for ease of development and debugging. Compact PDIP 8-pin package for through-hole mounting in standard PCB layouts. Wide operating temperature range suits industrial, automotive, and environmental sensors.

This microcontroller series is widely used in automation, sensor interfacing, portable instrumentation, and control systems requiring a small form factor with moderate processing capabilities. The device offers an efficient solution for embedding computing power in constrained spaces with reliable performance across various industrial and consumer environments.
