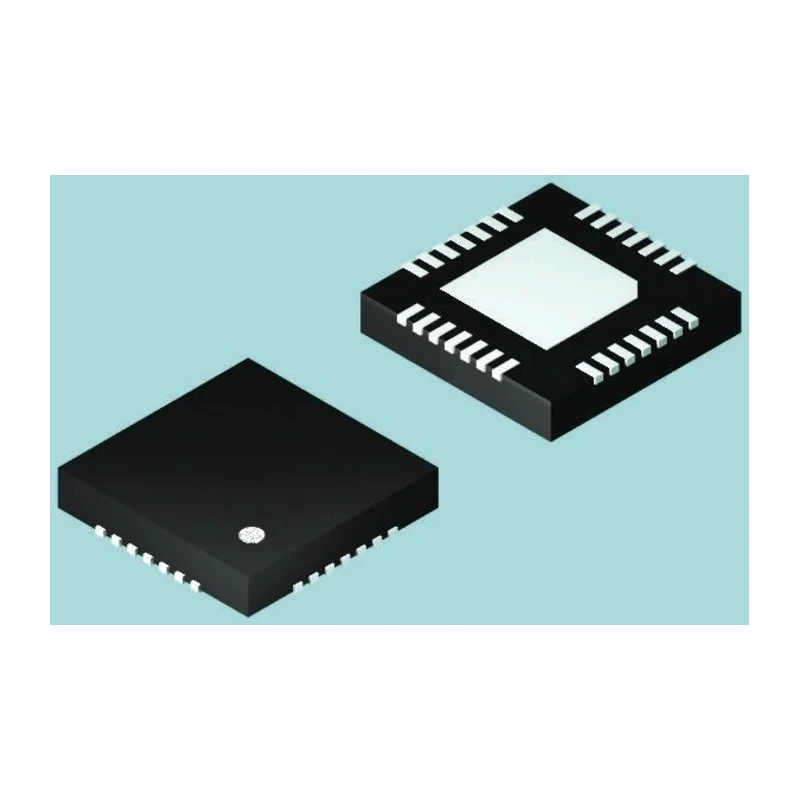

Microchip 8 bit PIC16F Microcontroller 32 MHz 256B FLASH 28-Pin QFN PIC16F1936-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 6mm |
| Model | PIC16F1936-I/ML |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Interface Type | EUSART, I2C, LIN, RS232, RS485, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Supports up to 25 programmable input/output pins.
- Operates from a minimum supply voltage of 1.8V to a maximum of 5.5V.
- Features an internal 32 MHz oscillator with ±1% accuracy.
- Contains 512 bit RAM and 256 byte EEPROM for data storage.
- Equipped with multiple interfaces including EUSART, I2C, LIN, RS232, RS485, and SPI.
- Includes 11 channels of 10-bit Analog to Digital Converters (ADCs).
- Built with low power nanoWatt XLP technology for efficient energy use.
- Operates reliably from -40°C to 85°C temperature range.
Product Description
Microchip PIC16F1936-I/ML is an 8 bit PIC microcontroller offering a maximum clock frequency of 32 MHz and a program memory size of 256 bytes FLASH. Housed in a compact 28-pin QFN package, this device supports 25 programmable I/O pins and provides an internal oscillator with ±1% accuracy from 31 kHz to 32 MHz.
This microcontroller features 512 bits of RAM and 256 bytes of Data EEPROM, supporting efficient data handling for embedded applications. It operates over a wide supply voltage range from 1.8V to 5.5V with a maximum power dissipation of 800mW, making it suitable for portable and energy-conscious designs.
The PIC16F1936-I/ML includes diverse communication interfaces such as EUSART, I2C, LIN, RS232, RS485, and SPI, facilitating versatile system integration. It also integrates 11 channels of 10-bit ADCs and digital-to-analog converters with 5-bit resolution, offering ample options for analog signal processing.
Additional features include multiple timers, hardware stack depth of 16 levels, two analog comparators, and support for in-circuit debugging and programming through ICSP and ICD. The device is built on RISC architecture, delivering up to 8 MIPS processing speed.
The unit is compliant with RoHS environmental standards, ensuring its suitability for green manufacturing. The operating temperature range from -40°C to 85°C supports robust use in various industrial and commercial environments.
Up to 32 MHz internal oscillator with ±1% accuracy. Supports nanoWatt XLP low power technology. On-chip capacitive touch sensing capability with 8 mTouch channels. Multiple serial communication interfaces including SPI and I2C.
Robust operating temperature range and power supply flexibility.
This microcontroller is ideal for embedded systems in industrial automation, automotive electronics, consumer appliances, and Internet of Things (IoT) devices requiring reliable, low-power processing capabilities.
Explore a broad range of Microchip products and solutions at EnvMart to meet your Microcontroller and embedded design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F1936-I/ML microcontroller has a maximum clock frequency of 32 MHz.
It operates reliably within a temperature range of -40°C to 85°C.
This microcontroller supports up to 25 programmable input/output pins.
The microcontroller operates with a supply voltage ranging from 1.8V to 5.5V.
It has a program memory size of 256 bytes FLASH.
This model features 512 bits of RAM for data handling.
The PIC16F1936-I/ML is housed in a compact 28-pin QFN package.
The maximum power dissipation for the PIC16F1936-I/ML is 800 mW.
The dimensions are 6 mm in length and 6 mm in width, with a height of 950 μm.
Yes, it is compliant with RoHS environmental standards, ensuring suitability for green manufacturing.
