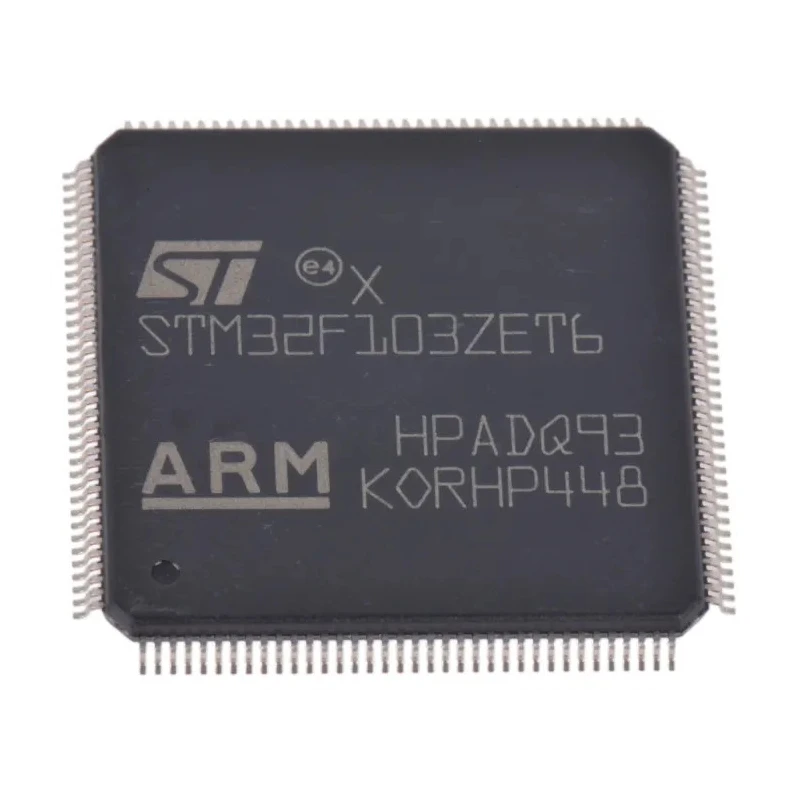

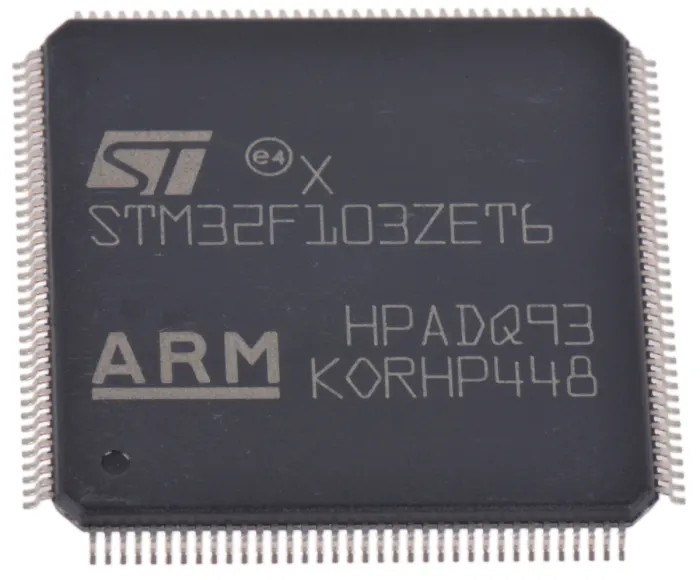

STMicroelectronics STM32F1 Series 32 bit ARM Cortex M3 Microcontroller 72 MHz 512kB FLASH 144-Pin LQFP STM32F103ZET6

STMicroelectronics STM32F103ZET6 is a high-performance 32-bit ARM Cortex M3 microcontroller designed for embedded applications requiring real-time capabilities, low power consumption, and robust peripherals.

Operating at 72 MHz, this STM32F1 Series microcontroller combines up to 512kB of FLASH program memory and 64kB of RAM, providing ample space for complex firmware and data processing.

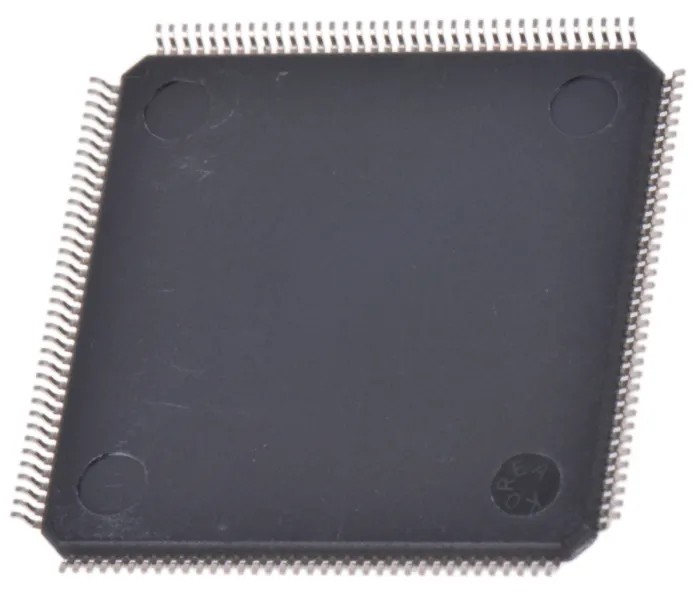

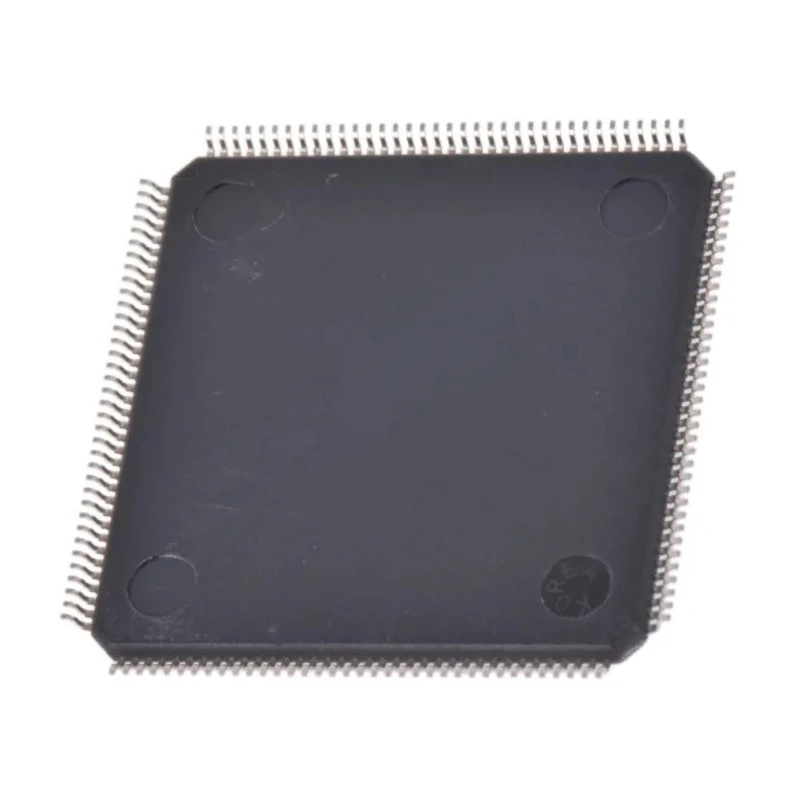

Cased in a 144-Pin LQFP surface mount package measuring 20.2 mm by 20.2 mm by 1.45 mm, it is suitable for compact PCB designs and integration into space-constrained industrial, automotive, and consumer electronics systems.

The device features a 32-bit RISC ARM Cortex M3 core with 21 analog-to-digital converters at 12-bit resolution, six timers to support diverse timing functions, and operates at a voltage range from 2V to 3.6V. It offers low power dissipation of 666mW and can reliably operate in temperature conditions from -40°C to +85°C, making it well suited for harsh industrial and automotive environments.

This microcontroller supports applications in motor drives, HVAC controls, industrial automation, PC peripherals, and gaming devices. Its compatibility with cross-family pin-to-pin and peripheral software simplifies development and integration into existing designs.

Features a 32-bit RISC architecture with ARM Cortex M3 core for efficient processing. Operates at a maximum clock frequency of 72 MHz ensuring fast computation. Includes 512kB of program memory and 64kB RAM for versatile applications.

Supports 21 ADC channels with 12-bit resolution for precise analog inputs. Operates at supply voltage range of 2V to 3.6V for low power consumption. Has six timers to support complex timing applications. Package dimensions are compact with 20.2 mm length, 20.2 mm width, and 1.45 mm height.

Designed for operation in temperature range from -40°C to +85°C suitable for industrial environments. Low power dissipation of 666mW enhances energy efficiency in embedded systems. Compliant with FBI standards ensuring reliable quality and performance.

Set contains 1 Pc STM32F103ZET6 Microcontroller in 144-Pin LQFP package. Explore more industrial-grade Microcontrollers and electronic components from STMicroelectronics in EnvMart’s extensive Semiconductor catalog.
