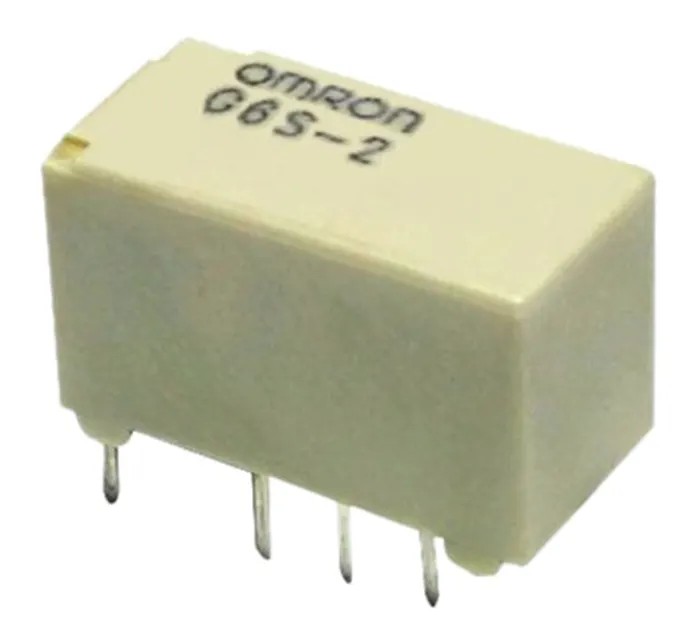

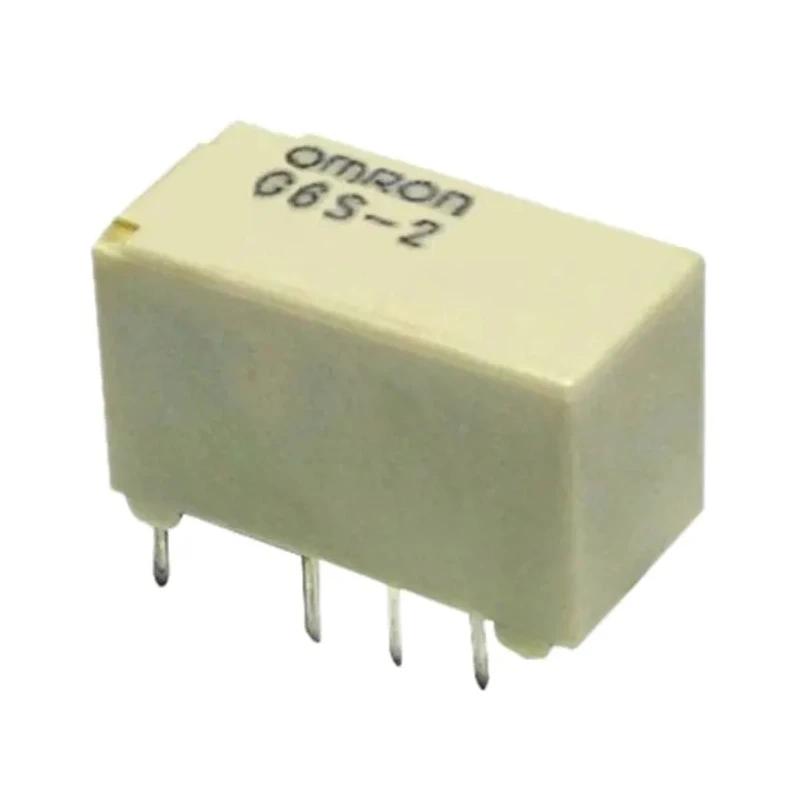

Omron PCB Signal Relay 9V DC Coil 2A DPDT 9.2x7.3x14.8 mm G6S-2-Y DC9
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2-Y DC9 |
| Width | 7.3mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 9V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features
- This ultra-miniature signal relay features a compact design measuring 9.2mm height, 7.3mm width, and 14.8mm length.
- It supports switching AC voltage up to 250V and DC voltage up to 220V for versatile usage.
- The relay coil resistance is 178 ohms consuming a low coil power of 140mW to enhance energy efficiency.
- Gold plated contacts provide reliable conduction with high dielectric strength and impulse withstand voltage.
- Operating temperature ranges from -40°C to 85°C ensuring durability in diverse environments.
- Mount type is PCB with PCB terminal connections for easy circuit integration.
- Compliant with RoHS standards and certified for EN60950 and EN41003 supplementary insulation.
Product Description
Omron G6S-2-Y DC9 PCB Signal Relay is an ultra-miniature double-pole double-throw (DPDT) relay designed for efficient switching in electronic circuits. With a coil voltage of 9V DC and a switching current rating of 2A, it provides reliable performance in signal relay applications. The relay's compact dimensions (9.2mm height, 7.3mm width, and 14.8mm length) make it suitable for PCB mounting in dense circuit designs.
This relay supports a maximum switching AC voltage of 250V and DC voltage of 220V, enabling its use in diverse electrical and automation systems. The gold plated contacts ensure stable conduction reliability and longevity. The coil resistance of 178 ohms and low coil power consumption of 140mW contribute to energy-efficient operation.
Balanced for durability, it operates reliably in temperature ranges from -40°C to 85°C, suitable for industrial, manufacturing, and control system environments. Its robust design features high dielectric strength insulation and capability to withstand strong impulse voltages, meeting Bellcore and EN standards.
Mount type is through-hole PCB with standard PCB terminals for straightforward installation in printed circuit boards. The relay complies with RoHS directives and has certifications for product safety and insulation standards EN60950 and EN41003.
This product is ideal for industrial automation, electronic device manufacturing, signal conditioning, and control equipment. Its sealed construction offers protection against environmental contaminants, enhancing reliability in harsh conditions.
Compact size and low power coil make it suitable for energy-saving and space-constrained applications. The gold plated contact material reduces contact resistance and ensures superior electrical performance. Omron's quality and adherence to international standards provide assured performance and safety.
Explore related Signal Relays and components in the Electronics & Electricals category on EnvMart for comprehensive solutions in relay applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a height of 9.2mm, a width of 7.3mm, and a length of 14.8mm, making it an ultra-miniature relay suitable for PCB mounting.
The relay supports a maximum switching AC voltage of 250V and a DC voltage of 220V, allowing for versatile usage in various applications.
It operates with a coil voltage of 9V DC and has a low power consumption of 140mW, enhancing energy efficiency in applications.
This model features a double-pole double-throw (DPDT) contact configuration, providing flexibility in circuit design.
The coil resistance of the Omron G6S-2-Y DC9 is 178 ohms, which is essential for determining the current flow through the coil.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
The relay is designed with PCB terminals, facilitating straightforward installation in printed circuit boards.
The contacts are made of gold plated material, which ensures stable conduction and reduces contact resistance.
Yes, it complies with RoHS directives and is certified for EN60950 and EN41003 standards, ensuring product safety and insulation quality.
This model is ideal for industrial automation, electronic device manufacturing, signal conditioning, and control equipment.
The G6S-2-Y DC9 relay has a switching current rating of 2A, which is crucial for its performance in signal relay applications.
This relay belongs to the G6S series, which is known for its compact design and efficient switching capabilities.
