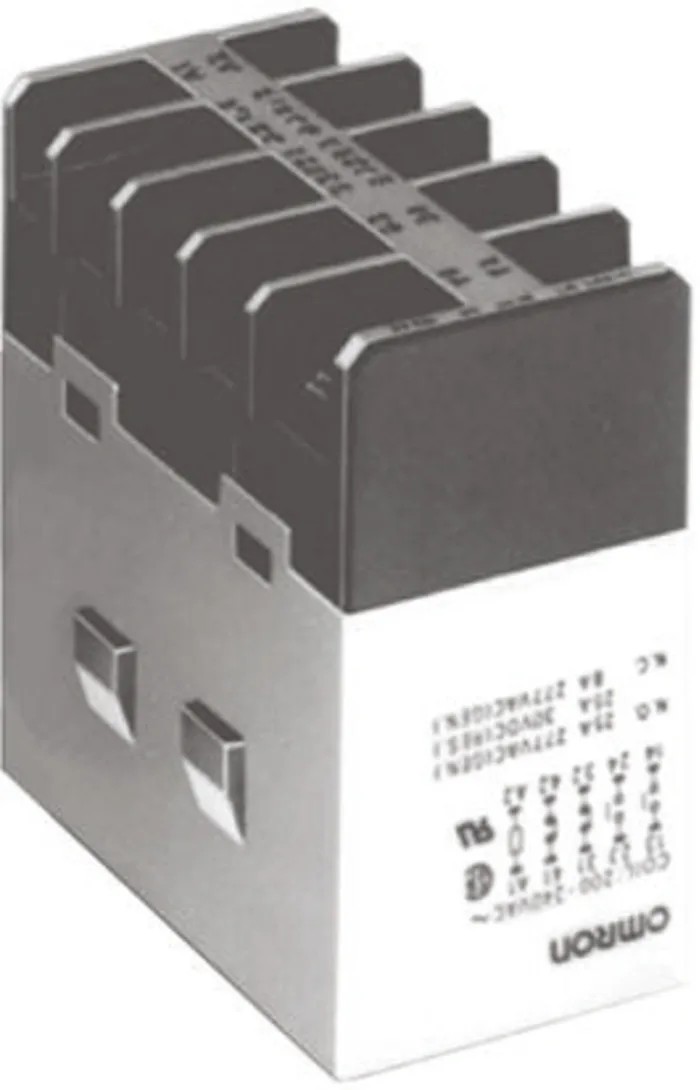

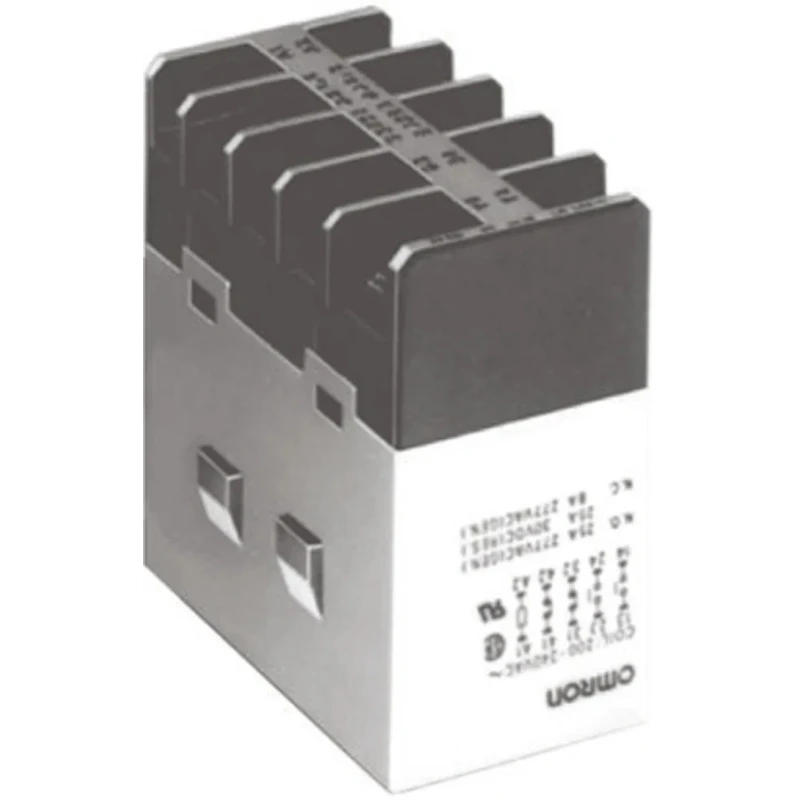

Omron Panel Power Relay 240V Coil Voltage 25A Switching Current 3PDT G7J-3A1B-B 24VDC

The Omron G7J-3A1B-B 24VDC Panel Power Relay is a high-quality, compact electromechanical switching device designed primarily for industrial automation and control panels. Featuring a coil voltage rating of 240V and supporting a switching current of 25A, this 3PDT (three-pole double throw) relay provides robust and reliable performance for a variety of electrical switching needs.

This power relay is constructed for panel mounting with screw terminal connections, ensuring secure and stable wiring suitable for high current operations. The device is engineered to function efficiently within a wide temperature range from -25°C to 60°C, making it suitable for typical indoor industrial ambient conditions.

Its contact configuration with low resistance of 100mΩ helps minimize power losses during operation. The relay allows AC voltage switching up to 250V and DC voltage switching up to 100V, providing versatility in both AC and DC applications. Coil resistance is specified at 288Ω, with a coil power consumption of 2.6W, ensuring predictable and efficient actuation.

Omron G7J series relays comply with recognized safety standards including CSA and UL approvals, providing assurance of safety and quality. Applications include motor control switching within automation panels, multi-circuit switching in industrial control cabinets, power distribution switching in machinery, and signal/load separation in electrical control systems. Its reliable operation makes it an excellent choice for contactor interlock schemes and industrial electrical installations.

This panel power relay has compact dimensions of 64mm height, 51.5mm length, and 34.5mm width, making it suitable for space-conscious control enclosure installations. Compact electromechanical relay suitable for industrial control panels.

Supports three-pole double-throw switching for versatile circuit applications. Rated for AC switching up to 250V and DC switching up to 100V. Low contact resistance of 100mΩ reduces power loss during operation. Screw terminal type ensures secure, high-current wiring connections.

Operates reliably within temperature range of -25°C to 60°C. Coil power consumption of 2.6W with coil resistance of 288Ω. Meets CSA and UL standards guaranteeing safety and compliance. Ideal for motor control switching, power distribution, and contactor interlock schemes.
