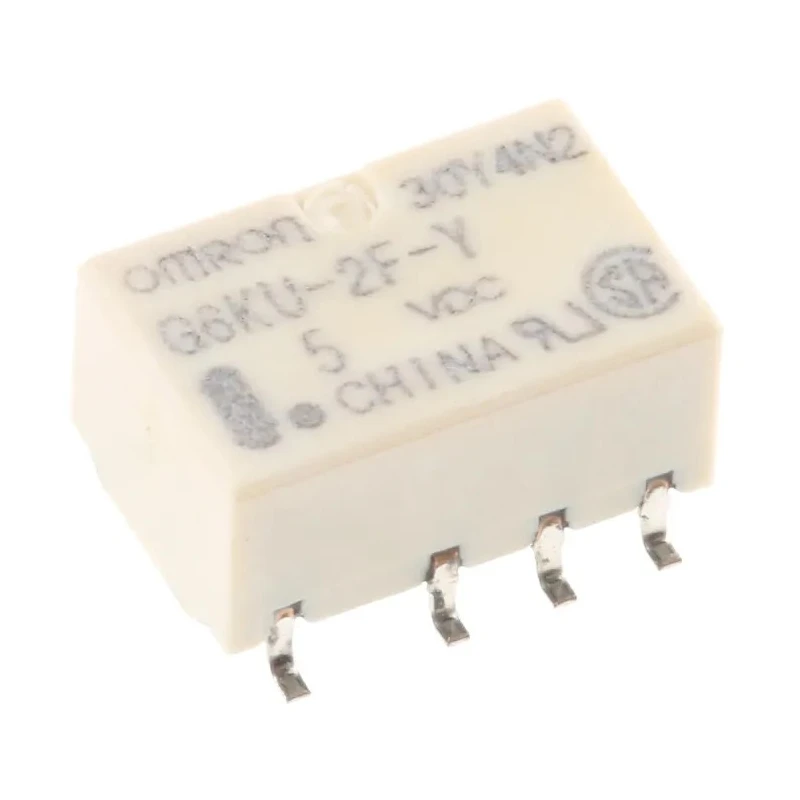

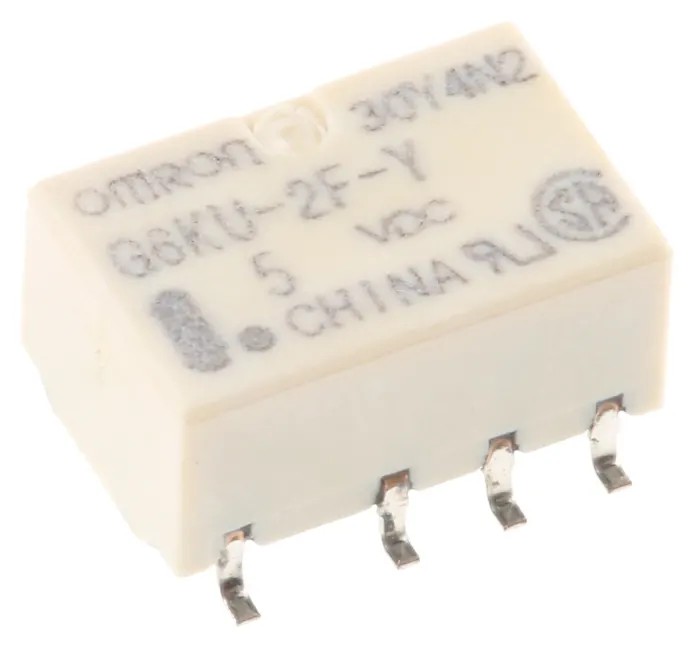

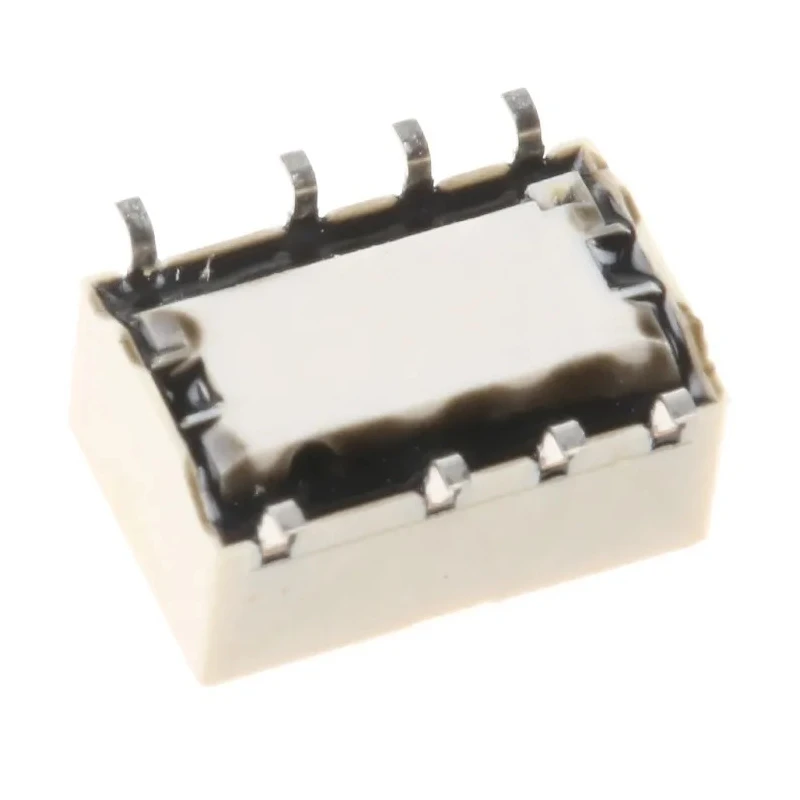

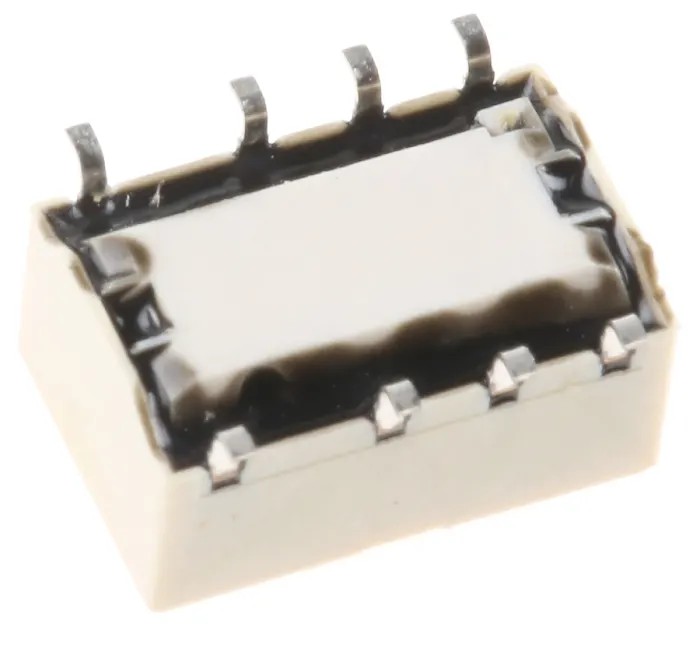

Omron Surface Signal Relay 5V DC Coil, 1A Switching Current, DPDT Contact Configuration G6KU-2F-Y DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6KU-2F-Y DC5 |
| Width | 7.8mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 237Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features
- Operates with a coil voltage of 5V DC.
- Offers switching current up to 1 ampere with DPDT contacts.
- Supports switching AC voltage up to 125V and DC voltage up to 60V.

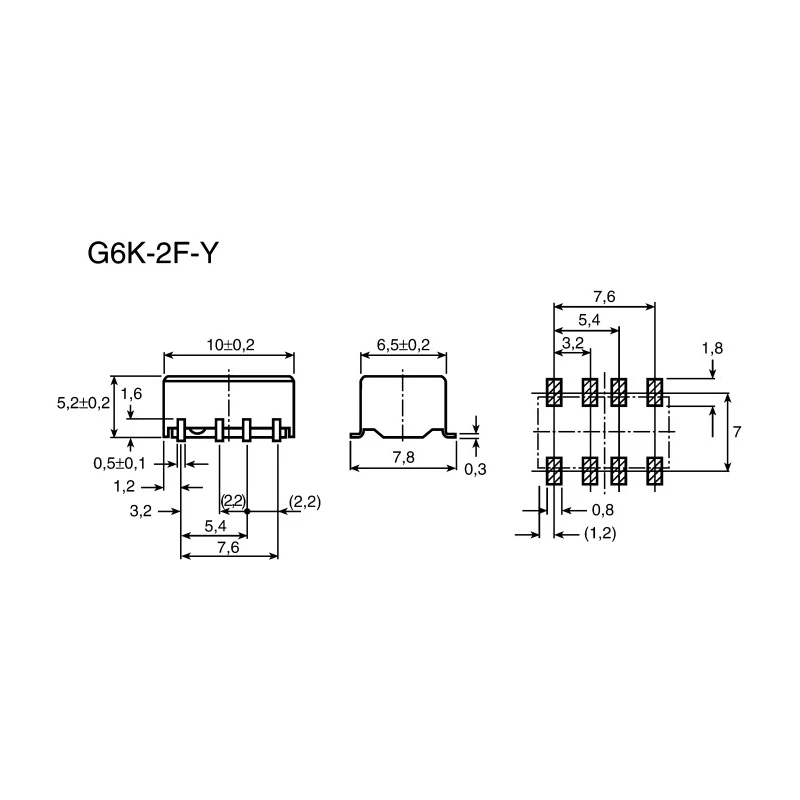

- Compact surface-mount design with dimensions 5.2mm height, 7.8mm width, and 10mm length.
- Low coil power consumption approximately 100mW for energy efficiency.
- Gold-plated contacts ensure low resistance and high reliability.
- Wide ambient operating temperature range from -40°C to 70°C.
- Complies with RoHS standards supporting environmental safety.
Product Description
Omron G6KU-2F-Y DC5 surface signal relay is a low profile subminiature SMT relay engineered for precise control and switching in diverse industrial, electrical, automation, and signal conditioning applications. With a coil voltage of 5V DC and a switching current rating of 1 ampere, it offers dependable double pole double throw (DPDT) contact configuration for flexible circuit designs.
This relay features a compact surface mount form factor measuring 5.2 mm in height, 7.8 mm in width, and 10 mm in length, making it suitable for space-constrained electronic assemblies. Its fully sealed construction ensures ingress protection, while the gold-plated contacts deliver excellent conductivity and low contact resistance of 100 milliohms, enhancing signal fidelity and switch longevity.
Designed for demanding environments, the relay supports ambient temperatures from -40°C to +70°C and a switching power rating of 30 watts. The coil consumes low power around 100 milliwatts, promoting energy-efficient system operation. Additionally, it complies with RoHS requirements and meets FCC Part 68 and Bellcore surge standards, providing regulatory compliance and robustness in critical installations.
This product is ideally applied in industrial automation control systems, signal relay circuits, and electrical equipment requiring reliable switching performance. Its surface mount terminal type and unique terminal design improve soldering efficiency and heat dissipation.
Operates at coil voltage of 5V DC with 1A switching current capacity. DPDT contact configuration suitable for multiple switching paths. Compact surface mount package dimensions for PCB integration. Low coil power consumption promotes energy savings.
Gold-plated contacts minimize contact resistance and improve durability. Wide temperature operation ensures reliability in various conditions. Fully sealed construction prevents contamination and mechanical damage. Compliant with RoHS environmental standards.
Surge resistant to FCC and Bellcore industry specifications. Ideal for industrial automation and electrical signal conditioning applications.
Discover a wide range of Signal Relays and reliable industrial electrical components in the EnvMart Electronics & Electricals catalog for enhanced automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V DC.
It has a maximum switching current rating of 1 ampere.
This relay measures 5.2 mm in height, 7.8 mm in width, and 10 mm in length.
It features a double pole double throw (DPDT) contact configuration.
The relay can operate in ambient temperatures ranging from -40°C to +70°C.
The contacts are made of gold-plated material, which ensures low resistance and high reliability.
The coil power consumption is approximately 100 milliwatts.
It can switch AC voltage up to 125V and DC voltage up to 60V.
The contact resistance is rated at 100 milliohms.
Yes, it complies with RoHS standards for environmental safety.
This model supports surface mounting.
The maximum switching power rating is 30 watts.
