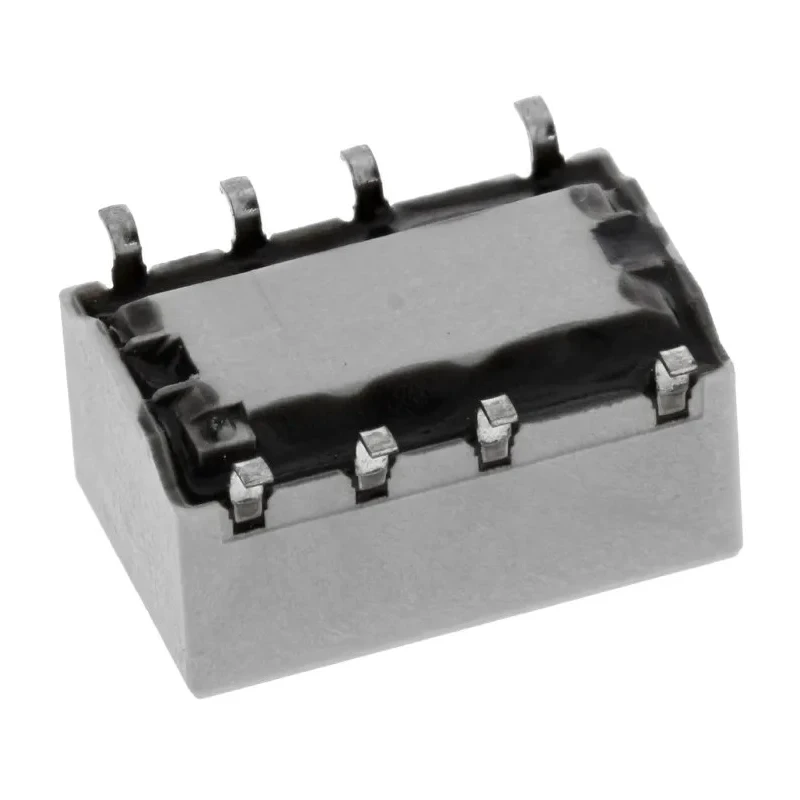

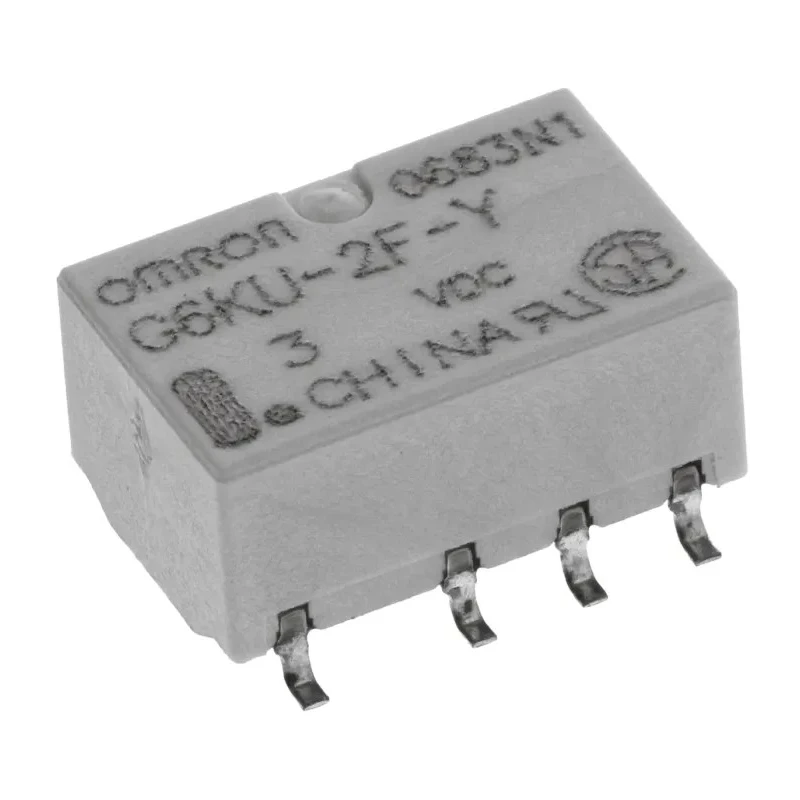

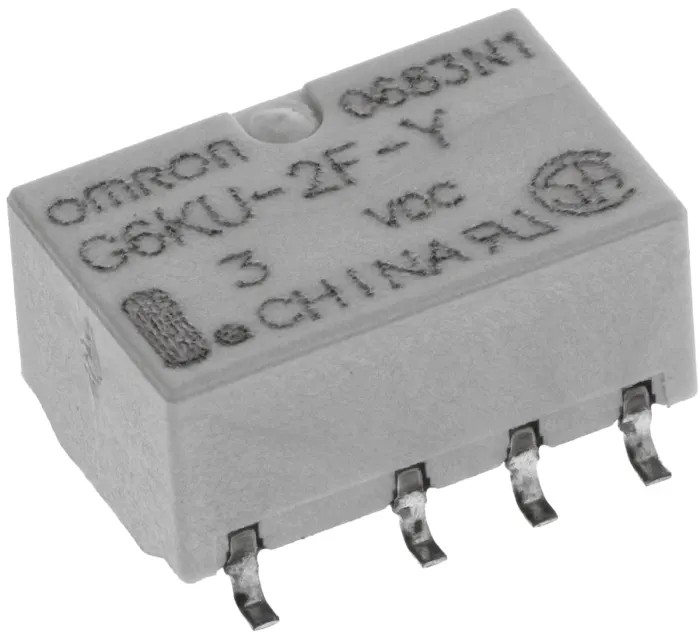

Omron Surface Signal Relay 3V DC Coil 1A DPDT G6KU-2F-Y DC3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6KU-2F-Y DC3 |
| Width | 7.8mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 91Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features

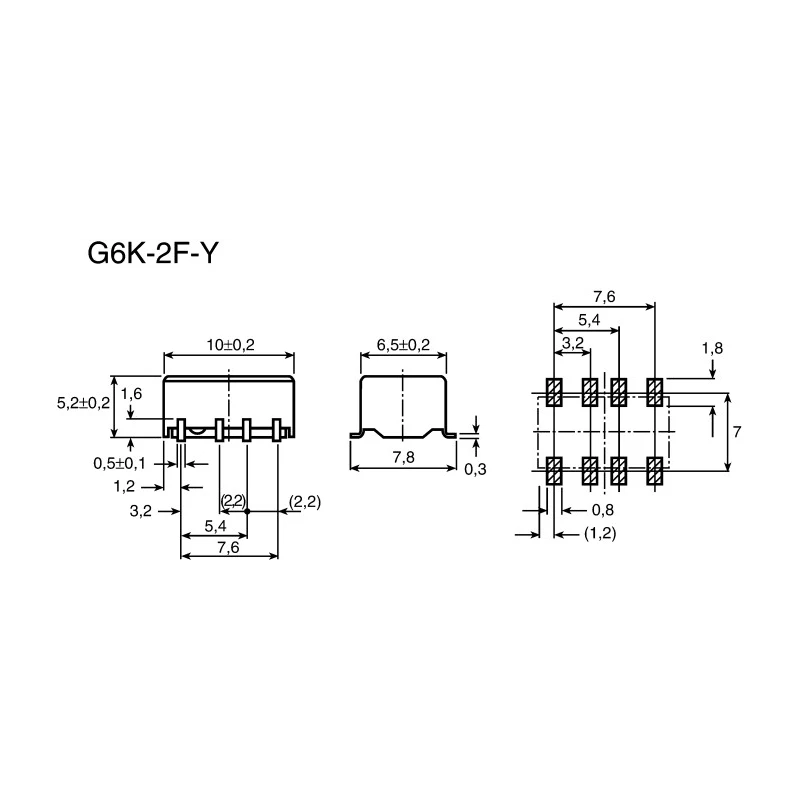

- Designed for surface mounting with a compact size of 5.2mm by 7.8mm by 10mm.
- Capable of switching currents up to 1A with switching AC voltage of 125V and DC voltage of 60V.
- Incorporates gold-plated contact material for enhanced conductivity and durability.
- Operates efficiently with a low coil power consumption of 100mW.
- Fully sealed subminiature design ensures protection under operating temperatures from -40°C to 70°C.
- Conforms to RoHS standards and Bellcore specifications for electrical robustness.
- High infrared irradiation efficiency terminal structure ensures excellent soldering characteristics.
- Ideal for industrial, automation, and signal conditioning applications.
Product Description
Omron G6KU-2F-Y DC3 is a surface mount signal relay designed for industrial and automation applications requiring robust and reliable switching performance. This relay operates with a 3V DC coil voltage and features a double-pole double-throw (DPDT) contact configuration.
The relay’s compact subminiature size of 5.2mm height, 7.8mm width, and 10mm length allows for space-efficient PCB integration. Its fully sealed construction and gold-plated contacts enhance durability and long-term reliability, particularly in harsh operating environments spanning temperatures from -40°C to 70°C.
Low coil power consumption of approximately 100mW reduces energy usage in electrical circuits. Complying with RoHS and Bellcore standards, it provides assurance for quality and electrical safety in manufacturing and assembly.
The relay is capable of switching voltages up to 125V AC and 60V DC with a maximum current rating of 1 ampere and a switching power of 30 watts. The unique terminal structure featuring high infrared irradiation efficiency ensures excellent soldering quality on surfaces, enhancing production yield.
Applications include industrial automation, signal conditioning circuits, HVAC controls, and various electronic switching tasks in commercial and manufacturing environments. Its compact size and exceptional electrical characteristics make it suitable for inclusion in complex electronic assemblies.
Designed for surface mounting with compact subminiature form factor. 3V DC coil voltage with 1A switching current capacity. Gold-plated contacts provide improved conductivity and longevity. Fully sealed with operation temperature range from -40°C to 70°C.
Conforms to RoHS and Bellcore specifications for reliability. Low coil power consumption of approximately 100mW. Switching power rating of 30W supports varied industrial switching requirements. Optimized terminal design enhances soldering and assembly efficiency.
Explore the full range of Omron Signal Relays at EnvMart to support your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 3V DC.
It is capable of switching currents up to 1A.
The dimensions are 5.2mm in height, 7.8mm in width, and 10mm in length.
It can switch AC voltage up to 125V and DC voltage up to 60V.
This model features a double-pole double-throw (DPDT) contact configuration.
The coil power consumption is approximately 100mW.
It operates efficiently within a temperature range of -40°C to 70°C.
The contacts are made of gold-plated material for enhanced conductivity.
Yes, it conforms to RoHS standards and Bellcore specifications.
The contact resistance is 100mΩ.
It features a surface mount terminal type.
It is suitable for industrial automation, signal conditioning circuits, and HVAC controls.
