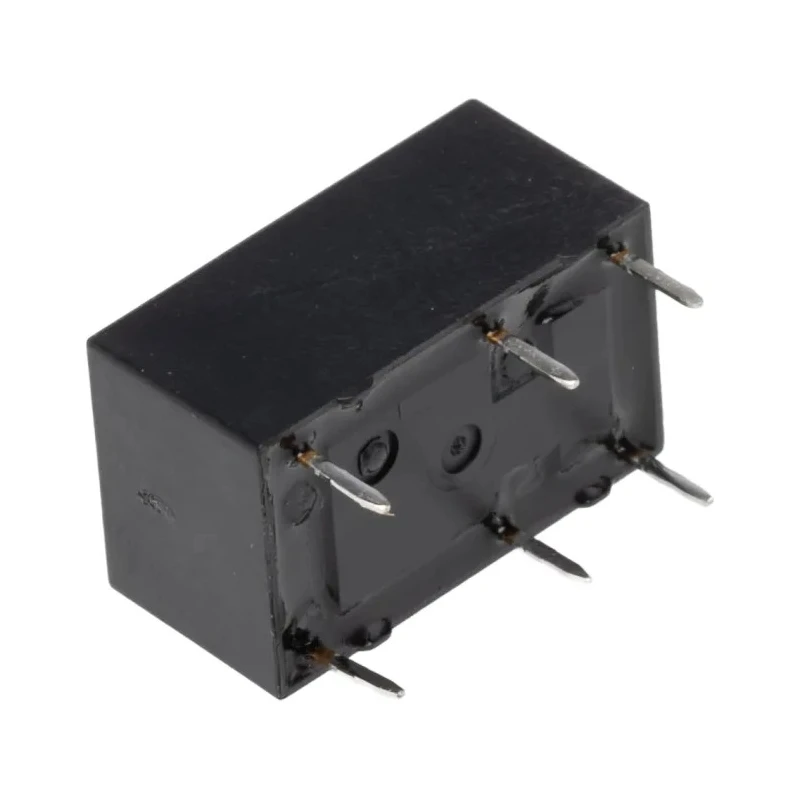

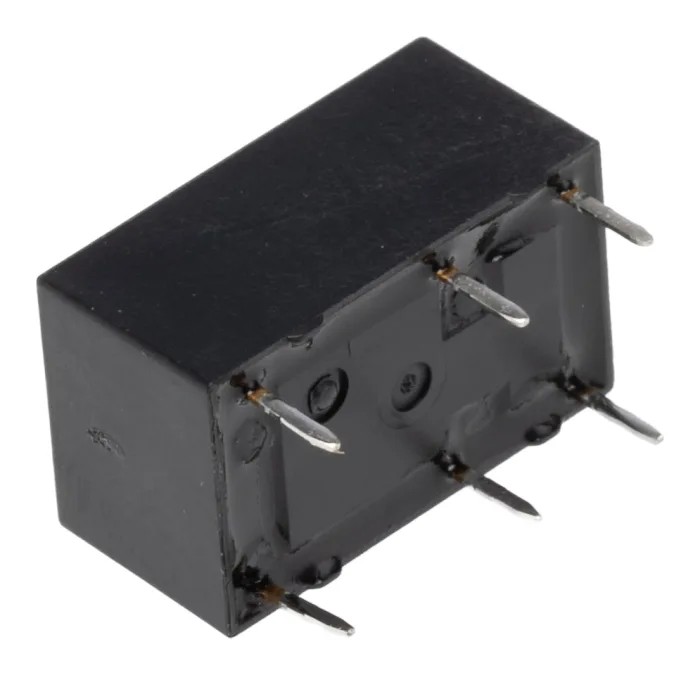

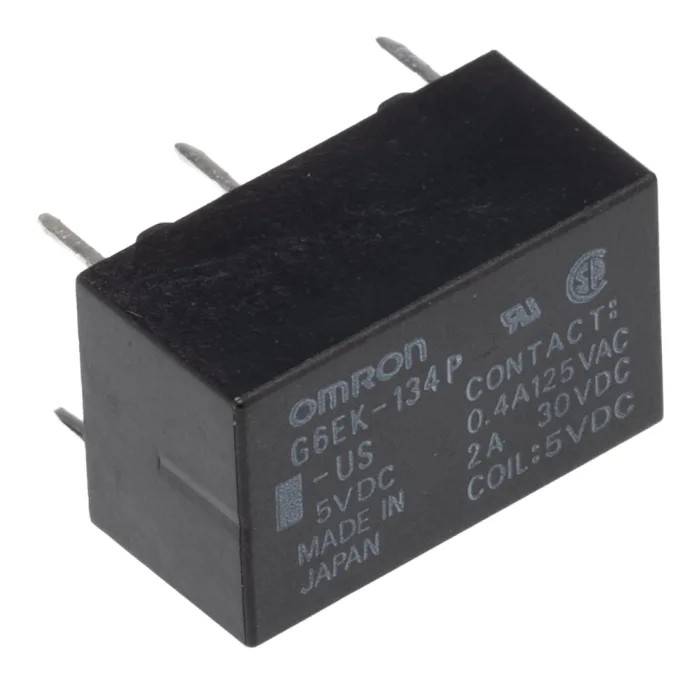

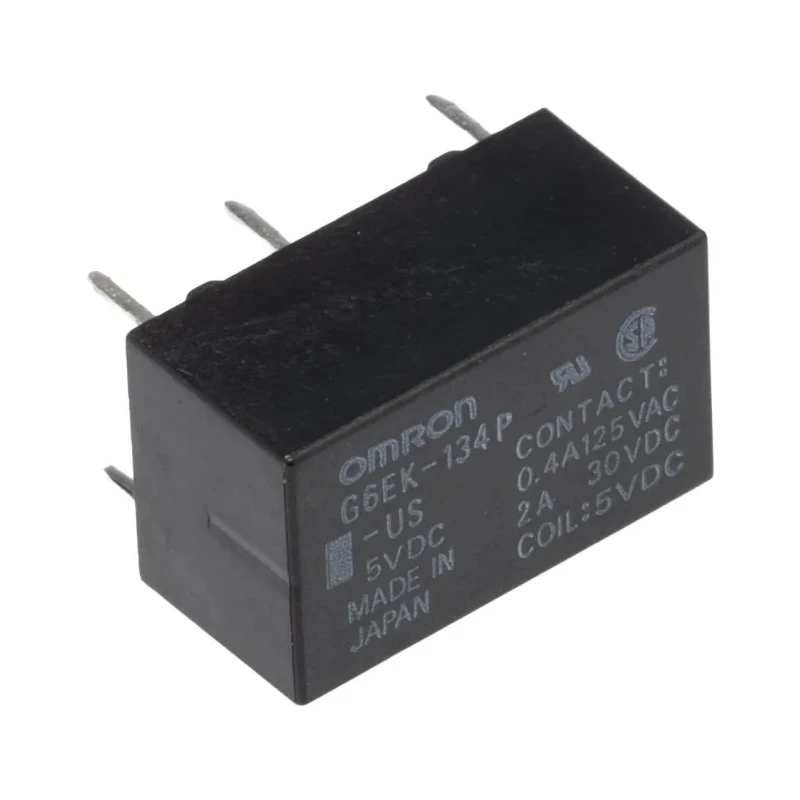

Omron PCB Signal Relay 5V dc Coil 3A SPDT Contact Configuration Series G6E G6EK-134P-US 5DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 8mm |
| Length | 16mm |
| Model | G6EK-134P-US 5DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 60W |
Key Features
- The relay operates with a coil voltage of 5V dc and a coil power of 200mW.
- It supports switching AC voltage up to 250V ac and DC voltage up to 220V dc.
- The compact dimensions are 16mm length, 10mm width, and 8mm height for easy PCB integration.
- Gold plated contacts ensure low contact resistance of 50 milliohms for efficient conductivity.
- Fully sealed construction allows immersion cleaning of PCBs and offers high sensitivity.
- Impulse withstand voltage meets FCC Part 68 standards ensuring robust performance.
- The relay is rated for operation between -40°C and 70°C making it suitable for diverse environments.
- Terminal type is solder suitable for standard PCB soldering processes.
Product Description
Omron G6EK-134P-US 5DC PCB Signal Relay is a precision-engineered signal relay designed for use in electronic control circuits requiring reliable switching performance. Operating at a coil voltage of 5V dc and capable of switching currents up to 3A, this SPDT contact type relay is optimized for PCB mounting applications in industrial automation and control systems.
This relay belongs to the robust G6E series known for its fully sealed construction, which permits immersion cleaning of assembled PCBs without damaging the relay. The relay offers exceptional sensitivity and impulse withstand voltage compliant with FCC Part 68 requirements, ensuring reliable switching even in electrically noisy environments.
The relay features gold plated contacts guaranteeing low contact resistance at 50 milliohms, thereby minimizing power loss and ensuring longevity. It supports AC switching voltages up to 250V ac and DC switching voltages up to 220V dc, with a switching power rating of 60W, making it suitable for diverse electronic control tasks.
The compact relay measures 16mm in length, 10mm in width, and 8mm in height, making it space efficient for dense PCB layouts. Its coil resistance is rated at 125 ohms and power consumption at 200 milliwatts, balancing efficient performance and low power draw.
Designed for temperatures ranging from -40°C to 70°C, this relay ensures stable operation in varied industrial and environmental conditions. The solder-type terminals facilitate straightforward PCB assembly and maintain secure electrical connections.
Manufactured in Japan, the relay complies with RoHS directives, supporting environmentally responsible electronic manufacturing practices.
Ideal for applications in industrial automation, signal processing, control systems, HVAC controls, and equipment manufacturing where precise and dependable Signal Relay switching is critical.
Explore more high-quality relays and signal conditioning components to enhance your electronic designs and industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5V dc.
The maximum switching current for the G6EK-134P-US 5DC relay is 3A.
This model measures 16mm in length, 10mm in width, and 8mm in height.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The contact resistance is rated at 50 milliohms.
It operates within a temperature range of -40°C to 70°C.
It can switch AC voltage up to 250V ac and DC voltage up to 220V dc.
The coil power consumption is 200 milliwatts.
This relay has solder-type terminals suitable for standard PCB soldering processes.
The contacts of this relay are made from gold plated material, ensuring low contact resistance.
Yes, it complies with RoHS directives and meets FCC Part 68 standards for impulse withstand voltage.
It is suitable for applications in industrial automation, signal processing, control systems, and HVAC controls.
