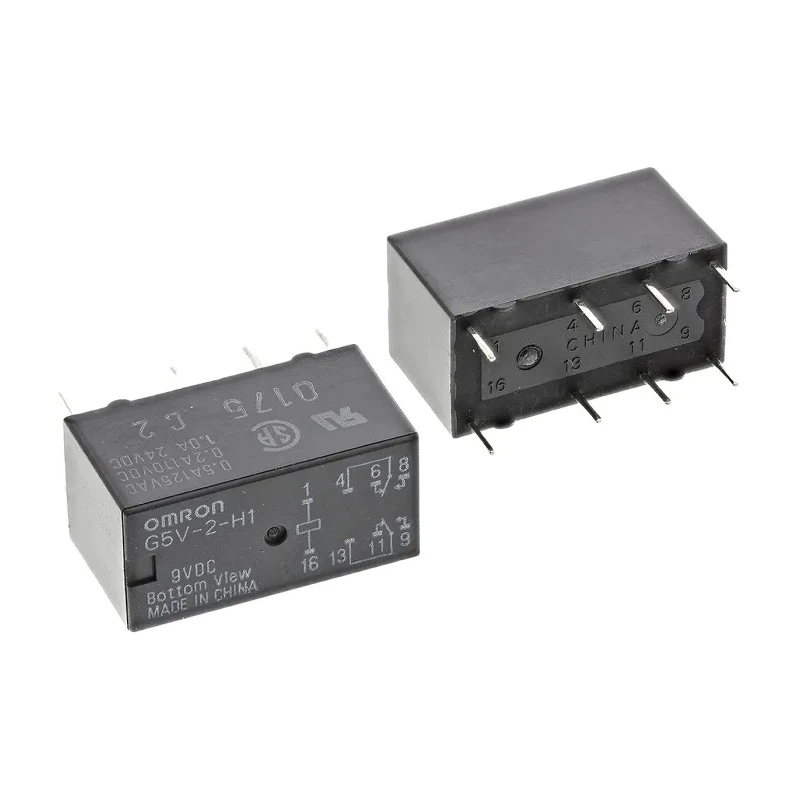

Omron PCB Signal Relay 9V dc Coil 1A DPDT G5V-2-H1 9DC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11.5mm |
| Length | 20.5mm |
| Model | G5V-2-H1 9DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 1A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 540Ω |
| Coil Voltage | 9V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 150mW |
| Aratas PCB Signal Relay, 9V dc Coil, 2A, DPDTBrand | Omron |
Key Features
- Operates at coil voltage of 9V dc with coil resistance of 540Ω.
- Switching capability up to 125V ac and 125V dc with 1A current.
- Gold plated contacts ensure reliability and signal integrity.
- Fully sealed construction conforming to FCC Part 68 requirements.
- Operating temperature range from -25°C to 70°C.
- PCB mount type with solder terminal connections for secure installation.
- Low coil power consumption of 150mW enhances energy efficiency.
- Compliant with RoHS standards supporting environmental safety.
Product Description
Omron G5V-2-H1 9DC PCB Signal Relay is a highly sensitive miniature relay designed for signal circuits requiring precise and reliable switching. It features a coil voltage of 9V dc and supports a switching current of 1A with a double-pole double-throw (DPDT) contact configuration. The relay is fully sealed, offering robust protection for sensitive electronic components and ensuring long service life.

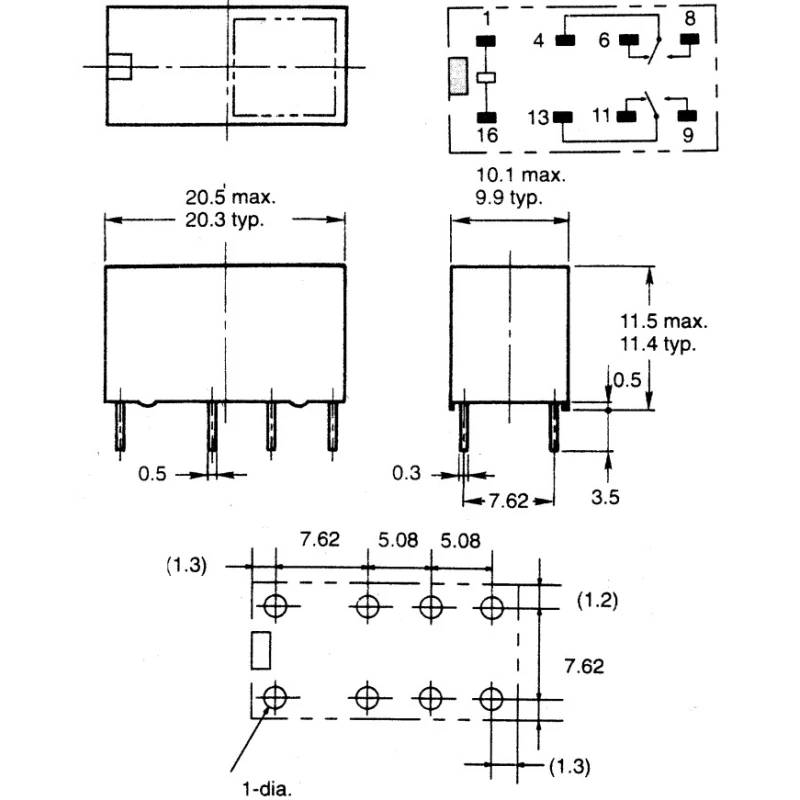

This relay offers compact dimensions of 20.5mm length, 10mm width, and 11.5mm height, making it ideal for densely packed PCB assemblies. With gold plated contacts, it assures minimal contact resistance and high signal integrity, which is crucial for signal relay applications in industrial automation, electrical equipment, and communication devices.
The coil resistance is 540Ω with a low coil power consumption of 150mW, promoting energy efficient operation. Its operational temperature ranges from -25°C up to 70°C, suitable for diverse environmental conditions.
It mounts securely on PCBs with solder terminal types, facilitating reliable mechanical and electrical connections. The relay conforms to RoHS environmental standards and meets FCC Part 68 requirements, with additional UL and CSA approvals affording assurance on safety and quality standards.
Operates at coil voltage of 9V dc with coil resistance of 540Ω. Switching capability up to 125V ac and 125V dc with 1A current. Compact dimensions: 20.5mm length, 10mm width, and 11.5mm height. Gold plated contacts ensure reliability and signal integrity.
Fully sealed construction conforming to FCC Part 68 requirements. Operating temperature range from -25°C to 70°C. PCB mount type with solder terminal connections for secure installation. Low coil power consumption of 150mW enhances energy efficiency.
Compliant with RoHS standards supporting environmental safety. Manufactured in China with UL and CSA approvals.
This Omron PCB Signal Relay is ideal for industrial and automation applications requiring a compact, reliable, and energy-efficient switching component. It supports use in electrical circuits for signal conditioning, control, and communication systems. Browse EnvMart's extensive category of Signal Relays to find compatible and related products for your electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 9V DC.
It has a switching current capability of up to 1A.
The relay has compact dimensions of 20.5mm in length, 10mm in width, and 11.5mm in height.
This model features a double-pole double-throw (DPDT) contact configuration.
The coil resistance is 540Ω.
The operating temperature range is from -25°C to 70°C.
The contacts are made of gold plated material, ensuring reliability and signal integrity.
The relay has a low coil power consumption of 150mW.
It supports PCB mounting with solder terminal connections for secure installation.
It can switch up to 125V AC and 125V DC.
Yes, it is compliant with RoHS standards and conforms to FCC Part 68 requirements.
This relay is manufactured in China.
