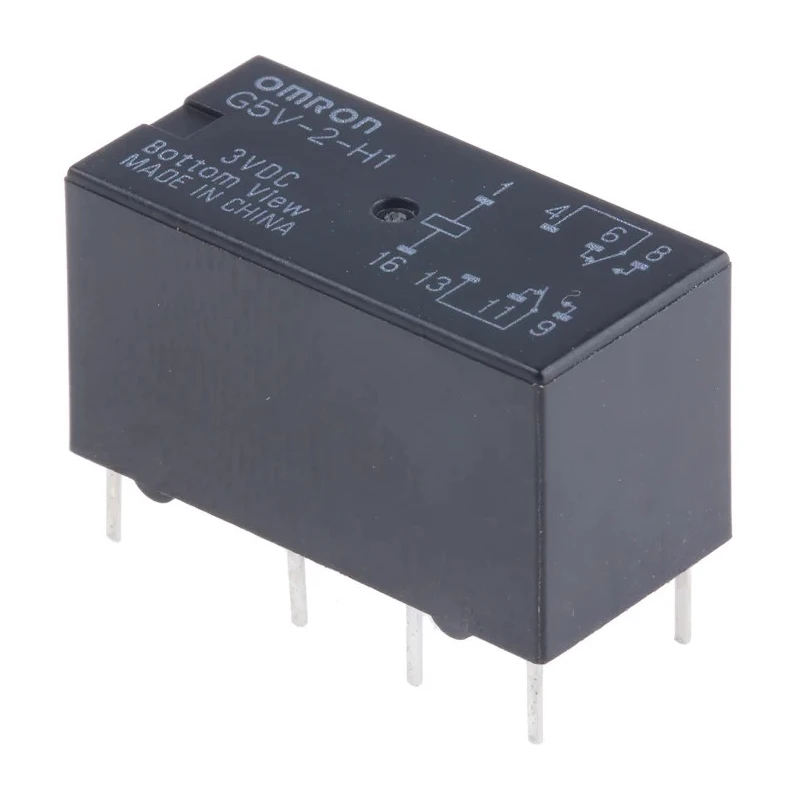

Omron PCB Signal Relay 3V DC Coil, 1A Switching Current, DPDT Contact Configuration G5V-2-H1 3DC

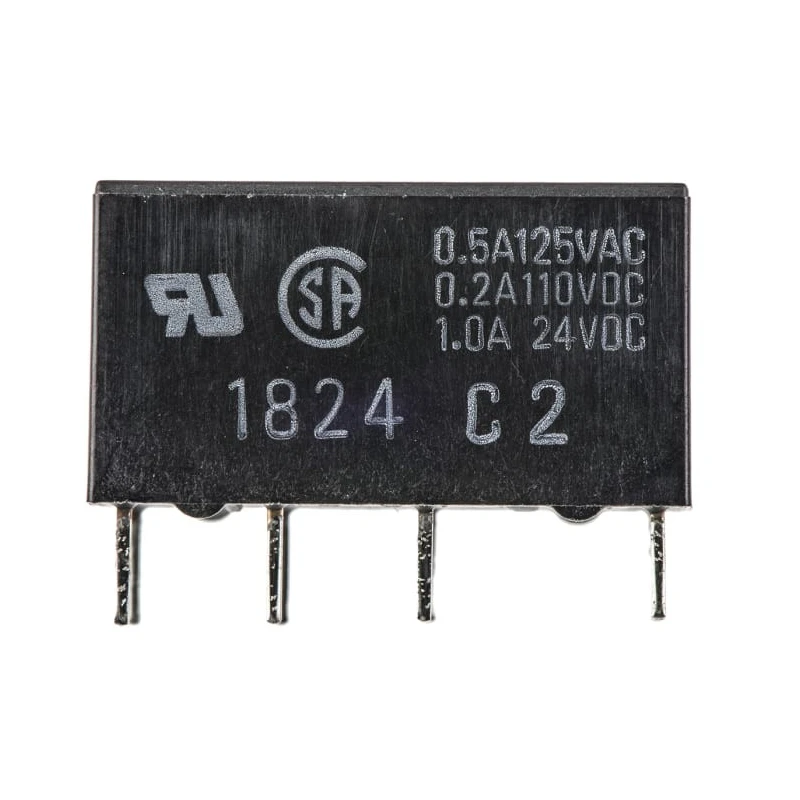

Omron G5V-2-H1 3DC PCB Signal Relay is designed for high-sensitivity signal circuit applications. It operates on a 3V DC coil with a low coil power consumption of 150mW. The relay features a DPDT contact configuration capable of switching currents up to 1A and voltages up to 125V in AC and DC modes.

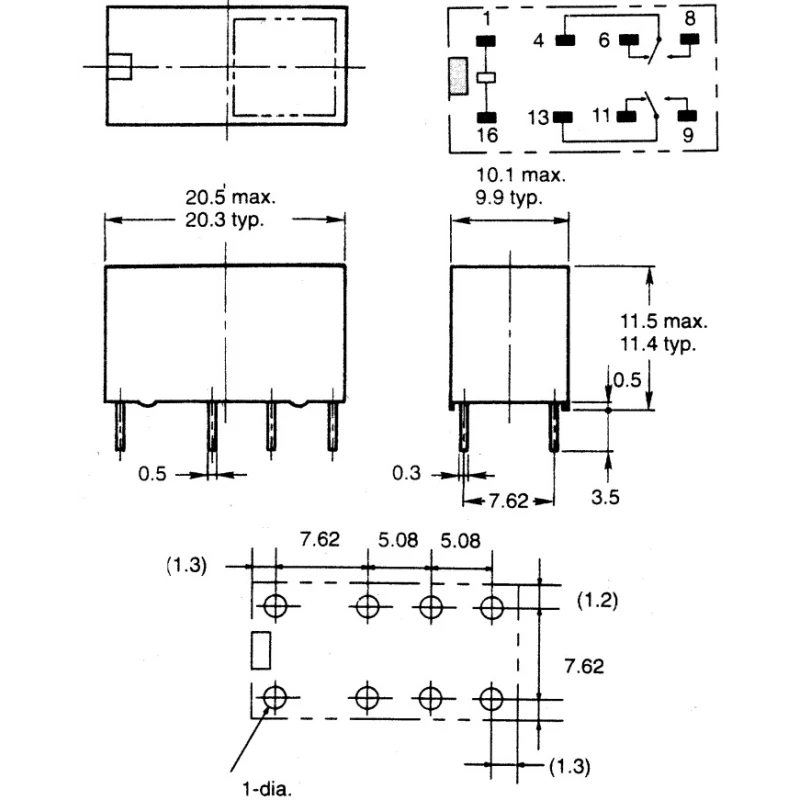

This miniature relay measures 20.5 mm in length, 10 mm in width, and 11.5 mm in height, making it suitable for compact PCB designs. Gold plated contacts ensure low contact resistance and reliable switching performance for signal conditioning and automation tasks.

The relay is fully sealed to protect against dust and moisture, enhancing durability in industrial environments. It is suitable for applications in electronics, industrial automation, control systems, and signaling circuits.

The relay operates safely within temperatures ranging from -25°C to 70°C and features solder terminal types for robust PCB mounting. Compliance with RoHS standards and approvals such as UL and CSA underline its quality and safety credentials.

Operates with a coil voltage of 3V DC. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Switching AC voltage up to 125V AC and DC voltage up to 125V DC. Miniature size with a height of 11.5 mm, length 20.5 mm, and width 10 mm.

Gold plated contacts ensure reliable signal transmission. Coil resistance of 60 ohms and coil power consumption of 150mW. Fully sealed construction for durability and environmental protection. Operating temperature range from -25°C to 70°C.

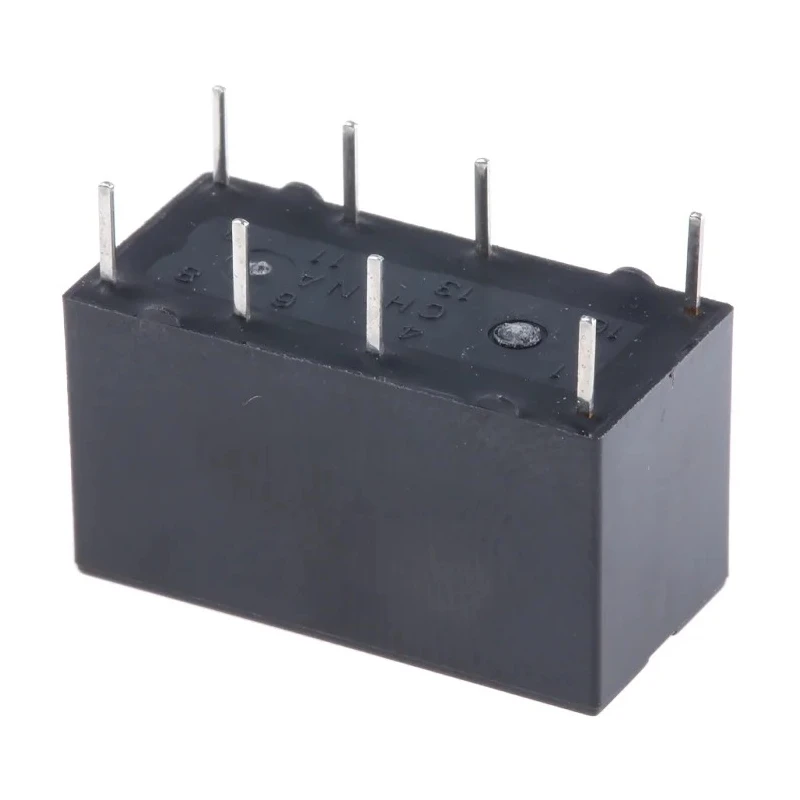

PCB mount type with solder terminals for easy circuit integration. Complies with RoHS standards and multiple approvals including UL and CSA. This Omron Signal Relay is ideal for electronic circuit design, industrial signal control, automation systems, and PCB-mounted relay applications.
