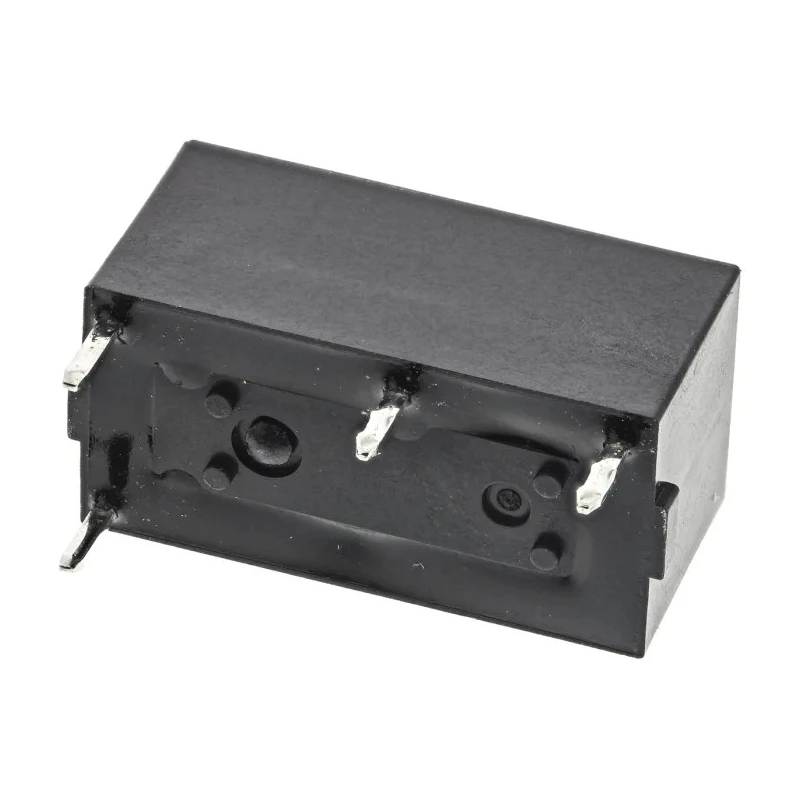

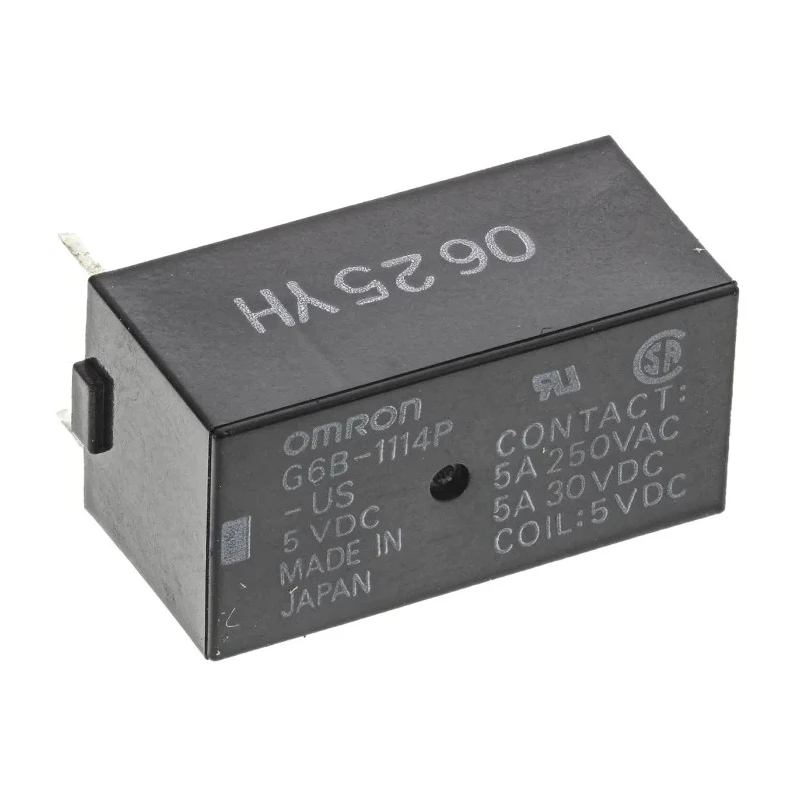

Omron PCB Power Relay 5V dc Coil, 5A Switching Current, SPST, Silver Alloy Contacts, Subminiature 20x10x10mm G6B-1114P-US 5DC

Omron G6B-1114P-US 5DC PCB Power Relay is a high-quality subminiature relay designed for PCB mounting with a 5V dc coil voltage and 5A switching current capacity. This power relay features an SPST contact configuration and silver alloy contacts that ensure reliable and efficient switching performance.

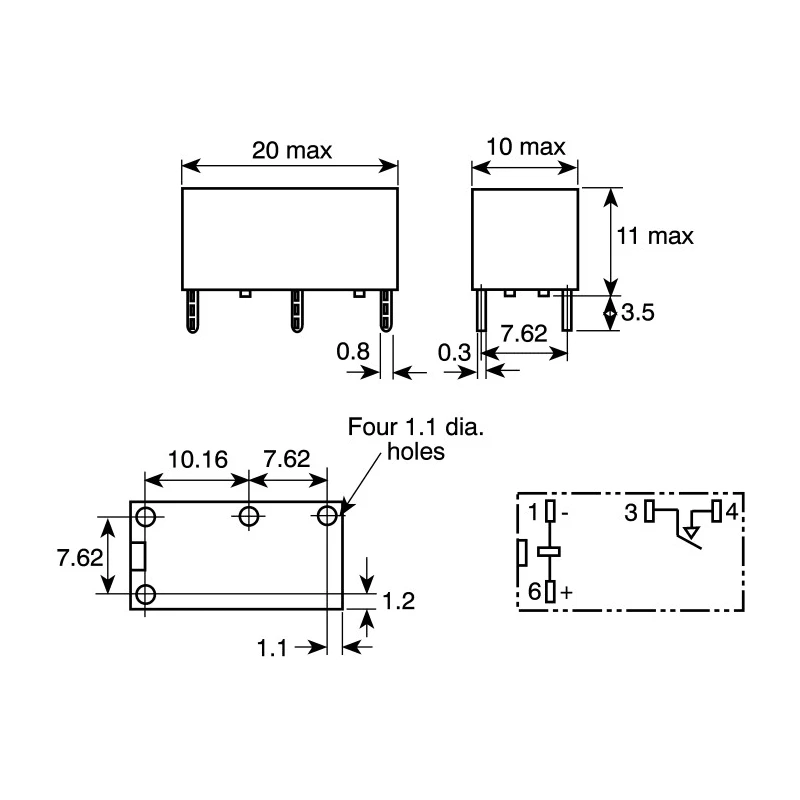

The relay boasts a compact footprint of 20x10x10mm, making it ideal for space-constrained applications. With a low coil power consumption of 200mW and a coil resistance of 125 ohms, it delivers stable and energy-efficient operation.

It is capable of switching both DC and AC voltages up to 125V dc and 380V ac respectively, enabling versatility in various control and automation tasks. The relay supports a maximum switching power of 60W while operating reliably across a temperature range from -25°C to 70°C.

Omron is renowned for manufacturing power relays with high dielectric strength and reliability. The G6B series features a unique moving loop armature design that reduces size, magnetic interference, and contact bounce time, enhancing overall performance. This relay is fully sealed, with an impulse withstand voltage rating of 6kV, ensuring durability and long-term operation in industrial environments.

It is UL recognized and certified by CSA, EN, RoHS, and VDE standards, attesting to its quality and compliance with global safety norms. The solder terminal type facilitates easy and secure PCB integration.

Applications for the Omron G6B-1114P-US 5DC power relay include industrial control systems, automation equipment, and other electronic devices that require reliable high-capacity PCB power relays. Its subminiature size and low power consumption make it suitable for space-saving and energy-efficient designs.

The relay features a subminiature size of 20x10x10mm for compact PCB mounting. It operates at a low coil power consumption of 200 mW. Contact material is silver alloy ensuring high conductivity and durability. Capable of switching up to 125V dc and 380V ac voltages with a switching power of 60W.

Designed to operate within a temperature range of -25°C to 70°C. Coil resistance is 125 ohms, providing stable coil characteristics. The device has UL recognition and CSA, EN, RoHS, and VDE certifications for quality and safety.

The relay’s coil voltage is 5V dc, suitable for low voltage PCB applications. Terminal type is solder, facilitating secure PCB soldering. Provides high dielectric strength with an impulse withstand voltage of 6kV. Browse through EnvMart’s comprehensive collection of Power Relays and related control components for your industrial, laboratory, manufacturing, and automation needs.
