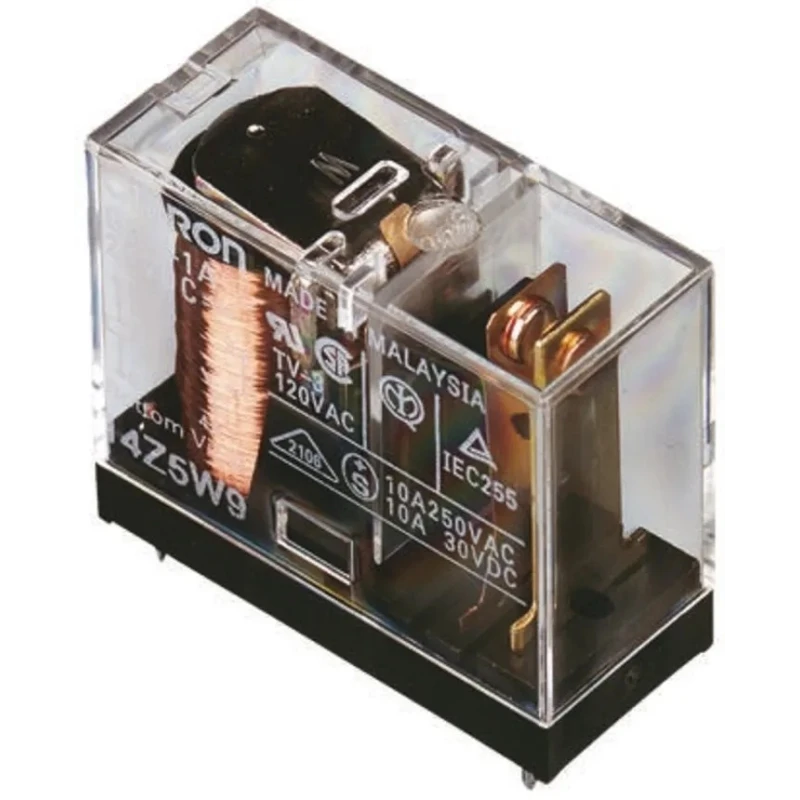

Omron PCB Power Relay 5V DC Coil 10A Switching Current SPST G2R-1A DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1A DC5 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 47Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Switching Power | 150W |
Key Features
- Features SPST contact configuration for reliable single pole switching.
- Supports switching of up to 125V DC and 380V AC voltages.
- Compact form factor measuring 29mm length, 13mm width, and 25.5mm height.
- Operates efficiently between -40°C and 70°C temperature range.
- Contact materials are made of silver alloy ensuring low resistance and durability.
- Coil resistance is 47Ω with coil power rated at 0.9VA for energy efficiency.
- Compliant with RoHS standards ensuring environmental safety.
- Maximum switching power capability is 150W for versatile industrial applications.
Product Description
Omron G2R-1A DC5 PCB Power Relay is a general purpose power relay designed for effective PCB mounting and reliable switching performance. It features a 5V DC coil voltage and can handle a switching current of 10A, making it suitable for domestic and commercial applications requiring robust electrical contact switching.
This SPST relay supports switching voltages of up to 125V DC and 380V AC, providing versatility for various power control needs. The relay's compact dimensions of 29mm length, 13mm width, and 25.5mm height allow for easy integration into PCB assemblies without consuming excessive board space.
Operating temperature ranges from -40°C to 70°C, enabling use in environments with significant temperature fluctuations. The contact system uses a silver alloy material that delivers a low contact resistance of 30 milliohms, ensuring efficient electrical conductivity and long service life.
The coil resistance of 47 ohms and coil power of 0.9VA contribute to energy-efficient operation. The relay conforms to RoHS standards, guaranteeing compliance with environmental regulations related to hazardous substances.
SPST contact configuration suitable for single pole switching applications. Capable of switching up to 10A current with 150W maximum power rating. Compact form factor fits standard PCB layouts with solder terminal type. Wide operating temperature for industrial and commercial equipment use.
Silver alloy contacts provide durability and low resistance. RoHS compliant for eco-friendly manufacturing and disposal. Enables enhanced performance in electrical automation, control panels, HVAC, and manufacturing systems.
Set includes one Omron G2R-1A DC5 relay unit ready for PCB mounting.
This power relay is ideal for industries requiring reliable electrical switching components, including industrial automation, HVAC controls, manufacturing machinery, and electrical control panels. The product supports improved production efficiency and equipment reliability through its precise switching capabilities and solid construction.
Explore more Power Relays and related electrical components in the Electronics & Electricals category at EnvMart for comprehensive solutions to your automation and control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum switching current of 10A.
It supports switching voltages of up to 125V DC and 380V AC.
The coil voltage for this relay is 5V DC.
It features an SPST (Single Pole Single Throw) contact configuration.
The relay measures 29mm in length, 13mm in width, and 25.5mm in height.
The contacts are made from silver alloy, which provides low resistance and durability.
It operates efficiently between -40°C and 70°C.
The coil resistance is 47Ω.
The maximum switching power capability is 150W.
It is designed for PCB mounting with solder terminal type.
Yes, it is RoHS compliant, ensuring it meets environmental safety regulations.
This power relay is suitable for industrial automation, HVAC controls, and electrical control panels.
