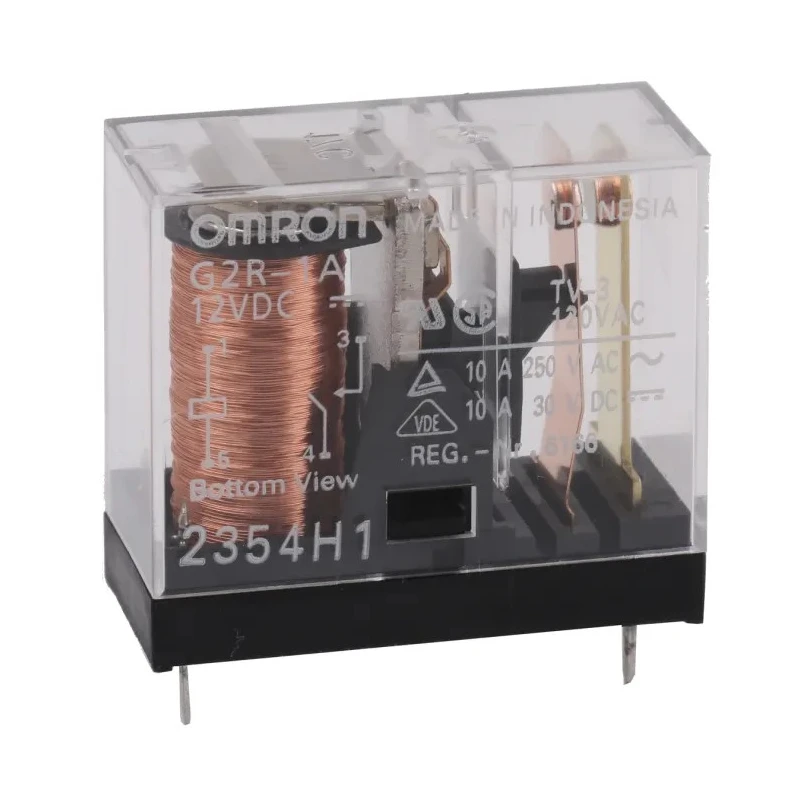

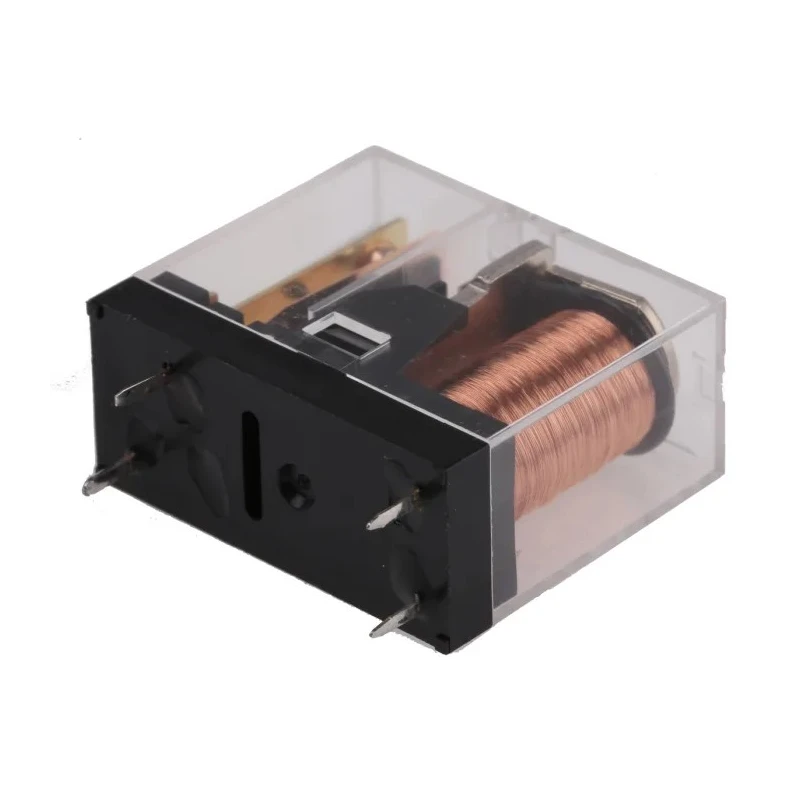

Omron PCB Power Relay 12V DC Coil 10A Switching Current SPST G2R-1A DC12

Omron G2R-1A DC12 is a high-quality PCB power relay featuring a 12V DC coil and capable of switching currents up to 10A with a SPST contact configuration. This relay is designed for seamless integration into printed circuit boards and is widely used in various domestic and commercial electrical applications.

The relay measures 25.5 mm in height, 13 mm in width, and 29 mm in length, making it compact and suitable for space-limited designs. It operates efficiently within a temperature range of -40°C to 70°C, ensuring reliability in diverse environmental conditions.

The coil has a resistance of 275 ohms and consumes 0.9 VA power, providing stable and consistent actuation of the relay contacts. The silver alloy contacts offer minimal contact resistance of 30 milliohms ensuring low power loss and long operational life.

This relay supports switching voltages up to 125V DC and 380V AC, with a switching power rating of 150W, making it suitable for a wide range of load types and electrical systems.

Designed in compliance with RoHS directives, the Omron G2R-1A DC12 relay delivers environmentally responsible performance. Its solder terminal type and PCB mount make it ideal for automated manufacturing and easy replacement.

Typical industrial, HVAC, manufacturing, and automation applications benefit from the precise and durable switching capabilities of this relay. It is robustly constructed to ensure reliable control in signal conditioning and power relay circuits.

General purpose PCB power relay suitable for domestic and commercial use. Coil voltage rated at 12V DC ensuring compatibility with low voltage control circuits. Contact configuration is Single Pole Single Throw (SPST) optimized for simple ON/OFF applications.

Switching current capacity up to 10 Amperes supports moderate power loads. Compact dimensions of 25.5 x 13 x 29 mm enable easy PCB integration. Coil resistance of 275 ohms provides stable coil operation. Wide operating temperature range from -40°C to 70°C supports harsh environments.

Silver alloy contact material ensures low contact resistance and durability. Compliance with RoHS standards ensures environmental safety. Explore more high-quality Power Relays from Omron and related industrial electronics on EnvMart.
