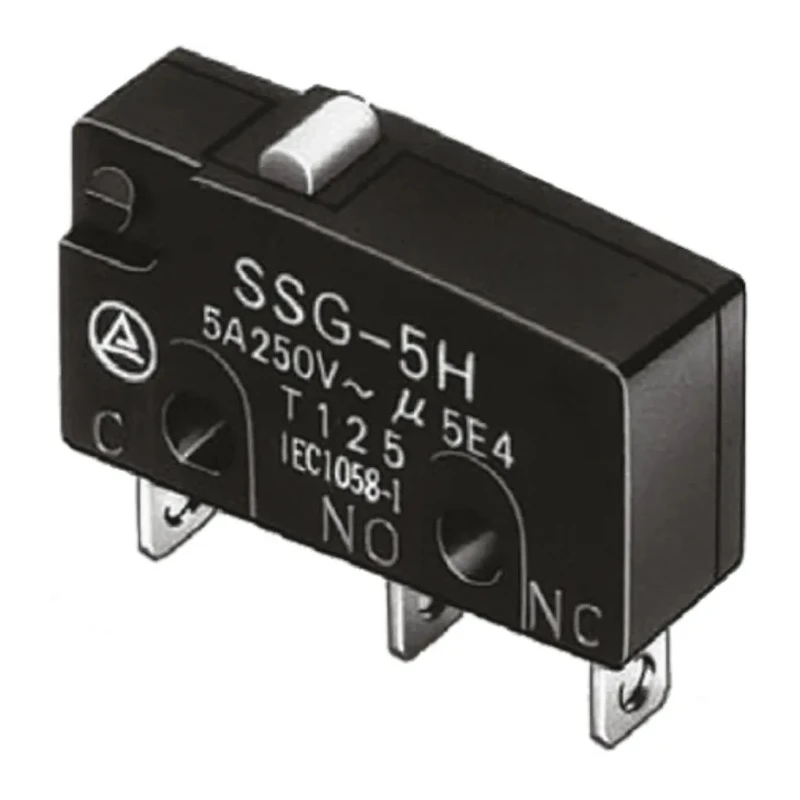

Omron Pin Plunger Subminiature Micro Switch, Solder Terminal, 5A, 250 V ac, 30 V dc, SPDT, IP40 SSG-5H-5

Omron SSG-5H-5 Pin Plunger Subminiature Micro Switch is a robust and precise subminiature switch widely used in electrical, automation, and industrial control systems. Its compact V4 style housing and pin plunger actuator provide efficient and reliable actuation in limited space applications.

This micro switch features solder terminals for easy and stable electrical connections. It supports a switch contact current of 5A, making it suitable for moderate current loads. It is rated for 250 V alternating current and 30 V direct current, providing versatility in various control circuits.

The switch is configured in a single pole double throw (SPDT) setup, allowing it to change the connection between two circuits. The IP40 rating protects against penetration by solid objects larger than 1 mm, ensuring reliable performance in environments free from liquids or heavy dust.

Operating force is low at 0.5 N, ensuring sensitivity without excessive pressure requirements. The device works reliably across a wide temperature range from -25°C to 125°C, suitable for various industrial environments.

With a rated mechanical lifespan of 10 million operations, this switch offers long-lasting durability for continuous industrial use. The compact body measuring 9.9 mm in height, 19.8 mm in width, and 6.4 mm in depth facilitates integration into space-constrained assemblies.

Manufactured in Japan, the Omron SSG-5H-5 complies with RoHS environmental standards and meets EN61058-1 electrical safety requirements. It is ideal for use in industrial automation, control panels, HVAC systems, instrumentation, and mechanical control devices.

Features a pin plunger actuator suitable for subminiature switch operation. Equipped with solder terminal connection for secure wiring. Designed to handle a switch contact current of 5A. Capable of operating with 250 V ac and 30 V dc contact voltages.

Configured as a single pole double throw (SPDT) contact. IP40 rated protection against solid objects larger than 1 mm. Operates under a temperature range from -25°C to 125°C. Mechanical life rated at 10 million operations.

Compact body dimensions (H9.9 mm × W19.8 mm × D6.4 mm). Manufactured in Japan ensuring high quality and reliability.

This micro switch is a dependable solution for controlling electrical circuits in manufacturing, laboratory equipment, and automation industries. It offers high precision switching and long life to ensure minimal maintenance and downtime.
