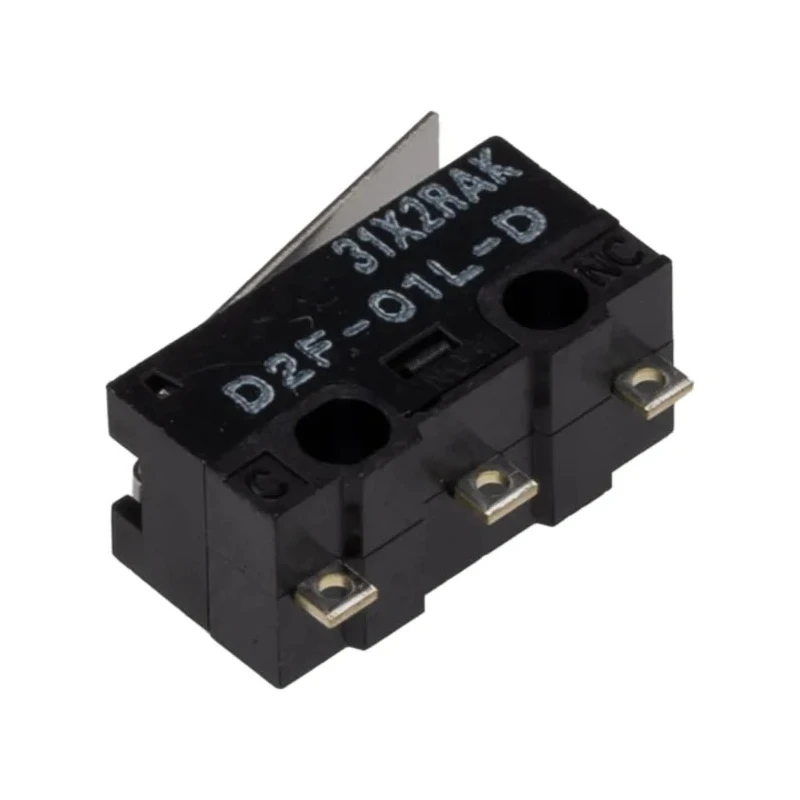

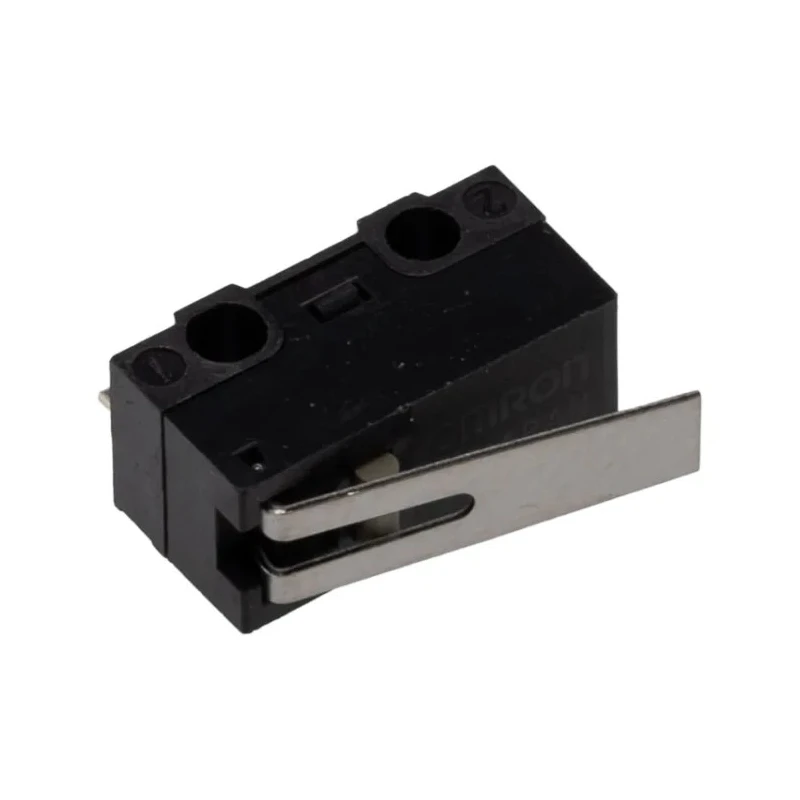

Omron Ultra Subminiature Hinge Lever Micro Switch, Solder Terminal, 100mA, 30V dc, SPDT, IP40 D2F-01L-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-01L-D |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.78N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- Features a hinge lever actuator for reliable mechanical performance.
- Supports a contact current of 100mA at 30V dc, suitable for low power circuits.
- Constructed for an operating temperature range from -25°C to 65°C.
- Measures 12.8mm in length with an IP40 ingress protection rating.
- Offers mechanical life of up to 1,000,000 operations ensuring durability.
- Compliance with RoHS standards for environmental safety.
- Contact rating includes 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
- Approved by UL and CSA indicating high safety and quality standards.
Product Description
Omron D2F-01L-D is an ultra subminiature hinge lever micro switch engineered for precision switching in home appliances, audio, and communication devices. This micro switch features a solder terminal type and single-pole double-throw (SPDT) contact configuration, providing versatile switching options for various electrical circuits.
It has a contact current rating of 100mA and a contact DC voltage of 30V dc, making it suitable for low power applications requiring reliable switch actuation.
The switch's operating force is 0.78N, offering a tactile snap action experience with a mechanical life expectancy of one million operations, thereby enhancing long-term durability.
Its compact length of 12.8mm combined with an IP40 rating ensures it is resistant to access by solid objects larger than 1mm, providing basic protection against ingress. Designed to operate effectively between -25°C and 65°C, it suits a range of environmental conditions encountered in industrial and commercial settings.
This switch is RoHS compliant and carries UL and CSA approvals denoting conformance to international safety and environmental standards. Features a hinge lever actuator for precise switching control. Available with solder terminals for secure electrical connections.
Supports 100mA contact current with a 30V dc rating. Compact 12.8mm body length for tight installation spaces. Rated IP40 for dust protection in controlled environments. Mechanical life rated for 1,000,000 operations ensuring longevity.
Complies with RoHS environmental regulations. Certified by UL and CSA for safety compliance.
This micro switch is ideal for use in industrial automation, home appliance manufacturing, communications equipment, and laboratory devices requiring precise and reliable switch control.
Explore the range of high-quality Micro Switches and switches accessories available through EnvMart for your industrial and electrical application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch has a contact current rating of 100mA at 30V dc, making it suitable for low power applications.
It features a hinge lever actuator, which provides reliable mechanical performance for precise switching control.
The operating temperature range is from -25°C to 65°C, allowing it to function effectively in various environmental conditions.
The mechanical life expectancy is rated for up to 1,000,000 operations, ensuring longevity in its application.
This model has an IP40 ingress protection rating, which provides basic protection against access by solid objects larger than 1mm.
The switch features a single-pole double-throw (SPDT) contact configuration, offering versatile switching options.
It is approved by UL and CSA, and complies with RoHS environmental regulations, indicating adherence to international safety standards.
The length of this micro switch is 12.8mm, making it suitable for tight installation spaces.
The contact rating includes 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts, suitable for various applications.
This model features solder terminals, allowing for secure electrical connections.
It is ideal for use in industrial automation, home appliance manufacturing, communications equipment, and laboratory devices requiring precise switching.
The operating force required for this switch is 0.78N, providing a tactile snap action experience during operation.
