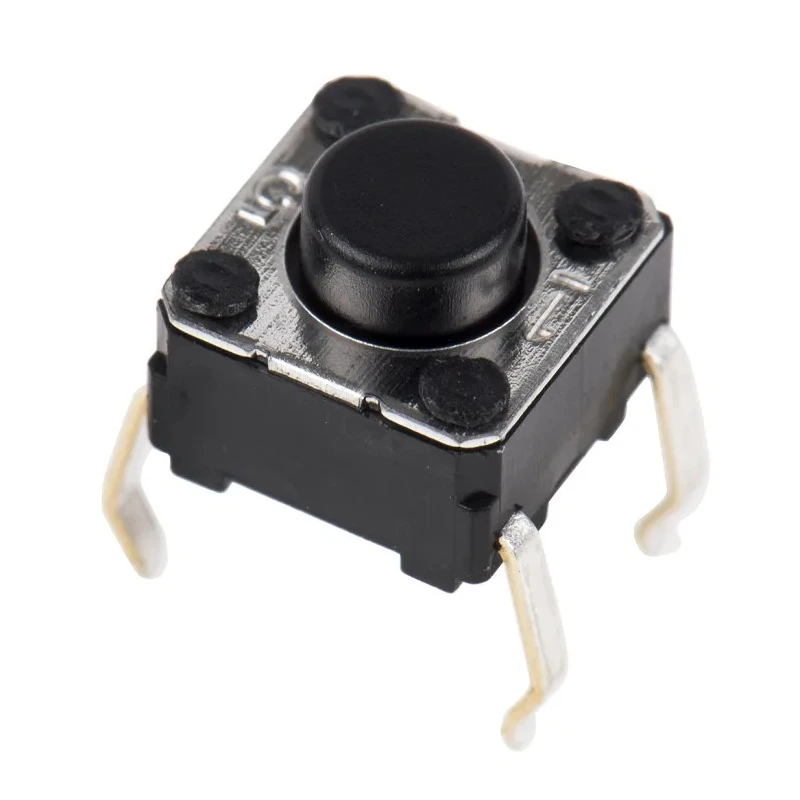

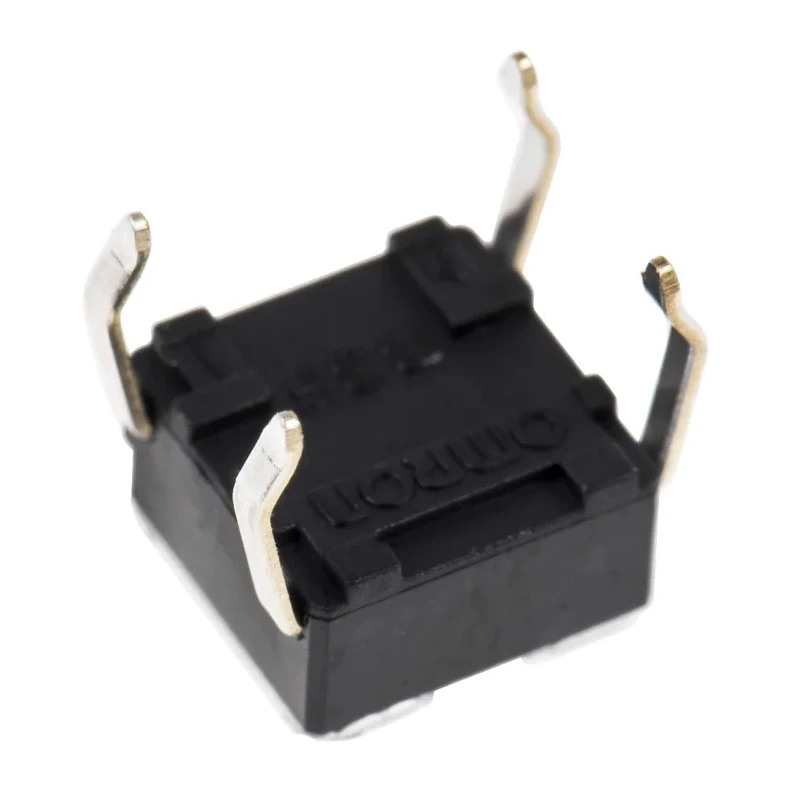

TE Connectivity IP00 Black Tactile Switch Plunger 0.9 mm SPST 50mA 24 V dc Through Hole B3F-1020

Omron B3F-1020 tactile switch is a precision electrical component designed for a range of applications including audio equipment, measuring instruments, communication devices, TVs, and PVRs. Featuring a black plunger actuator of 0.9 mm length, this switch provides a positive click action with a mechanical life of one million operations.

The device supports single-pole single-throw (SPST) contact configuration with a contact current rating of 50mA at 24 V DC. Its compact footprint of 6 mm length by 6 mm width and 5 mm height allows integration into densely packed circuit boards. The through-hole mounting style offers secure and reliable solder connections for durable use.

Designed to operate between -25°C and 70°C, the switch maintains performance under a wide range of environmental conditions. The operating force of 0.98 Newton provides tactile feedback to users, essential for precise operation in control panels and keypads. The switch is non-illuminated with an IP00 ingress protection rating, implying it is not sealed against dust or moisture and is best suited for protected indoor environments.

Manufactured in Japan and compliant with RoHS standards, the B3F-1020 ensures compliance with environmental regulations and quality standards. This tactile switch is a reliable choice for industrial, laboratory, and consumer electronic applications requiring small form factor, durable switch components.

Compact 6 mm x 6 mm size for space-efficient PCB integration. Rated for 50mA current and 24 V DC voltage applications. Through-hole mounting for durable soldered connections. Operating temperature range from -25°C to 70°C for versatile environments.

Mechanical life expectancy of 1,000,000 operations ensures long-term reliability. Operating force of 0.98 N gives crisp tactile feedback. Compliance with RoHS standards for hazardous substance reduction. Non-illuminated plunger actuator in black color.
