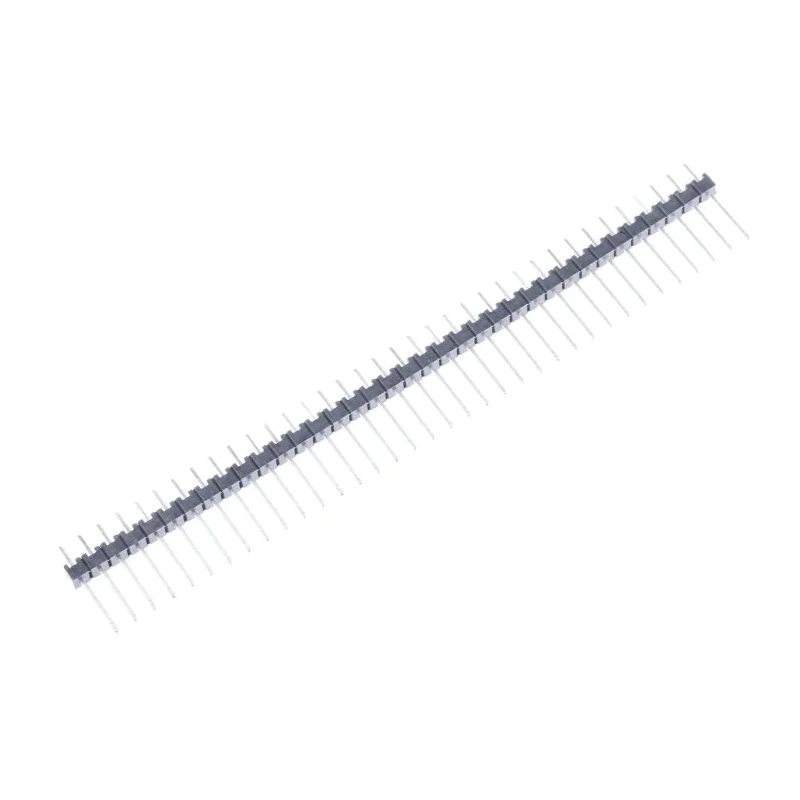

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row 8-146274-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 8.08mm |
Key Features
- Complies with AMPMODU MOD II series standards for reliable electrical connections.
- Features 36 male contacts arranged in a single row with 2.54 mm pitch.
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze contacts plated with tin for excellent conductivity and corrosion resistance.
- Suitable for board-to-board and wire-to-board connector systems.
- Operates reliably between -65°C and 105°C temperatures.
- Designed for through-hole mount applications to ensure strong mechanical fixation.
- Tail pin length of 3.18 mm and mating pin length of 8.08 mm ensure secure soldering and connection.
Product Description
TE Connectivity 8-146274-6 AMPMODU MOD II Series Straight Through Hole Pin Header with 36 contacts, 2.54 mm pitch, and a single unshrouded row is designed for high-reliability electronics interconnection applications. The pin header features a liquid crystal polymer housing known for its mechanical strength and thermal stability, making the product suitable for industrial, telecommunications, computing, automotive, medical instruments, and test equipment applications.
The connector system supports both board-to-board and wire-to-board configurations. Phosphor bronze male contacts with tin plating provide excellent electrical signal transmission and corrosion resistance. This through-hole mount pin header simplifies installation by allowing all solder posts to be installed simultaneously, enhancing manufacturing efficiency.
Operating temperature ranges from -65°C to 105°C ensure functionality in diverse environmental conditions. The pin header's tail pin length of 3.18 mm and mating pin length of 8.08 mm ensure secure, reliable connections and mechanical strength once mounted and soldered.
Compliant with the widely adopted AMPMODU MOD II interconnect system. Supports industrial and automation control applications requiring compact, reliable connectors. Enables fast, cost-effective assembly with breakaway sections customizable to application-specific lengths.
Ideal for use in automotive control systems, industrial and test equipment, telecommunications, computer systems, medical devices, and storage equipment. Reliable mechanical and electrical performance with robust housing and plating.
Through-hole mounting provides strong physical connection to printed circuit boards. The AMPMODU MOD II system is an industry standard for economical signal interconnection. Explore more TE Connectivity pin headers and components within the PCB Connector category at EnvMart for your industrial and electronics assembly needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this pin header have a pitch of 2.54 mm.
This model can operate at a maximum temperature of 105°C.
It features 36 male contacts arranged in a single row.
The tail pin length is 3.18 mm.
The contacts are made of phosphor bronze with tin plating, while the housing is constructed from liquid crystal polymer.
It supports both board-to-board and wire-to-board connector systems.
The current rating for this pin header is 3A.
The orientation of this pin header is straight.
This model can operate at a minimum temperature of -65°C.
It uses a solder termination type.
The country of origin for this product is India.
Through-hole mounting allows for strong mechanical fixation and enables all solder posts to be installed simultaneously, enhancing manufacturing efficiency.
