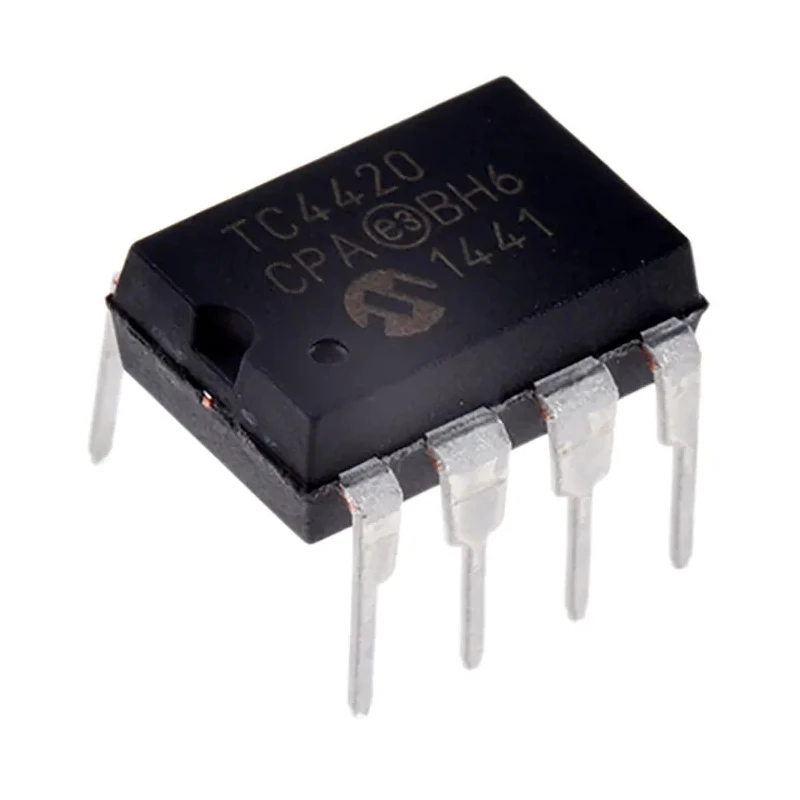

Microchip MOSFET Gate Driver 6A Output Current 8-Pin PDIP Package 18-20V Supply Voltage TC4420CPA

Free Delivery in India | Lowest Global Shipping Charges

Microchip MOSFET Gate Driver 6A Output Current 8-Pin PDIP Package 18-20V Supply Voltage TC4420CPA

Name: Microchip MOSFET Gate Driver 6A Output Current 8-Pin PDIP Package 18-20V Supply Voltage TC4420CPA
Brand: Microchip
SKU: 210414
Price: 2.29 USD
Availability: InStock



Category MOSFET Gate Driver Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	3.3mm
Length	9.46mm
Model	TC4420CPA
Width	6.35mm
Mount Type	Through Hole
Series	TC4420
Output Current	6A
Maximum Operating Temperature	70°C
Package Type	PDIP
Minimum Operating Temperature	0°C
Number of outputs	2
Rise Time	25ns
Pin Count	8
Maximum Supply Voltage	20V
Minimum Supply Voltage	18V
Number of Drivers	1
Fall Time	25ns
Driver Type	MOSFET
Microchip MCP1407-E/P MOSFET Gate Driver 1, 6 A 8-Pin 18V, PDIPBrand	Microchip

Key Features

Offers high current output of 6 amperes for efficient MOSFET driving.
Compact 8-pin PDIP package with length 9.46mm, width 6.35mm, and height 3.3mm.
Operates within a supply voltage range of 18 to 20 volts for versatile circuit designs.
Fast switching characteristics with 25ns rise and fall times optimize performance.
Designed for through-hole mounting with a single MOSFET driver output.
Minimum operating temperature is 0°C, maximum temperature rating is 70°C for reliable operation.
Suitable for power management IC applications requiring robust gate driving.
No automotive standards applied; ideal for consumer and industrial electronics.

Product Description

Microchip TC4420CPA MOSFET Gate Driver is a high-performance power management IC designed to efficiently drive MOSFETs in various industrial, electronic, and power control applications. Featuring a robust 6A output current and housed in an 8-pin PDIP package, this component provides reliable and fast switching capabilities essential for modern electronics.

The device operates within a supply voltage range of 18 to 20 volts and supports through-hole mount technology, making it compatible with many PCB layouts. Its compact dimensions of 9.46 mm in length, 6.35 mm in width, and 3.3 mm in height facilitate ease of integration into space-constrained designs.

Designed with fast rise and fall times of 25 nanoseconds, the TC4420CPA ensures precise control of MOSFETs, reducing switching losses and improving overall device efficiency. The operating temperature range between 0°C to 70°C guarantees stable operation under typical environmental conditions encountered in manufacturing and consumer electronics.

This single-driver MOSFET Gate Driver includes two outputs and is suitable for applications such as power management ICs, laboratory devices, HVAC control systems, and industrial manufacturing equipment requiring controlled switching of power transistors.

High continuous output current of 6 amperes for driving power MOSFET gates. Compact, reliable through-hole 8-pin PDIP package for easy mounting. Supports supply voltages from 18V to a maximum of 20V ensuring compatibility with common power rails.

Fast switching with 25ns rise and fall times for efficient operation. Wide operating temperature range suitable for diverse environments. Two outputs available for MOSFET drive applications. Non-automotive standard device optimized for industrial and electronic use.

The Microchip TC4420CPA is an essential component for engineers and designers focusing on power efficiency and reliable switch control in power electronics. Explore additional power management ICs and semiconductors on EnvMart to complement your equipment.
