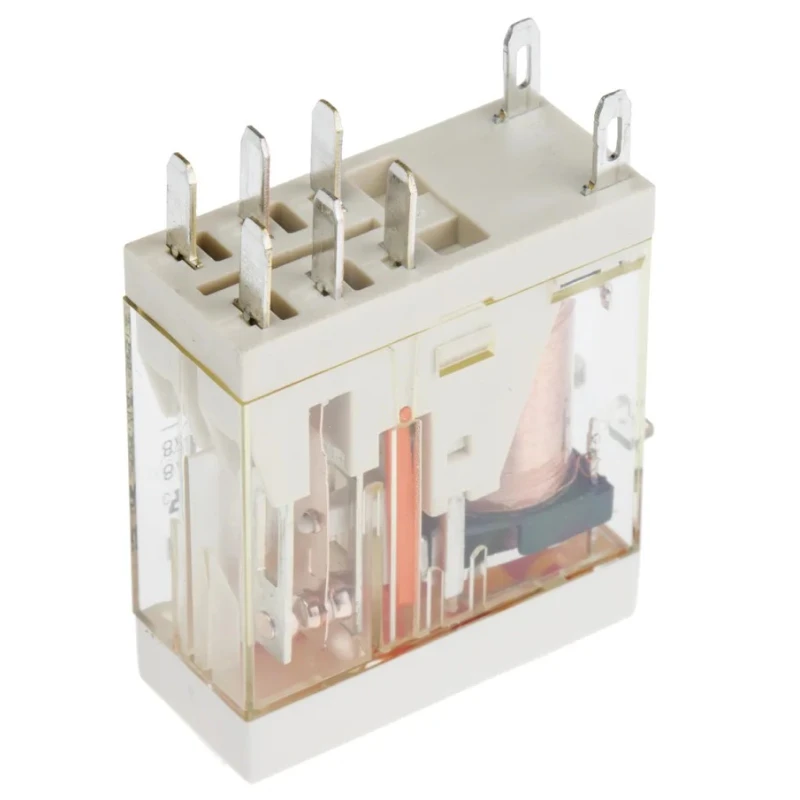

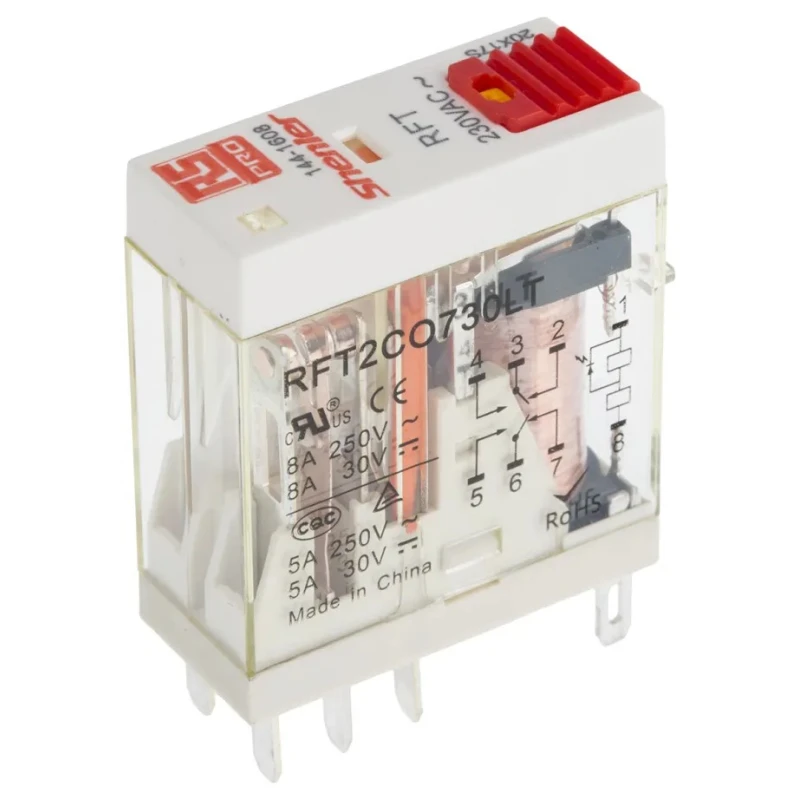

RS PRO Power Relay 230V AC Coil 8A Switching Current DPDT 144-1608
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 27mm |
| Length | 29mm |
| Model | 144-1608 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 23kΩ |
| Coil Voltage | 230V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Non-latching relay with double pole double throw (DPDT) contact configuration.
- Silver alloy contacts ensure reliable electrical connection.
- Coil power consumption of 530 mW with coil resistance of 23 kΩ.
- Operating temperature range from -40°C to +55°C for industrial durability.
- Compact dimensions of 29 mm length, 27 mm height, and 12.6 mm width.
- Plug-in mounting with PCB pin terminal type for easy installation.
- Electrical life expectancy of 10,000,000 cycles guaranteeing long-term reliability.
- Isolation voltage of 5 kV between coil and contacts for safety.
Product Description
RS PRO 144-1608 power relay is a high-performance non-latching relay designed for precise control of electrical circuits. It features a 230V AC coil and a double pole double throw (DPDT) contact configuration, making it suitable for switching applications requiring reliable on/off control. The relay switches magnetically from normally closed (NC) to normally open (NO) positions upon coil activation, ideal for push-button activator setups.
The relay is built with silver alloy contacts providing excellent conductivity and durability, and it incorporates an LED indicator to show operational status clearly. Its coil power rating of 530 mW and coil resistance of 23 kΩ ensure efficient operation. The relay supports a broad temperature range from -40°C to +55°C, making it well-suited for demanding industrial environments.
Compact dimensions of 29 mm length, 27 mm height, and 12.6 mm width with PCB pin terminals allow for easy plug-in mounting onto printed circuit boards. It has a switching current capacity of 8A and can handle switching voltages up to 250V AC and 30V DC, accommodating various electrical load requirements.
The relay offers an isolation voltage of 5 kV between coil and contacts, enhancing safety in electrical systems. Tested to endure 10 million cycles, it guarantees long-term reliability and performance stability. Compliance with RoHS standards ensures it meets environmental and safety regulations.
This power relay is ideal for industrial automation, electrical control, signal conditioning, and regulation or amplification of voltages in electrical circuits. Its slim, compact design fits well in constrained spaces while delivering high capacity and reliability.
Non-latching DPDT power relay configuration. 230V AC coil voltage with 530 mW coil power. Silver alloy contacts for durability and performance. Operating temperature from -40°C to +55°C for industrial reliability. Compact size with PCB pin plug-in mounting.
High switching current and voltage capability. Isolation voltage of 5 kV between coil and contacts. Extensive electrical life of 10,000,000 cycles. RoHS compliant environmental safety. Explore more RS PRO products and Power Relay solutions at EnvMart for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power relay has a switching current capacity of 8A, making it suitable for various electrical load requirements.
This model operates with a coil voltage of 230V AC, which is essential for its activation.
It features a double pole double throw (DPDT) contact configuration, allowing for flexible switching applications.
The relay can operate within a temperature range from -40°C to +55°C, suitable for demanding industrial environments.
The relay has compact dimensions of 29 mm in length, 27 mm in height, and 12.6 mm in width, facilitating easy installation.
The coil power consumption is 530 mW, ensuring efficient operation during its use.
This relay has an isolation voltage of 5 kV, enhancing safety in electrical systems.
The relay is tested to endure up to 10 million electrical cycles, ensuring long-term reliability.
The contacts are made from silver alloy, providing excellent conductivity and durability.
It features PCB pin terminals for plug-in mounting, allowing for easy installation onto printed circuit boards.
Yes, it is compliant with RoHS standards, ensuring it meets environmental and safety regulations.
The relay can handle switching voltages up to 250V AC and 30V DC, accommodating various applications.
