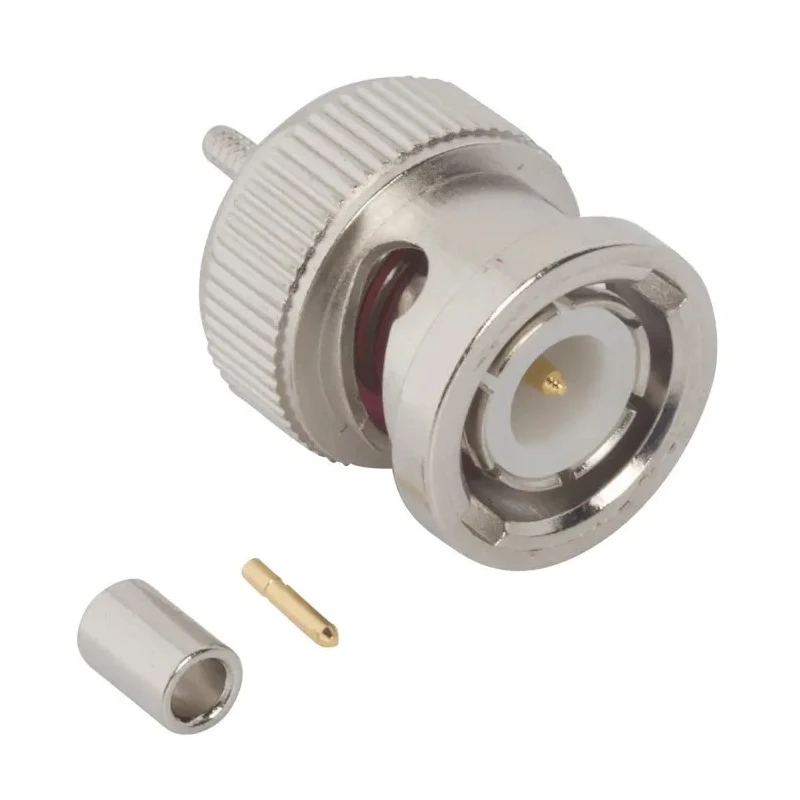

Amphenol RF BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Straight Body Crimp 112516

Amphenol RF 112516 BNC Series Coaxial Connector is a high quality cable mount male BNC connector designed for RF applications requiring 50 ohm impedance. This connector supports operating frequencies up to 4 GHz and temperature ranges from -40°C to 85°C, making it suitable for demanding environments.

The body plating is nickel which provides durability and resistance against corrosion. The contacts are made of phosphor bronze and plated with gold to ensure optimal electrical conductivity and low contact resistance. The connector uses a straight body design with a crimp termination style, allowing quick and reliable cable attachment.

This BNC connector features a bayonet coupling mechanism for fast and positive mating and un-mating actions. Its 50 ohm impedance design ensures impedance matching for various RF systems, and it is intermateable with 75 ohm variants with no restrictions at low frequencies.

Typical applications include RF equipment in industrial, laboratory, telecommunications, and broadcast sectors. It meets standard size specifications but does not include a bulkhead mount.

The male connector is designed with normal polarity suitable for a wide range of coaxial cables, including RG-178 and RG-196 types. It targets military, commercial, and industrial use cases where performance, reliability, and durability are critical.

High quality male BNC connector for coaxial cable applications. 50 ohm impedance suitable for RF frequencies up to 4 GHz. Straight body with crimp termination for secure cable mounting. Connector body plated with nickel for corrosion resistance.

Contact material made of phosphor bronze with gold plating for excellent conductivity. Operates reliably between -40°C to 85°C temperature range. Bayonet coupling ensures quick and positive mating mechanism. Compatible with military, industrial, and commercial applications.

Standard size connector without bulkhead mounting. Designed to provide normal polarity connection for RF signaling.

This product is ideal for electronics, industrial equipment, and telecommunications maintenance and installation. It is part of the extensive Amphenol RF connector series, ensuring compatibility and quality trusted in professional environments.
