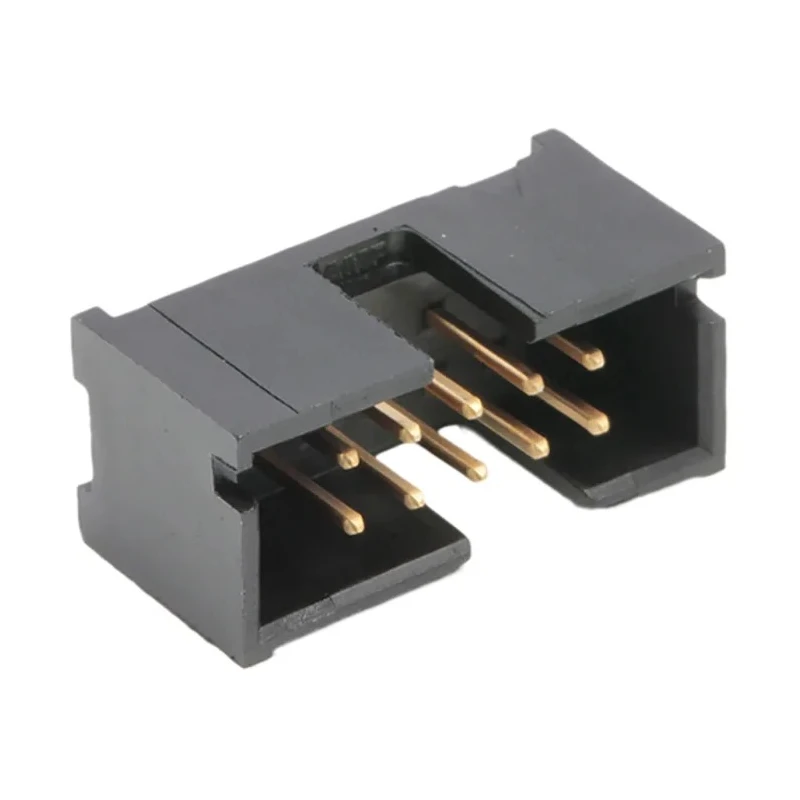

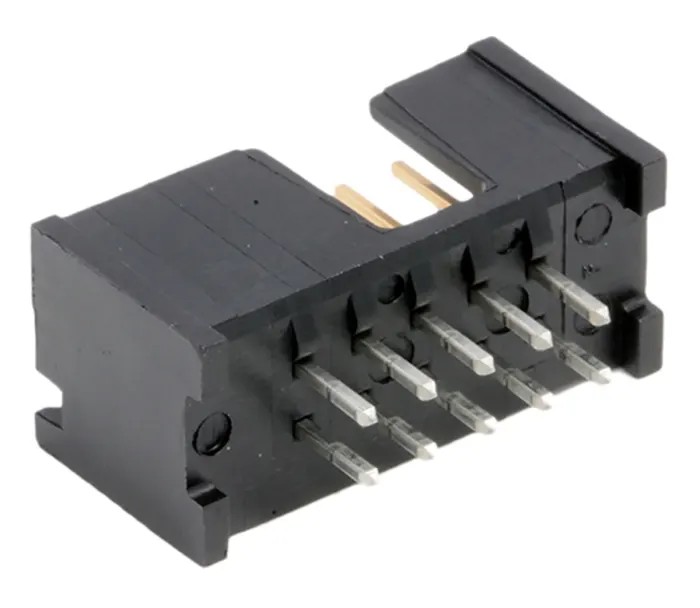

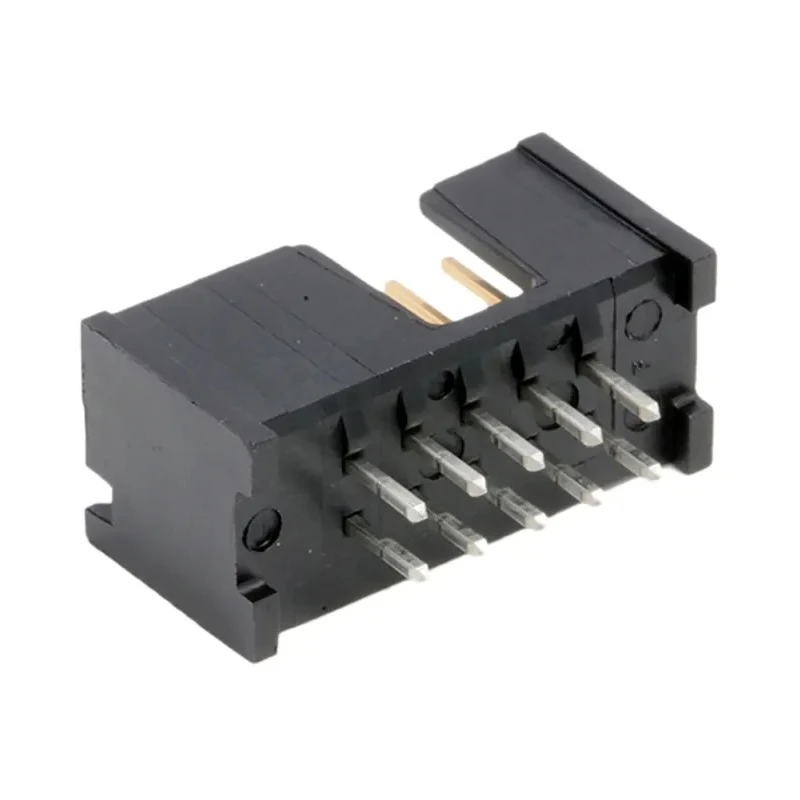

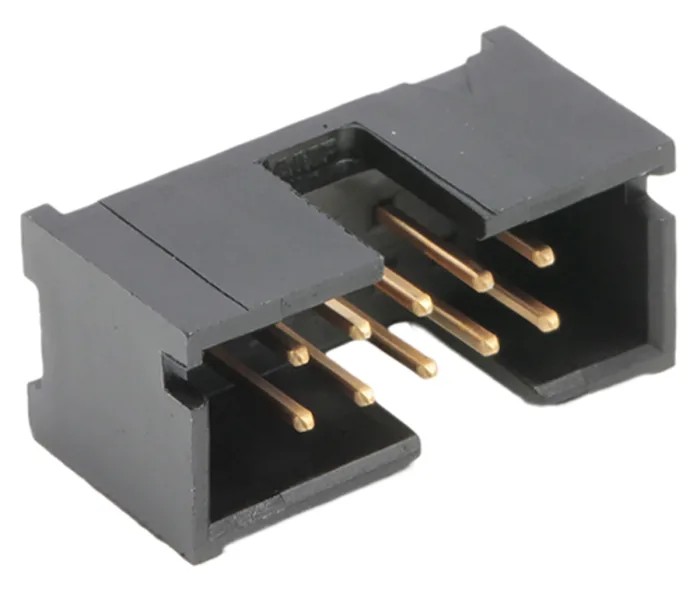

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5103309-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5103309-1

Name: TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5103309-1
Brand: TE Connectivity
SKU: 209707
Price: 2.26 USD
Availability: InStock



Category Electronics Components Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	AMP-LATCH
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a low profile 2-row design optimized for PCB mounting.
Constructed with flame retardant 94V-0 thermoplastic housing for safety.
Gold plated copper alloy contacts ensure reliable conductivity.
Kinked solder tails provide secure PCB termination.
Supports operating temperatures from -55°C to 105°C.
Shrouded design minimizes incorrect mating risks.
Suitable for industrial, medical, computing, and networking equipment.
Through hole mount type offers robust mechanical connection.

Product Description

TE Connectivity 5103309-1 AMP-LATCH Series Straight Through Hole PCB Header offers a refined solution for electronic assembly requiring secure and accurate wire-to-board connections. This 2.54 mm pitch, 2-row, 10-contact header features a compact low profile design suitable for a variety of industrial and commercial electronics.

The housing material is thermoplastic rated to flame retardant 94V-0 standards, ensuring durability and safety. Gold plated copper alloy contacts enhance electrical performance and corrosion resistance. The shrouded connector design helps prevent misconnections and secures mating with compatible IDC ribbon cable connectors.

This PCB header is specifically designed with board standoffs, which aid in the removal of excess flux during soldering, improving assembly quality. Kinked solder tails provide a firm and reliable mechanical joint to the PCB, increasing vibration resistance and assembly reliability.

Operating temperature range extends from -55°C to 105°C, making it suitable for a range of environmental conditions. The through hole mount ensures stable mechanical connection, suitable for demanding applications such as business equipment, medical devices, storage, networking, industrial controls, appliances, and electrical testing setups.

Low profile 2-row configuration for compact assemblies. Flame retardant 94V-0 thermoplastic housing for enhanced safety. Gold plated copper alloy contacts for reliable conductivity. Kinked solder tails for secure PCB soldering.

Wide operating temperature range from -55°C to 105°C. Board standoffs facilitate flux removal and improved solder quality. Shrouded to ensure correct mating and connector protection. Through hole mounting ensures solid mechanical attachment.

This AMP-LATCH series PCB header is ideal for precise, rugged connections in industrial, laboratory, computing, and electrical testing environments. Explore more connectors and related components to find complementary parts for your projects at EnvMart.
