TE Connectivity AMP CT Series Straight Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded 292132-5

Free Delivery in India | Lowest Global Shipping Charges

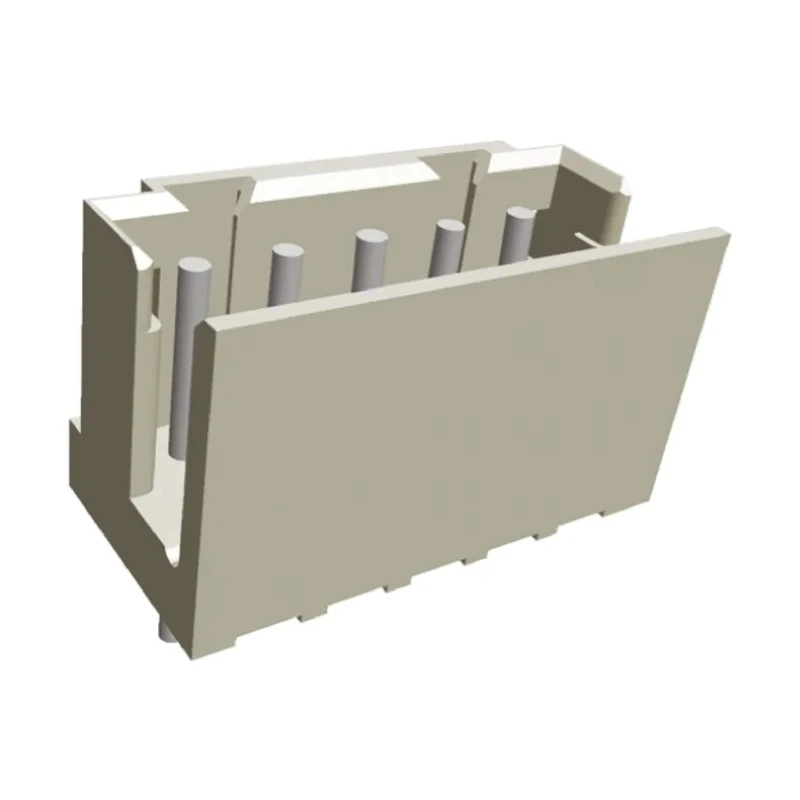

TE Connectivity AMP CT Series Straight Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded 292132-5

Name: TE Connectivity AMP CT Series Straight Through Hole PCB Header, 5 Contact(s), 2 mm Pitch, 1 Row, Shrouded 292132-5
Brand: TE Connectivity
SKU: 209523
Price: 0.66 USD
Availability: InStock



Category Electronics Components Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	125V
Brand	TE Connectivity
Orientation	Straight
Current	2A
Model	292132-5
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	AMP CT
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Miniature 2 mm pitch design optimizes PCB space.
Fully shrouded housing protects contacts from damage.
Polarization and mating retention ensure accurate and secure connection.
Kinked solder legs provide secure self-retention on the PCB.
Constructed with brass contacts plated in tin for reliable conductivity.
Nylon housing material offers durability and temperature resistance from -30°C to 105°C.
Supports 2A current at 125V operating voltage.
Suitable for industrial, business equipment, PCs, printers, audio, and air conditioning applications.

Product Description

TE Connectivity 292132-5 AMP CT Series Straight Through Hole PCB Header is a high-quality wire-to-board connector featuring 5 contacts arranged in a single row with 2 mm pitch. The connector is fully shrouded to protect the contacts from scooping and mechanical damage during mating and unmating.

Its miniature design allows efficient use of PCB space in compact electronic assemblies. The housing is made from durable nylon, suitable for operation between -30°C and 105°C, making it reliable in a wide range of industrial and commercial environments.

The brass contacts are plated with tin for excellent conductivity and corrosion resistance. Polarization and mating retention features guarantee a precise and secure connection to mating cable connectors, preventing improper insertion.

The solder termination features a kinked leg design that ensures secure self-retention during PCB assembly, facilitating efficient manufacturing and maintenance processes. This connector supports a 2 amp current rating at 125 volts, ideal for various electronics including business equipment, industrial machines, personal computers, printers, consumer audio devices, and air conditioning systems.

Miniature 2 mm pitch small form factor design. Fully shrouded housing prevents contact damage. Polarization and retention features for secure mating. Kinked solder legs for robust PCB retention. Brass contacts with tin plating ensure reliability.

Nylon housing provides stability under temperature extremes. Rated for 2A current and 125 V voltage. Through hole mount type for mechanical durability. Suitable for industrial, commercial, and consumer electronics applications.

The TE Connectivity AMP CT 2 mm interconnection system is well-regarded for its reliable wire harness making capabilities and is widely used in electronics manufacturing and assembly industries.
