TE Connectivity Die Cast Zinc Angled D-Sub Backshell Strain Relief 1-2308341-6

Free Delivery in India | Lowest Global Shipping Charges

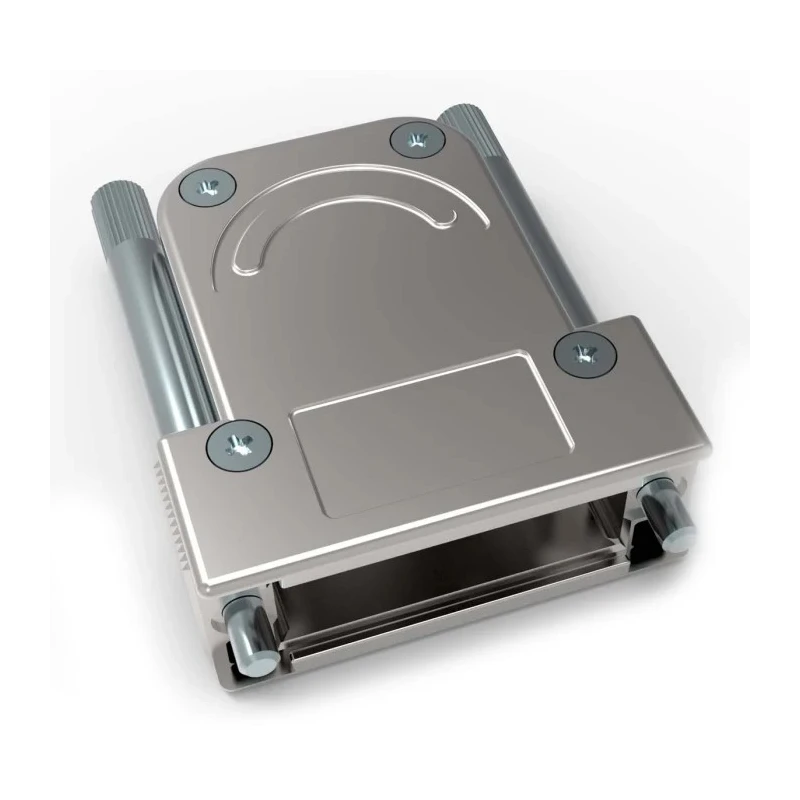

TE Connectivity Die Cast Zinc Angled D-Sub Backshell Strain Relief 1-2308341-6

Name: TE Connectivity Die Cast Zinc Angled D-Sub Backshell Strain Relief 1-2308341-6
Brand: TE Connectivity
SKU: 208966
Price: 76.31 USD
Availability: InStock



Category D-Sub Backshells Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Silver
Orientation	Angled
Housing Material	Die Cast Zinc
Interfaces	Ethernet
Connector Type D	D-Sub Backshell
D-Sub Shell Size	A
Housing Plating	Nickel

Key Features

The housing is made of die cast zinc with a nickel plating for durability and corrosion resistance.
It provides 360° EMI/EMC shielding making it suitable for EN50155 compliant systems.
Includes self-retaining assembly screws for easy mounting and reliability.
Features multiple cable exit angles including 225°, 180°, and 135° for design versatility.
Equipped with strain relief, available in crimp and screw options depending on cable diameter.
Ideal for harsh environment data systems and industrial Ethernet applications.
Designed specifically for use with D-Sub miniature connectors offering enhanced mechanical protection.

Product Description

TE Connectivity 1-2308341-6 Die Cast Zinc Angled D-Sub Backshell Strain Relief features a high-quality die cast zinc housing with nickel plating, providing excellent mechanical strength and corrosion resistance. Its angled design facilitates versatile cable routing with exit angles at 225°, 180°, and 135°, making it adaptable to various installation needs.

The product offers superior 360° EMI/EMC shielding suitable for use in rail systems compliant with EN50155 standards and other industrial Ethernet applications. The robust two-part die cast metal hood is secured with self-retaining screws ensuring a reliable assembly and long-term durability in demanding environments.

Strain relief is integrated into the design to protect cables from mechanical stress, available as either crimp strain relief or screw strain relief. For crimp strain relief, appropriate crimp flanges and barrels must be selected based on the cable's outer diameter, while screw strain relief uses specifically sized cable clamps for secure fastening.

This D-Sub backshell is well suited for harsh environment data systems, railway communication equipment, and various industrial Ethernet setups requiring rugged, shielded connectors to maintain signal integrity under vibration and mechanical load.

The housing material is die cast zinc with nickel plating for enhanced corrosion resistance. Its angled orientation supports flexible cable exit angles including 225°, 180°, and 135°. Provides full metal shielded rail protection with 360° EMI/EMC shielding.

Self-retaining assembly screws ensure fast and reliable installation. Includes strain relief options suitable for harsh and extreme vibration environments.

Set contains a single angled D-sub backshell designed for use with TE Connectivity miniature D-Sub connectors. This product is engineered for industrial, railway, and harsh environment applications demanding strong electromagnetic shielding and mechanical robustness.
