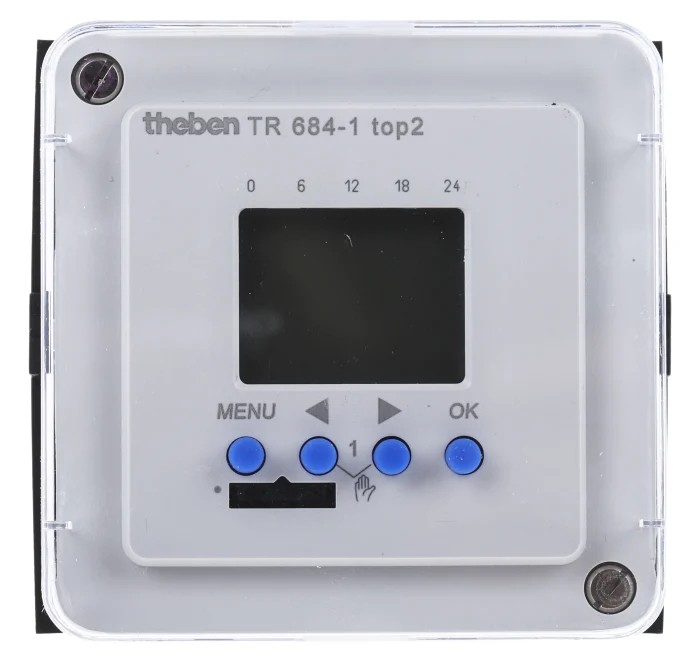

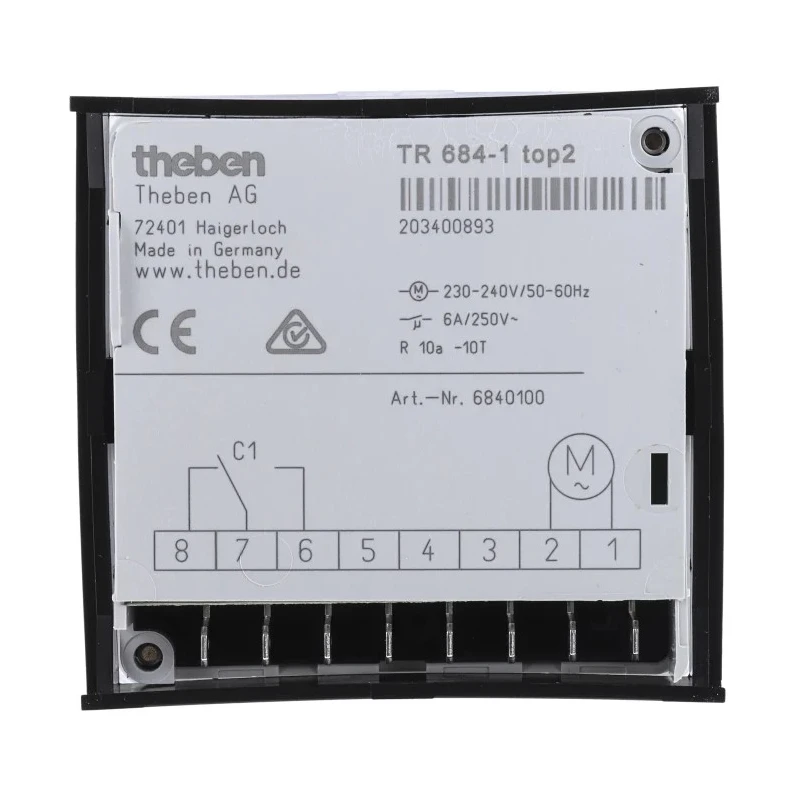

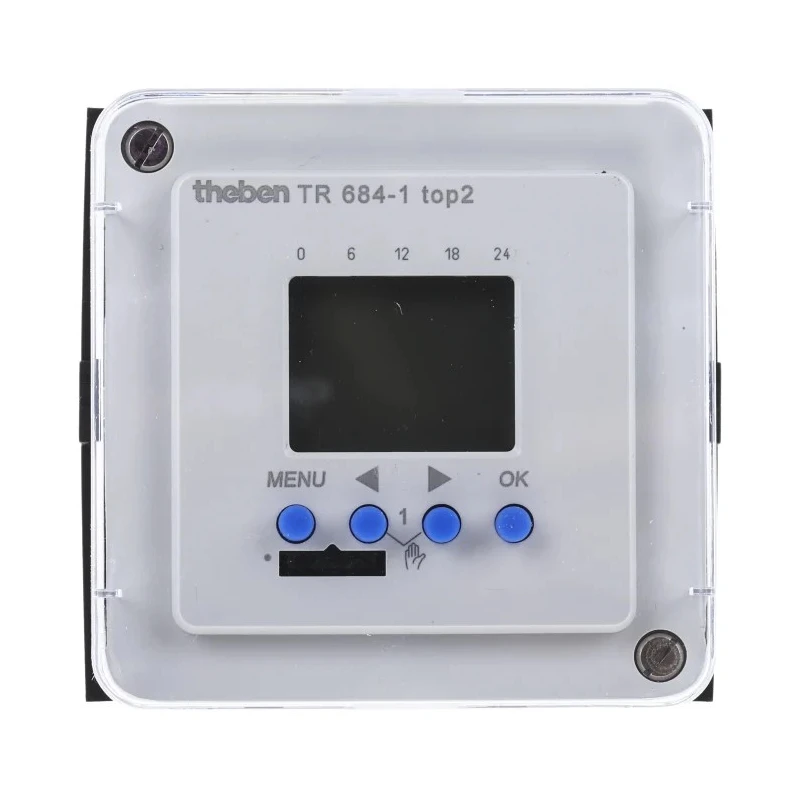

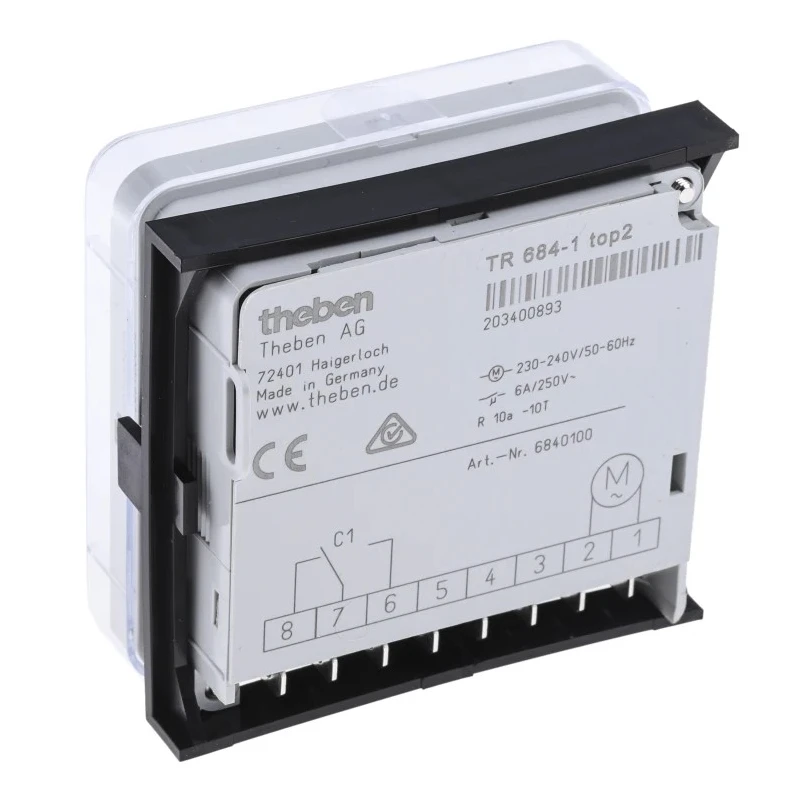

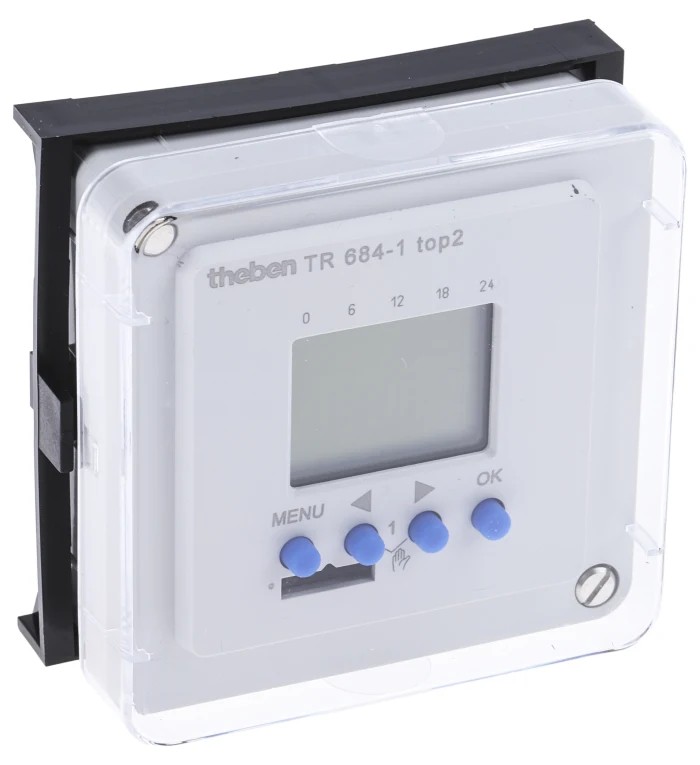

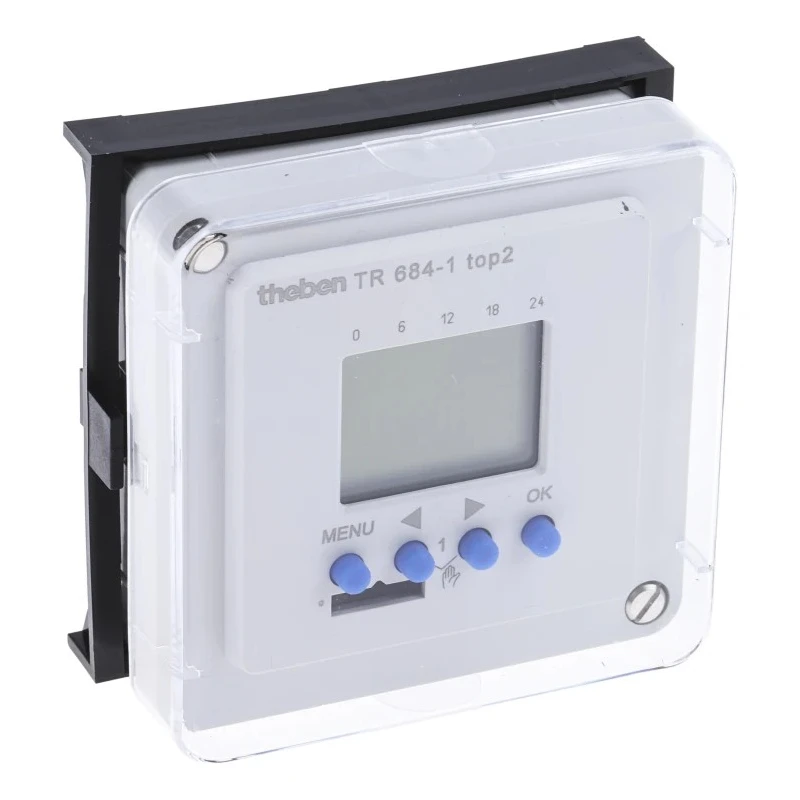

Theben Digital TOP2 Single-Channel Time Switch 240V AC with 56 Memory Spaces
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Theben |
| Battery Life | 10year |
| Height | 69mm |
| Model | TOP2 |
| Depth | 37mm |
| Series | TOP2 |
| Contact Configuration | SPDT |
| Sub Type | Digital |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Standards/Approvals | EN 60730-1 |
| Maximum Supply Voltage | 240V ac |
| Units Measured | Seconds, Hours, Minutes, Days |
| Memory Spaces | 56 |
| Segment Length | 1min |
| Danfoss Digital Time Switch 230 V ac, 1-ChannelBrand | Danfoss |
| Grasslin Digital Time Switch 230 V ac, 1-ChannelBrand | Grasslin |
Key Features
- Designed for on/off switching with manual override and switching preselection.
- Operates with a 240V AC maximum supply voltage and SPDT contact configuration.
- Features text-based operator guidance and an interface for OBELISK top2 PC programming.
- Includes automatic summer/winter time changeover and PIN coding for security.
- Compact with dimensions 69mm height and 37mm depth, suitable for installation in regulation and control systems.
- Backlighting available and can be turned off to save power.
- Integrates a holiday program and an hour counter for operation tracking.
- Complies with EN 60730-1 standard and is manufactured in Germany.
Product Description
Theben TOP2 TR684 - 1 top 2 digital time switch is a high-reliability, single-channel timer designed for industrial automation, electrical regulation, and control systems. Operating at 240V AC, it provides precise on/off switching with weekly programming capabilities and a robust lithium battery ensuring up to 10 years of power reserve.
This timer switch contains 56 programmable memory spaces enabling versatile timing configurations including seconds, minutes, hours, and days with a 1-minute segment length. Its SPDT (Single Pole Double Throw) screw terminal contact configuration allows for dependable electrical connectivity.
The device is compact with a height of 69 mm and depth of 37 mm, suitable for seamless integration into electrical panels or control gear. User-friendly text-based operator guidance is displayed, supported by a backlit interface which can be disabled to conserve energy.
Additional features include a practical holiday program, an integrated hour counter to monitor usage, switching preselection, and PIN coding to prevent unauthorized changes. The timer automatically adjusts for summer and winter daylight saving time changes, ensuring continued accuracy throughout the year.
The TOP2 series supports data transfer and programming via the OBELISK top2 memory card interface, enhancing installation and maintenance efficiency. Engineered and manufactured in Germany, this product meets the EN 60730-1 standard for automatic electrical controls.
Designed for reliable weekly programming with a user-friendly digital interface. Single-channel operation with high memory capacity for versatile scheduling. Secure operation via PIN code and automatic daylight saving adjustments.
Suitable for industrial automation, HVAC, process control, and building management systems. Manufactured to German standards ensuring quality and durability.
This digital time switch from Theben is ideal for precise time control in industrial, commercial, and building automation applications. For additional product options, consider browsing the entire category of Time Switches available on EnvMart.
